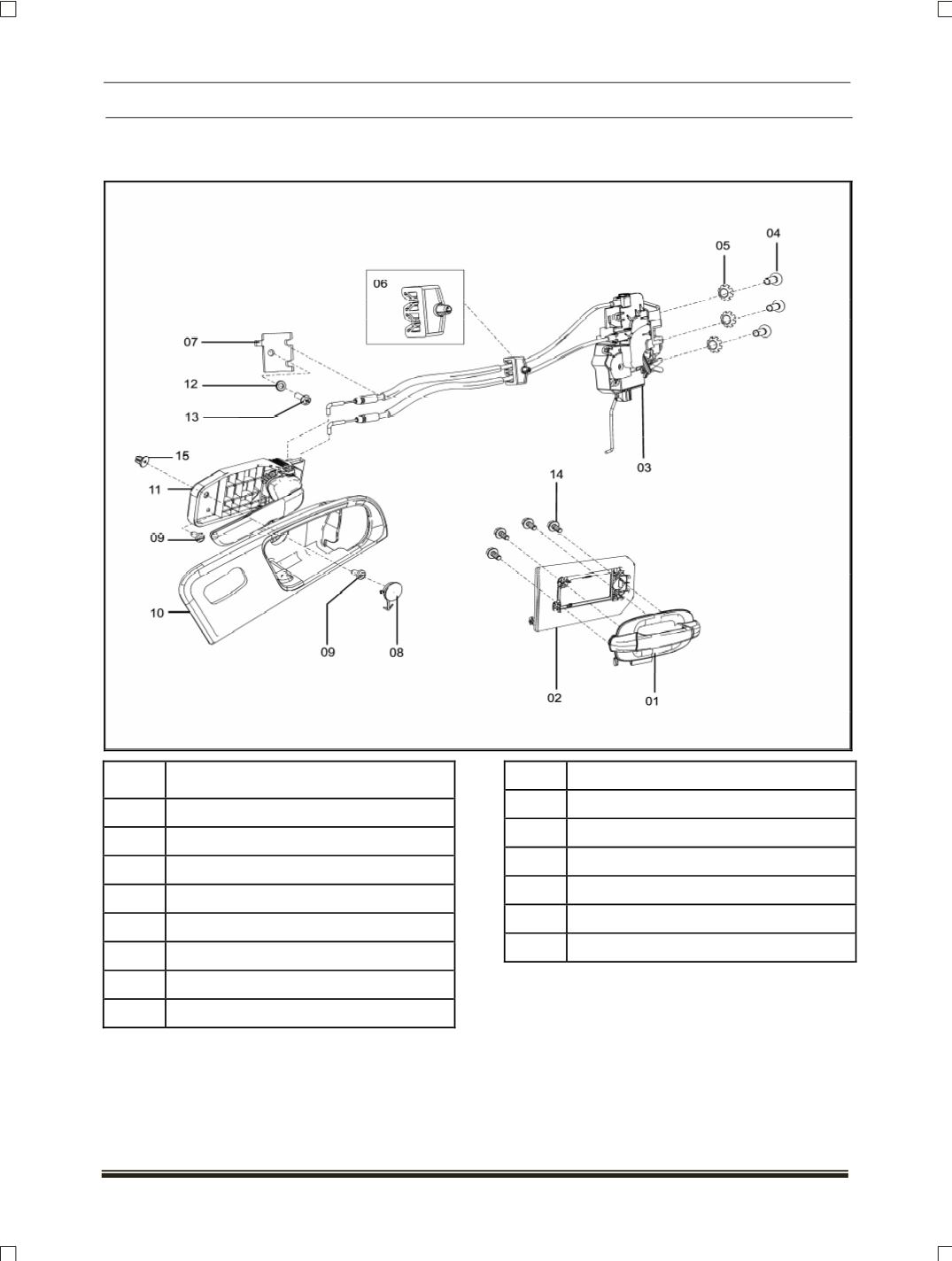

9.2.17 REAR OUTER DOOR LOCK
CONSTRUCTIONAL DETAILS
SR.
NO. DESCRIPTION
01
Bezels assembly rear
02
Back plate assemblies rear
03
Assembly latch rear door
04
Screw M6X16 4.8H
05
M-T lock washer C6.4
06
Two pipe clamp
07
Cable guide bracket rear door
08
Screw cap
09
Tapping screw C-ST4.8X13
10
Assembly door release handle
11
Assembly handle interior front door
12
Bright washer 5.3
13
Cress pan headed screw M4X12
14
Hexagonal flange screw M6X14
15
Screw grommet M4
