ELECTRICAL
8
4. For removal first remove the cabin fuse box and follow the reverse procedure

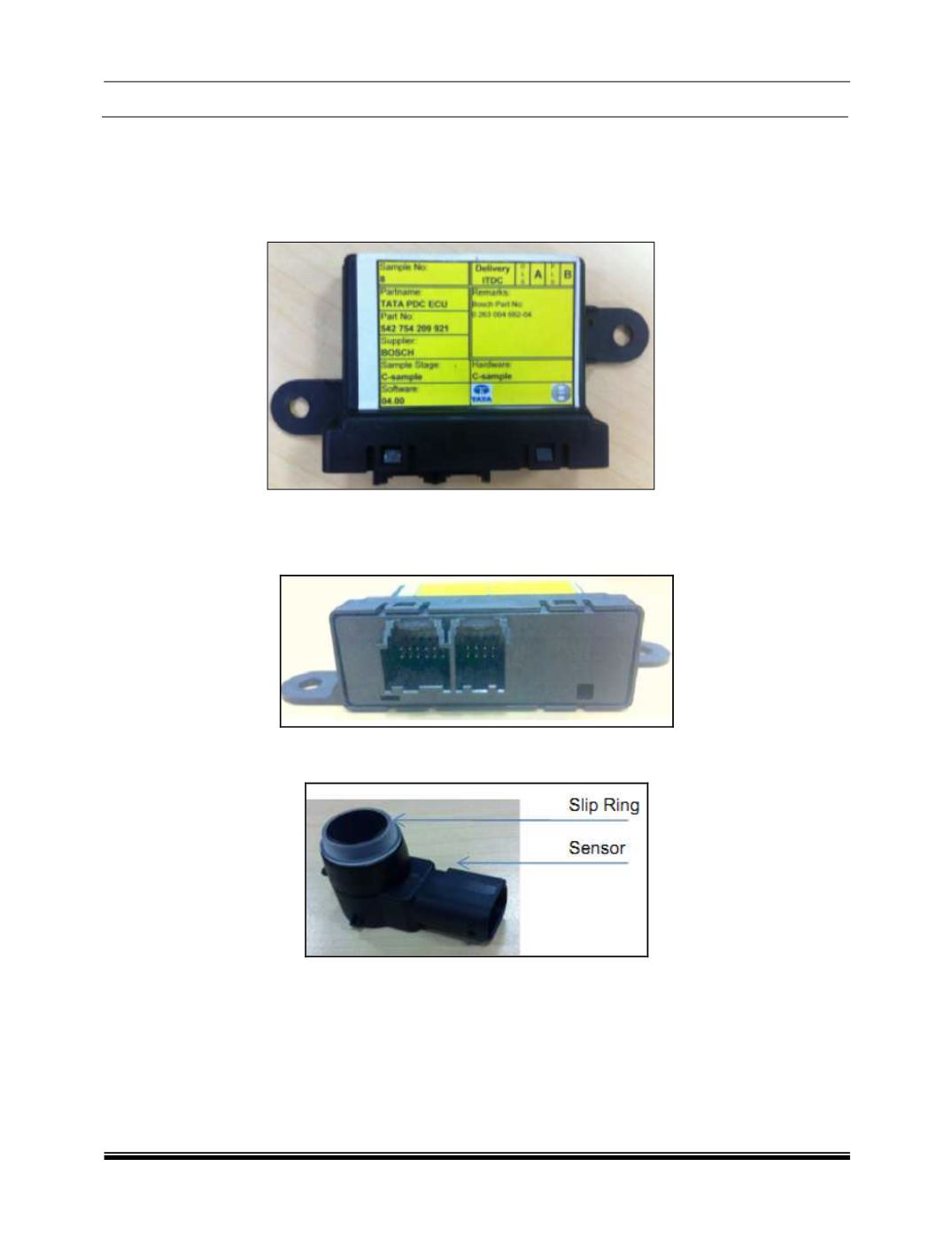

18. Physical Images
PDC ECU front view:
PDC ECU component connector side view:
PDC Ultrasonic Sensor View:
