ELECTRICAL
41
12.8.8 TAIL LAMP
Tail lamp consists of the following bulbs:
1. Turn indicator
2. Reverse
3. Tail/Stop light
It is fitted on D pillar.

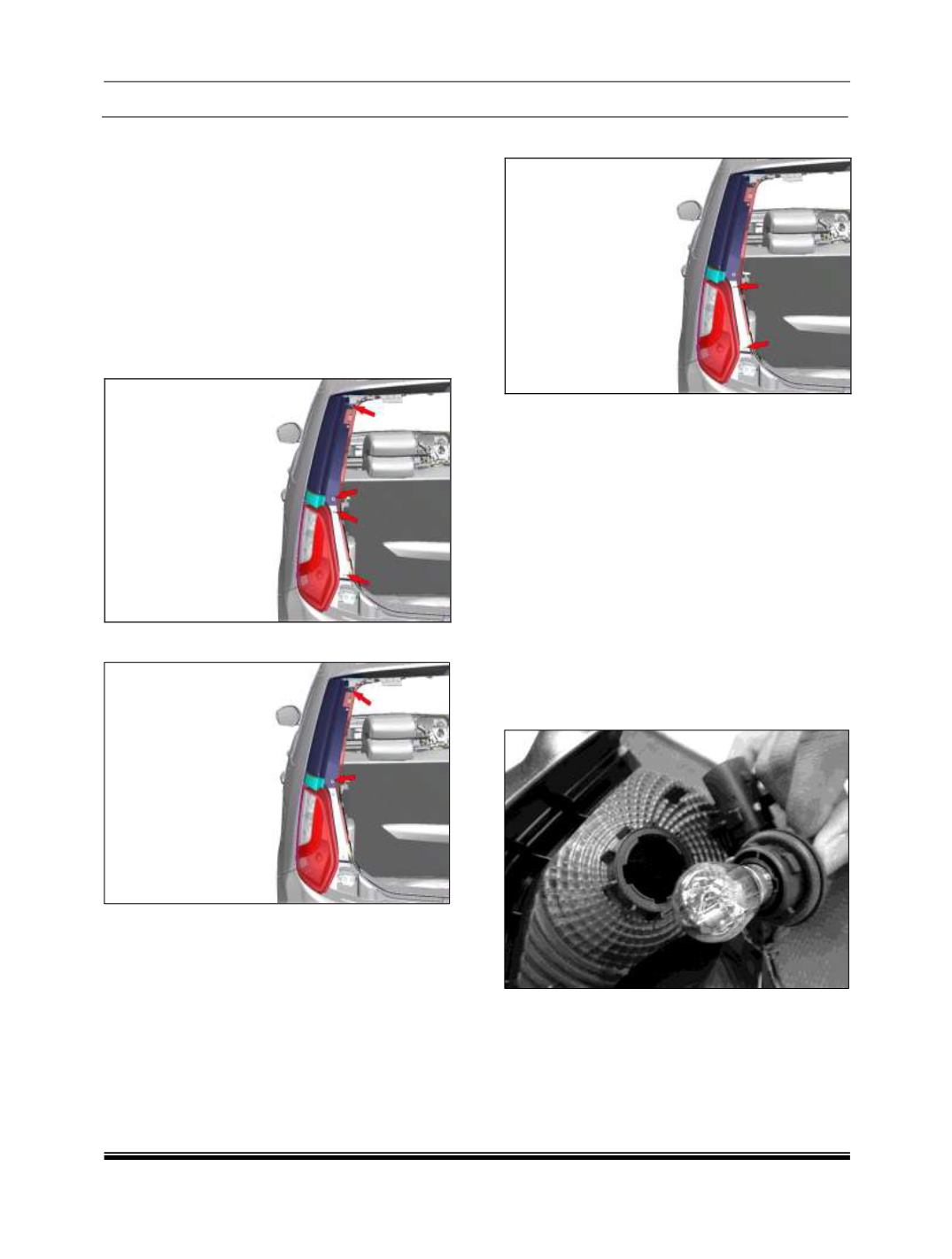

REMOVAL AND REFITMENT OF TAIL LAMP
REMOVAL
1. Remove Tail lamp fastener:
2. Remove Tail lamp top from locating point.
3. Remove bottom tail lamp from locating point.
REFITMENT:
1. Connect the connector first and locate bottom
tail lamp at its proper place & fix the fasteners.
After insertion in the grommet.
2. Locate tail lamp top at its proper place & fix the
fasteners after insertion in the grommet.
REPLACING TAIL LAMP BULB:
1. Make sure lighting stalk is in ‘OFF’ position.
2. Remove the tail lamp: refer "Removal &
Refitment of tail lamp".
3. Rotate and pull out the socket with bulb to be
replaced.
4. Carefully remove the fused bulb from the
socket by rotating and pulling it.
