BODY

29

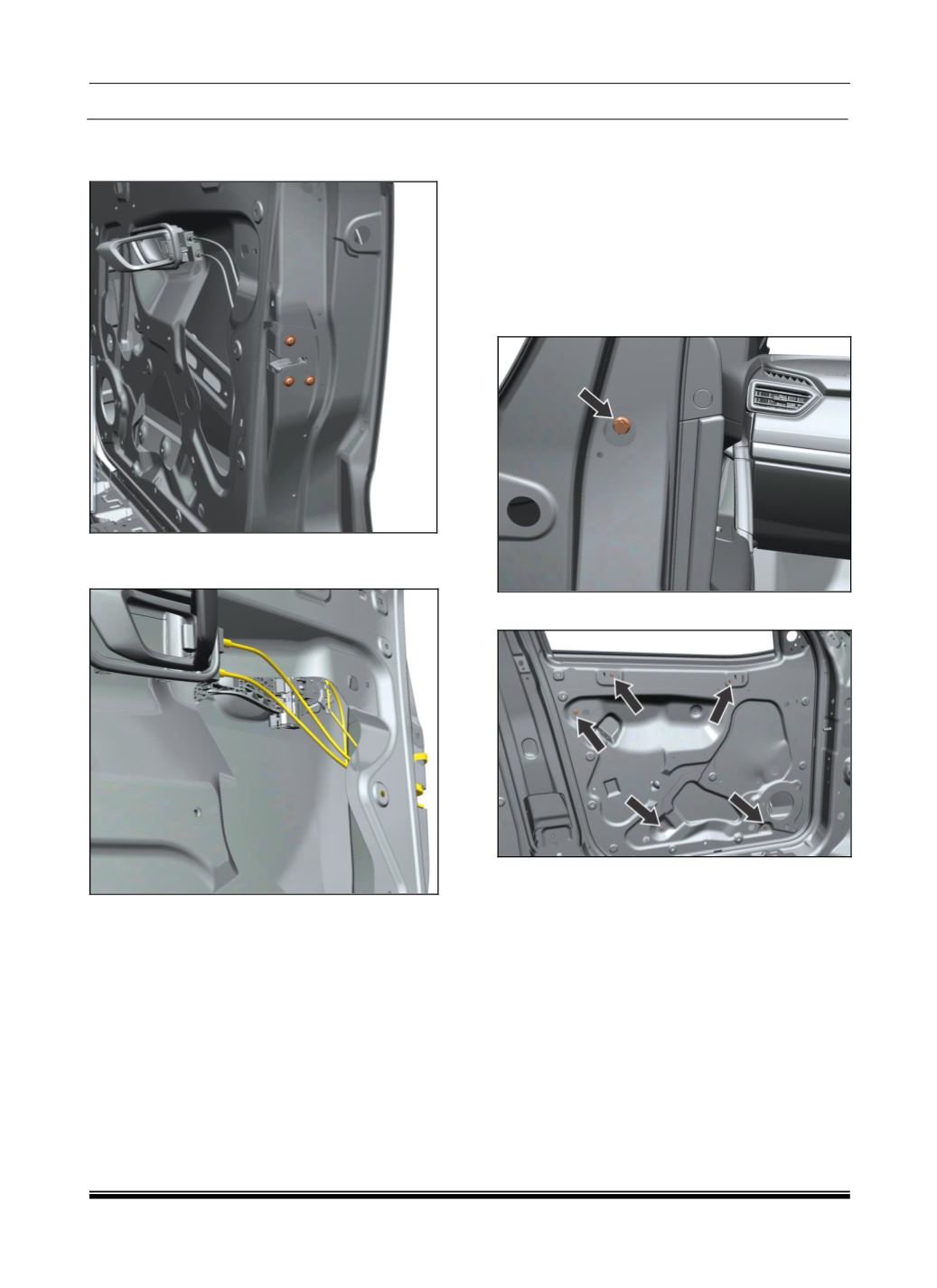

6. Loosen and remove three door latch mounting

screws.

7. Disconnect the link between lock barrel and

latch from the lock barrel end.

8. Remove the door latch.

FITMENT

For fitment follow reverse procedure of removal.

1.4.14 FRONT DOOR GLASS AND WINDOW

WINDING MECHANISM

REMOVAL

1. Before starting to remove first lower the

window glass.

2. Remove the door trim.

(For procedure refer

door trim removal procedure.)

3. Open the front door and loosen and remove

mounting screw of the outer belt.

4. Loosen the window winding mountings.
