KRYOTEC ENGINE
168

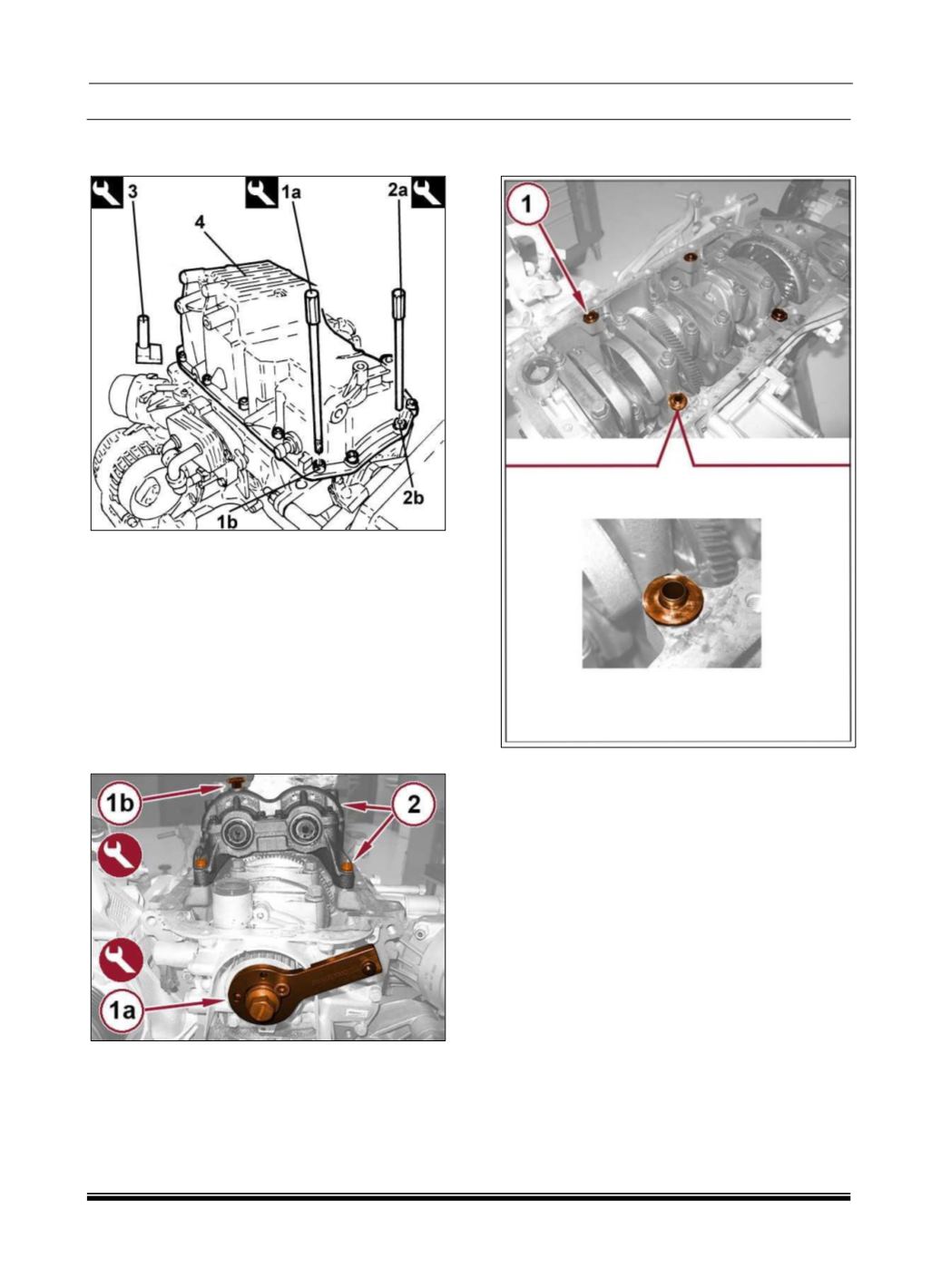

58. Using the 1860834000 tool (1a) remove the
side screws (1b).
59. Using the 1860833000 tool (2a) remove the
timing side and gearbox side screws (2b).
60. Use the 1870718000 tool to cut the sealant
along the perimeter of the engine oil pan.
61. Remove the oil pan.
62. Carefully clean the contact surfaces between
the crankcase and oil pan.
63. With the 2000003000 tool fitted previously (1a)
install the 2016000090 tool (1b) to lock the balance
shaft in a timed position.
64. Remove the bolts and the balance shaft module
(2).
65. Remove the spacers (1) and check the
condition of the locating dowels.
