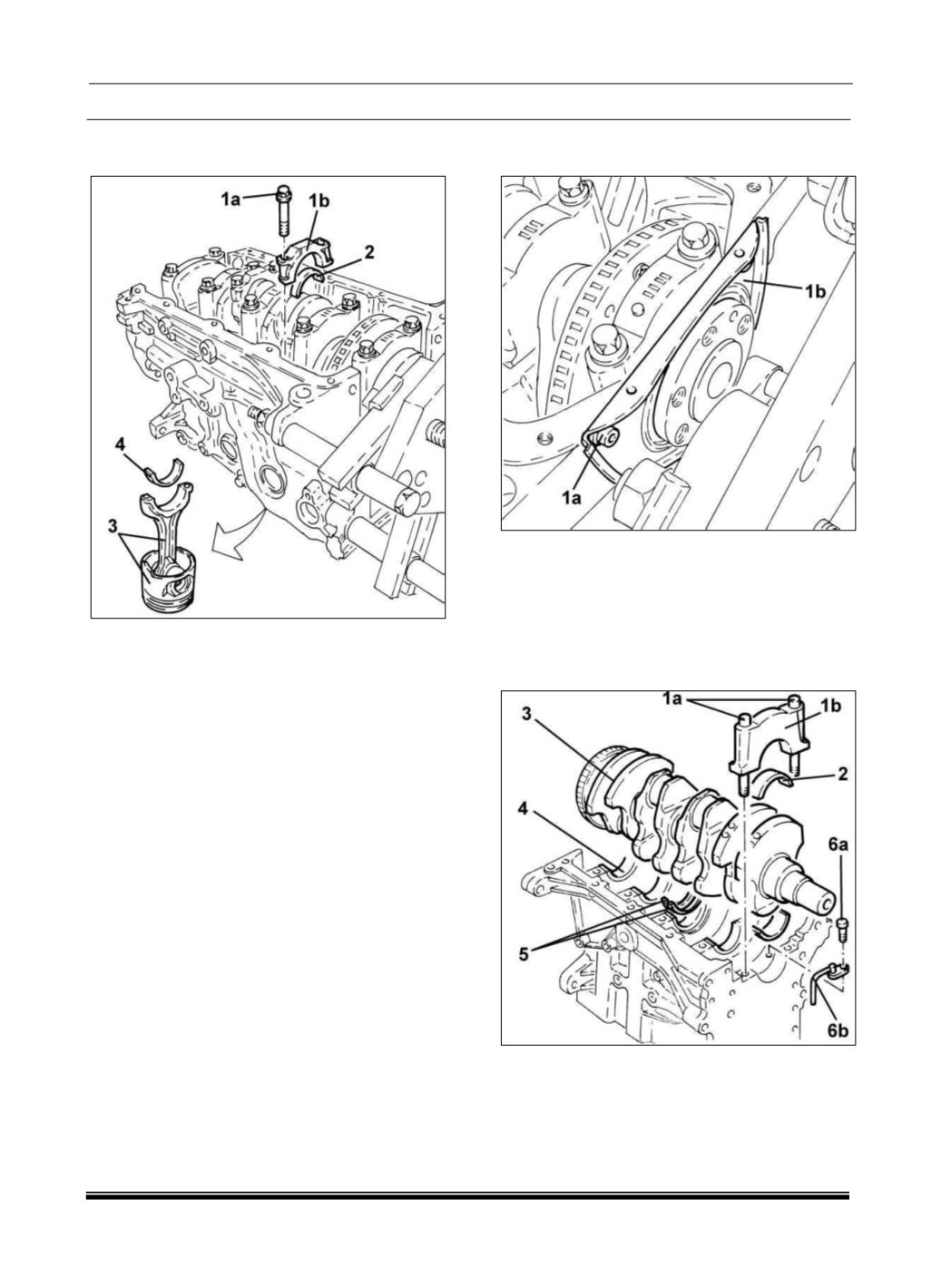

13. Remove the screws (1a) and remove the rod
cap (1b).
14. Remove the lower connecting rod bearing (2).
15. Remove the connecting rod and piston (3).
16. Remove the upper connecting rod bearing shell
(4).
17. Repeat the procedure for removal of the pistons
and connecting from the remaining cylinders.
18. Remove the crankshaft rotation tool.
19. Remove the screws (1a) and the rear
crankshaft oil seal retainer (1b).
20. Check the crankshaft end play using a
magnetic base fitted with a dial indicator. If the
crankshaft end play is not within the required value,
adjust the thickness of the crankshaft thrust
bearings (Refer to 09 - Engine/ Specifications).
21. Remove the screws (1a) and the bearing caps
(1b).
22. Remove the lower bearing shells (2).
23. Remove the crankshaft (3).
24. Remove the upper bearing shells (4).
25. Remove the thrust bearings (5).
