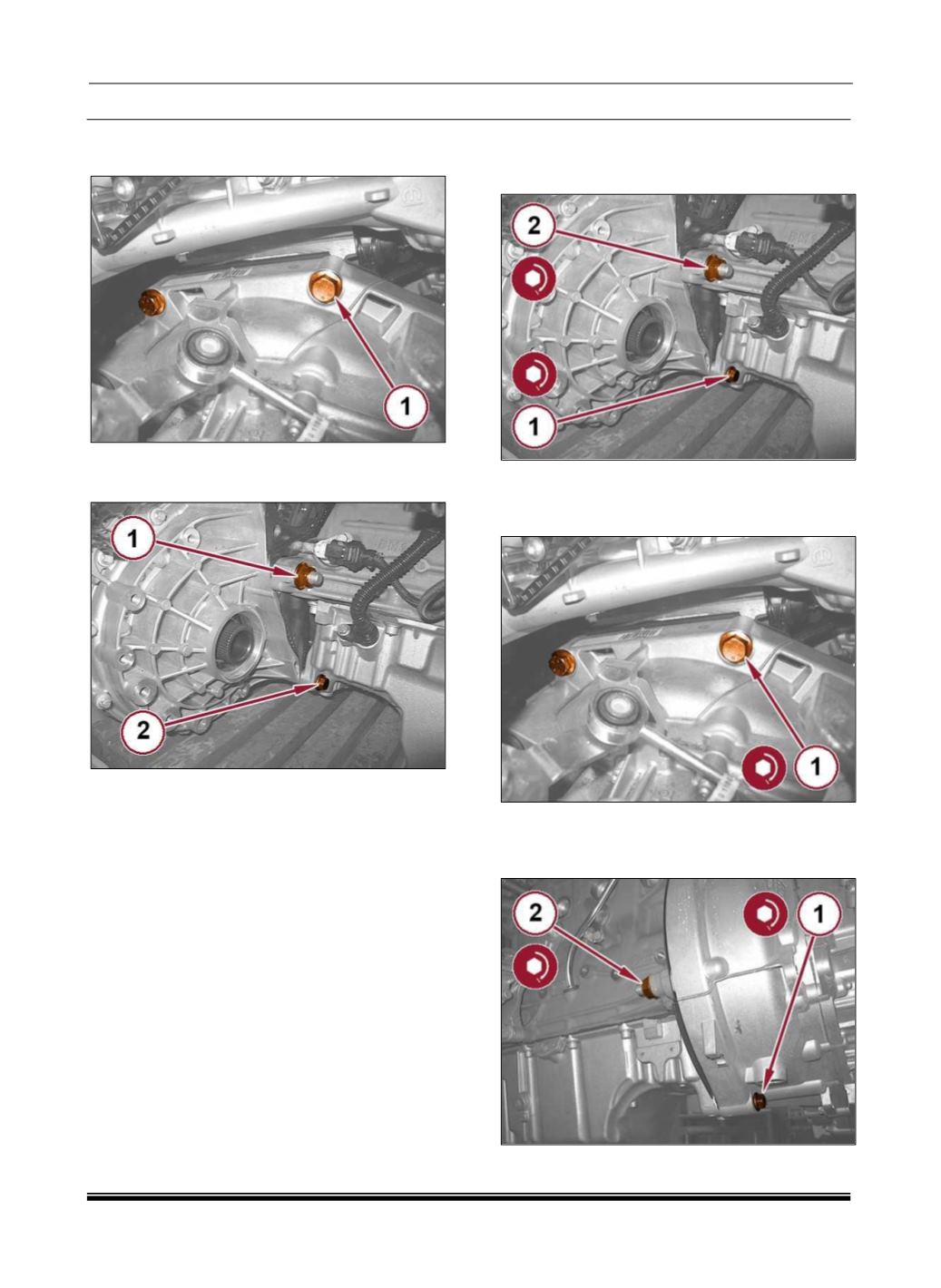

19. Remove the upper transmission to engine
block bolts (1).
20. Remove the nut (1) from the engine block to
transmission stud, intake side.
21. Remove the oil pan to transmission bolt (2),
intake side.
22. Remove the transmission from the engine.
23. Remove the flywheel dust cover.
FITMENT
1. Install the flywheel dust cover and transmission
to the engine.
2. Install the intake side oil pan to transmission bolt
(1).
3. Install the nut (2) on the intake side transmission
to engine block stud and tighten to the proper
torque specification (Torque Specifications).
4. Install the upper transmission to engine block
bolts (1) and tighten to the proper torque
specification (Torque Specifications).
5. Install the exhaust side transmission to oil pan
bolt (1) and tighten to the proper torque
specification (Torque Specifications).
6. Install the exhaust side nut (2) on the
transmission
