NEXON EV
X114H
DTC Troubleshooting Data
Version: 1.0
Date: 11-12-2019
`
11
Author: Prashant Ghadigaonkar/ Samir Tikhe
Copyright © TATA MOTORS Ltd.
This document must not be used in anyway, such as copying and redistributing to third parties, without the consent of author.
DTC
’
s confirmation:-
After rectification, ensure the following points by referring E-drive parameters using TML
diagnostic tool before handing over to customer.
a) Check the HV Voltage of the system If it showing in-between Desired voltage range.
b) Check the torque value
c) Check whether the vehicle runs properly in Forward and reverse direction

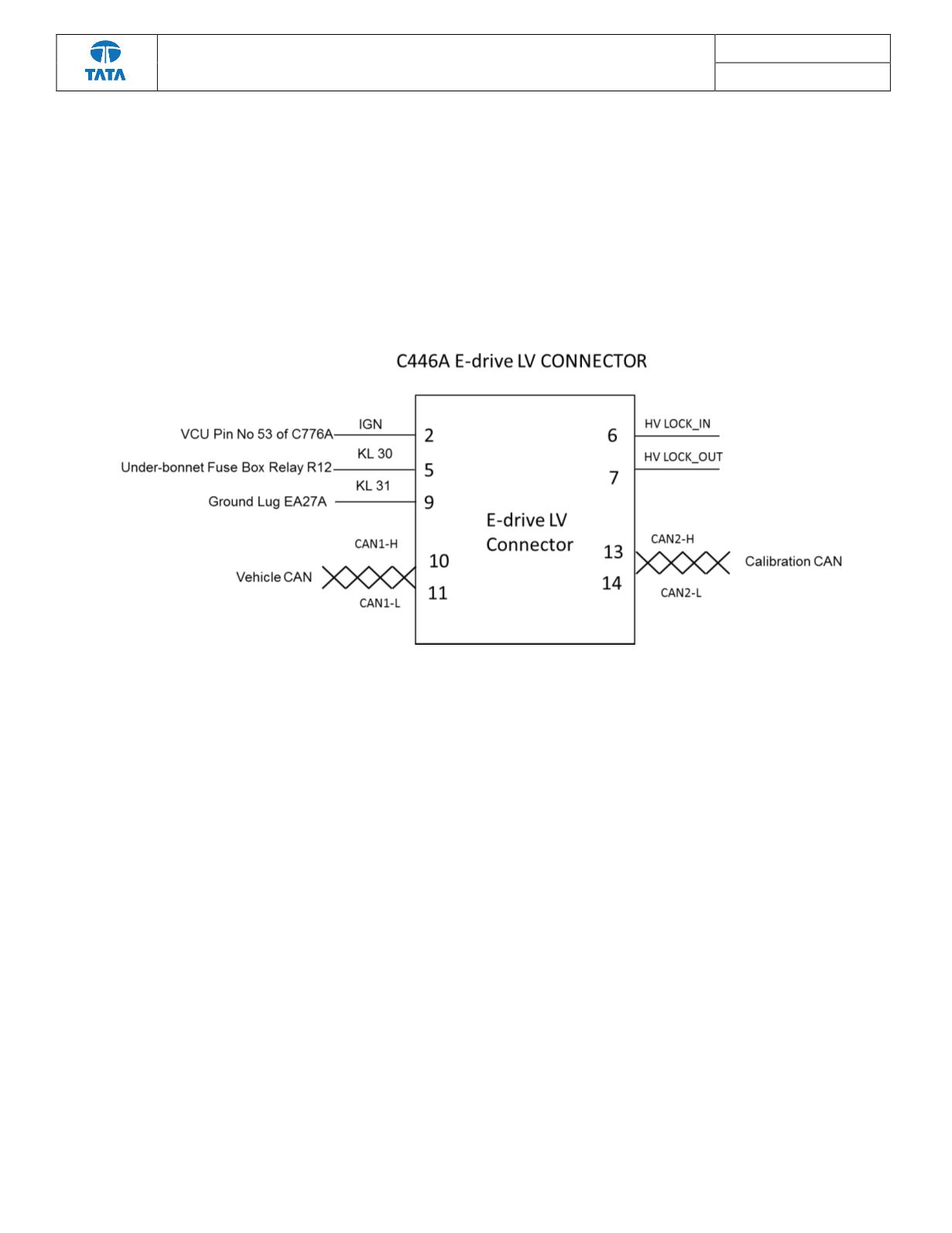

Schematic Block Diagram:-
Refer the LV schematic for more details
