NEXON EV SERVICE MANUAL

672 / 801

NEXON EV X114H: DTC Troubleshooting Document for BMS
Version: 3.0
Date: 01th July 2020
Copyright © TATA MOTORS Ltd.
This document must not be used in anyway, such as copying and redistributing to third parties, without the consent of author.
APPENDIX-A: COMPONENT DETAILS AND INFORMATION
Place images of LV and HV connector. Show MSD location. Explain functionalities.

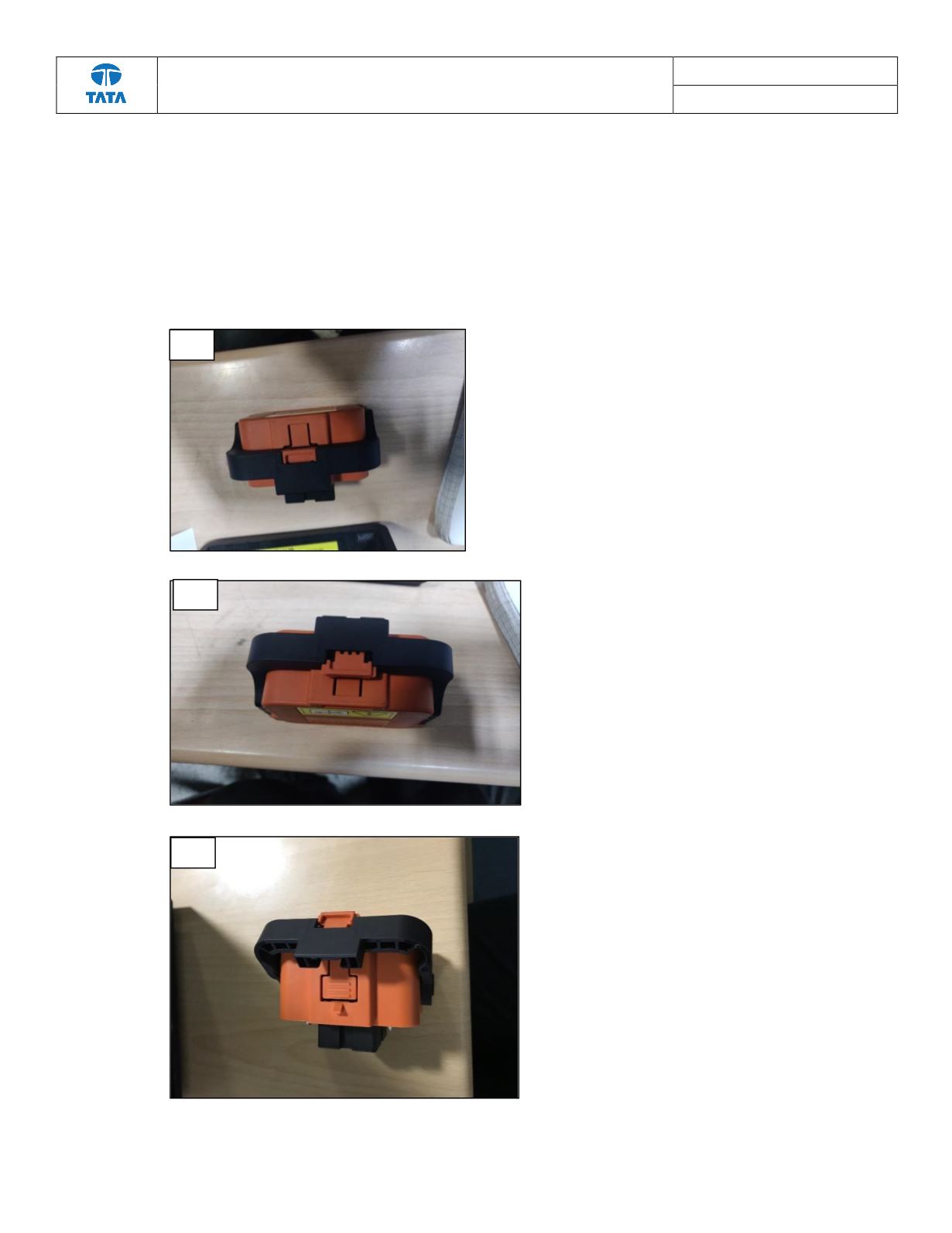

APPENDIX-B: MSD DISCONNECTION PROCEDURE
4- step procedure for removing MSD:
1. Pull back the lever lock of MSD so that the lever is free to open.
2. Pin underneath the MSD to be pushed in while removing the lever.
3. Pull out the lever partially
1.
2.
3.
