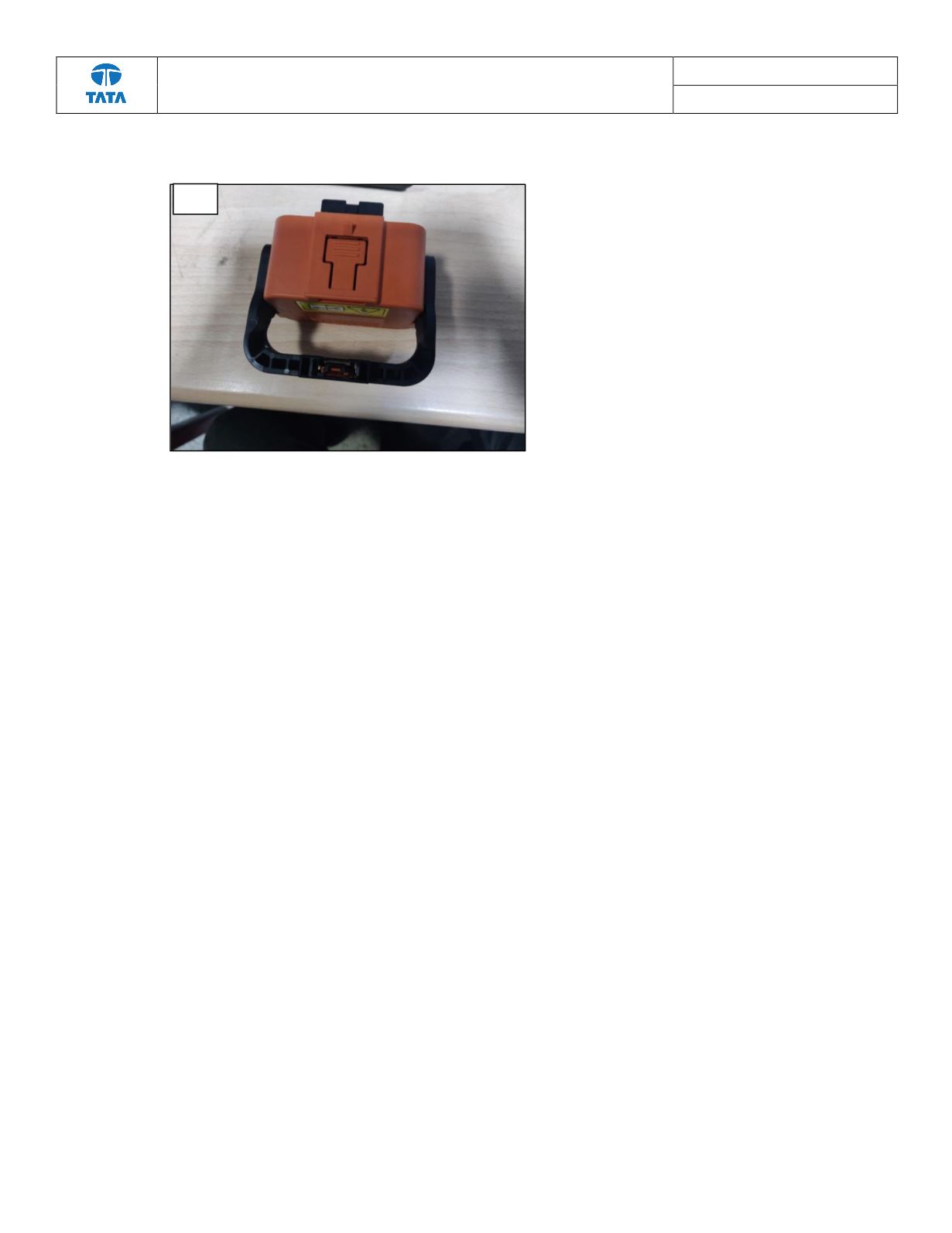

4. Lever to be pulled completely, MSD is dislodged from the connector. Now it can be removed with

hand.

Additional Instructions:



MSD does not require substantial force to be removed from the battery. Hence, the lever should

not be pulled out by force and the 4 step procedure has to be adhered to.



In case of dirt accumulation on the lever, MSD’s pivot can be sprayed on with water to loosen the

lever.



MSDs are not interchangeable and the MSD of a battery pack has to be retained with the same

pack throughout the pack’s usage. Only in case of failure of the MSD should it be replaced with a

new MSD.

APPENDIX-C

: TOOL CONNECTION AND COMMUNICATION
