NEXON EV
X114H
DTC Troubleshooting Data
Version: 3.0
Date: 27-May-2020
`
7
Author: K Tejaswini Manasa/ Navya Krishnan/Gaurav Jha
Copyright © TATA MOTORS Ltd.
This document must not be used in anyway, such as copying and redistributing to third parties, without the consent of author.
3
Check for DC-DC converter output over voltage
fault (above 16.5 V) while the gun is connected.
Is DC-DC
Converter fault
code P130025
present?
Refer DC-DC Converter
Troubleshooting
document for fault code
P130025 and go to step
1.
Go to step 4
4
Check for fault code again.
Fault code
P220017 is
present?
Replace the OBC
Repair
completed
DTC’s confirmation:-
After rectification, ensure the following points by referring OBC parameters using TML diagnostic tool before
handing over to customer.
a) Check whether the OBC can respond to the vehicle charging command by observing the Charge ON indicator
lamp on the cluster.

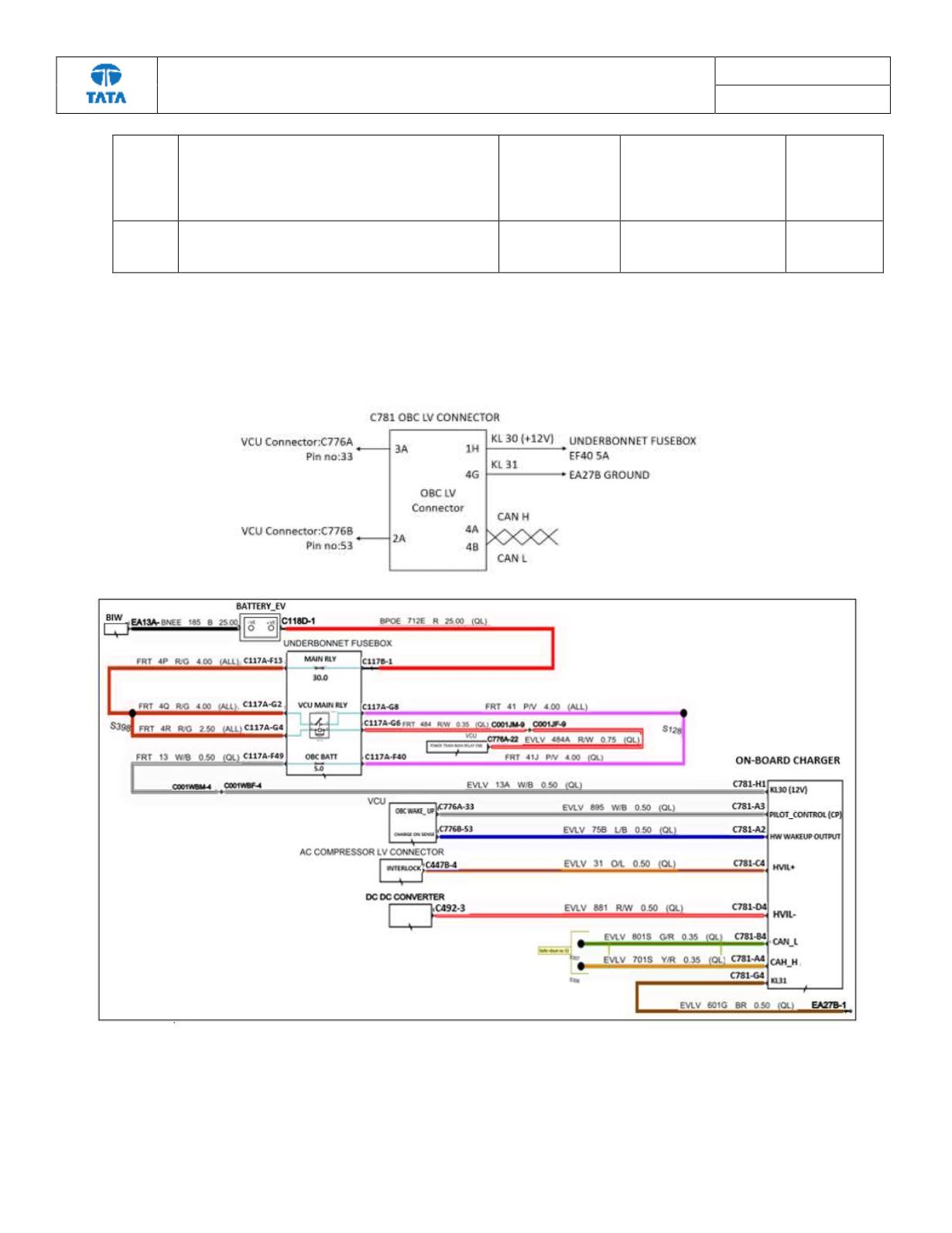

LV Schematic & Block Diagram:-
LV Schematic
:-
Component & Connector Location (On Vehicle) Image:-
View from front side
