BODY
64

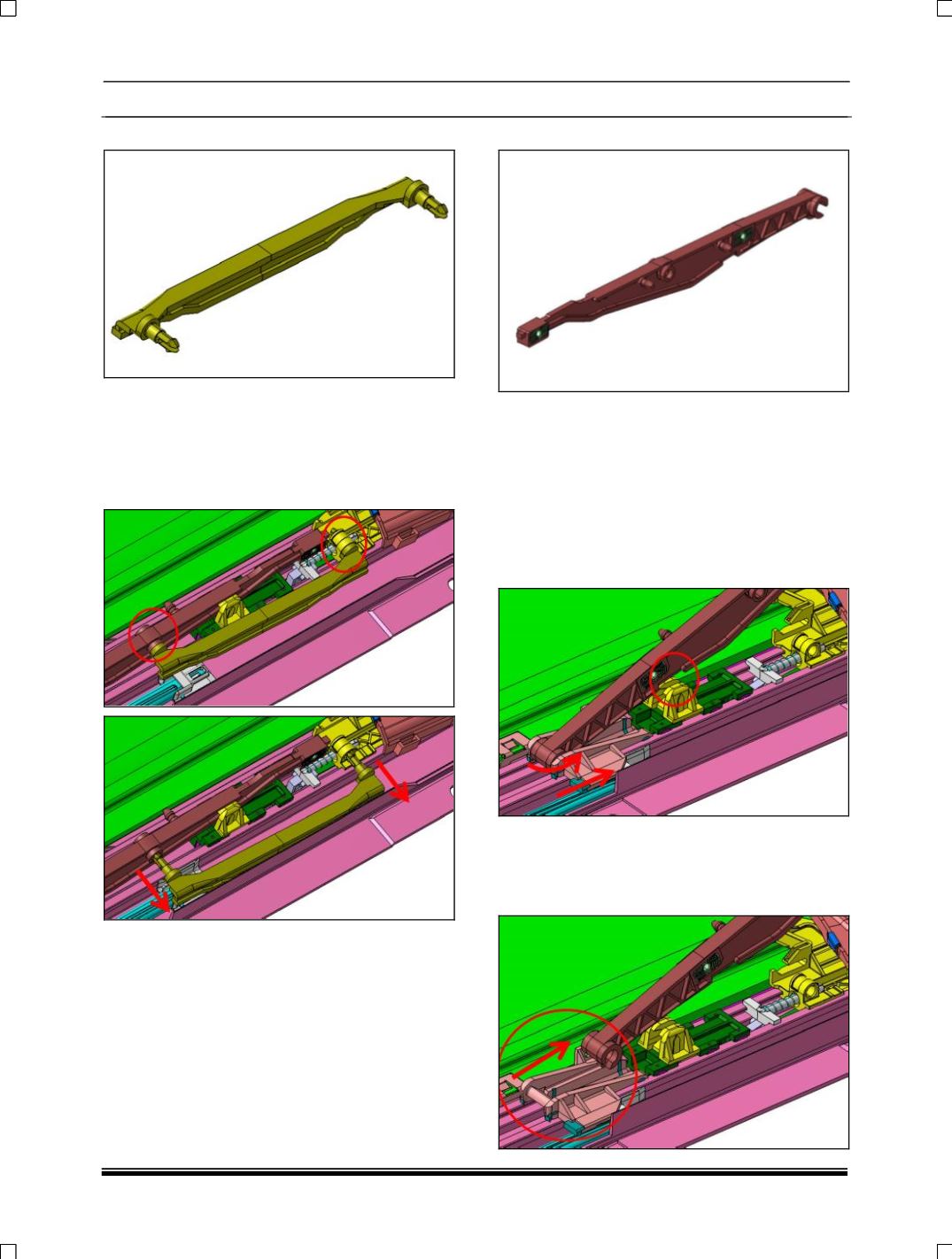

7. CONNECTING PART
REMOVAL
1. Remove sunroof.
2. Remove Glass Panel from Sunroof.
3. Unlock Connecting part snaps on both the sides
and Pull it the direction as shown.
NOTE
Observe the Connecting part orientation before
removal; label and mark if necessary.
FITMENT
For fitment follow the removal procedure in
reverse.
8. COLISSA GUIDE ASSEMBLY
REMOVAL
1. Remove sunroof.
2. Remove Glass Panel from Sunroof.
3. Remove connecting part.
4. Slide front guide along guide Rail till Colissa
reaches the cut-out provided to disassemble.
Rotate it along the hinge to lift it from Rear
Guide.
5. Unlock the Hinge snap from the front guide by
pulling in the Direction as shown. Remove the
Colissa guide from Mechanism.
Slide, Rotate & unlock hinge snap.
