WARNING
Do not operate sunroof after removing glass panel
from the Vehicle, it will damage the rear water
channel and lead to severe mechanism damage.
FITMENT
For fitment follow the removal procedure in
reverse.

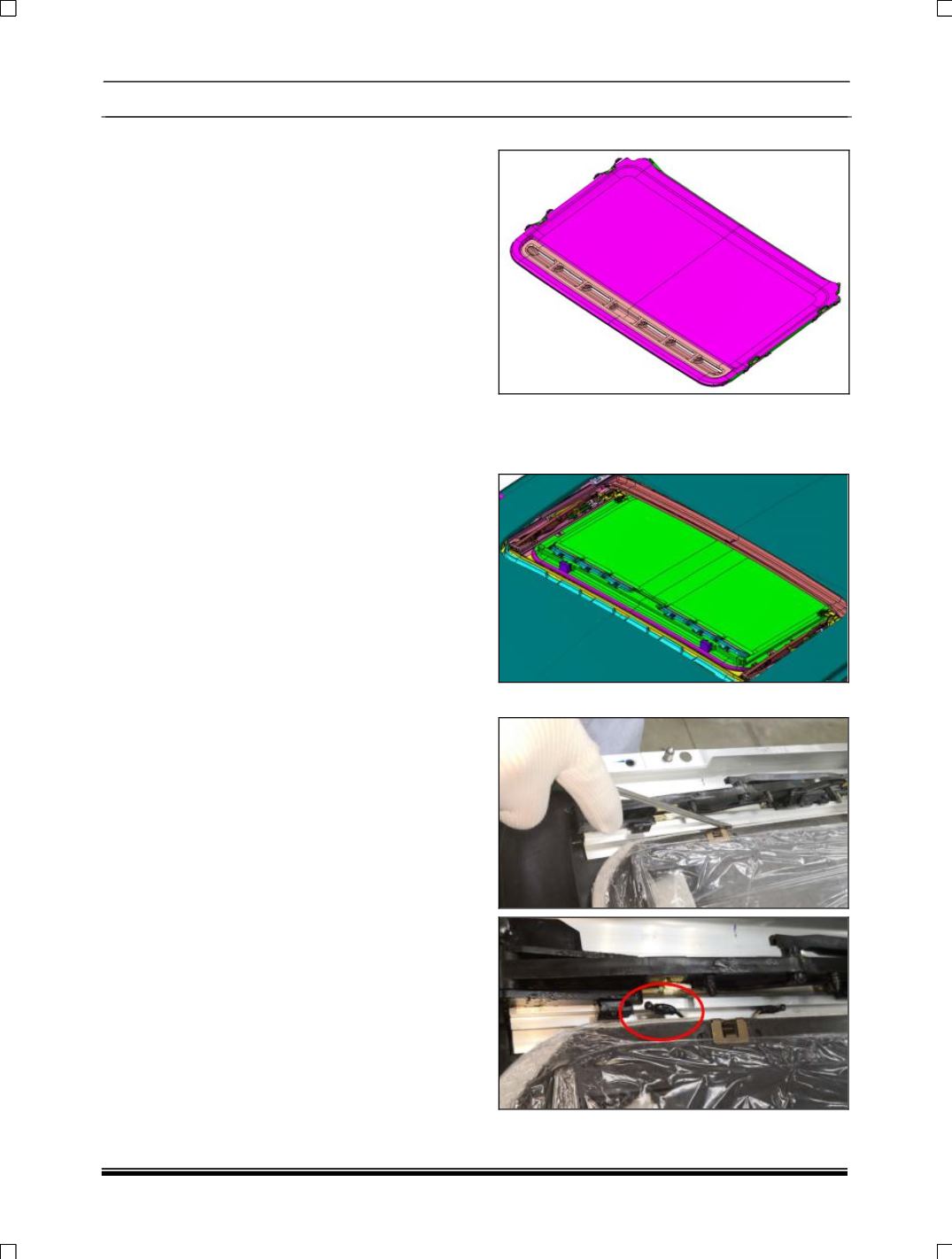

GLASS PANEL ADJUSTMENT
FRONT
Adjust the front of the glass panel by loosening the
Four (4) M5 screws on the either side. Adjust the
glass panel so the front edge is between 1mm
higher or flush with the roof ring and tighten the
screws.
3. SUNSHADE
REMOVAL
1. Remove the glass panel. (Refer glass panel
removal procedure).
2. Manually operate the sunshade to slide front.
