513 / 801
BODY
69

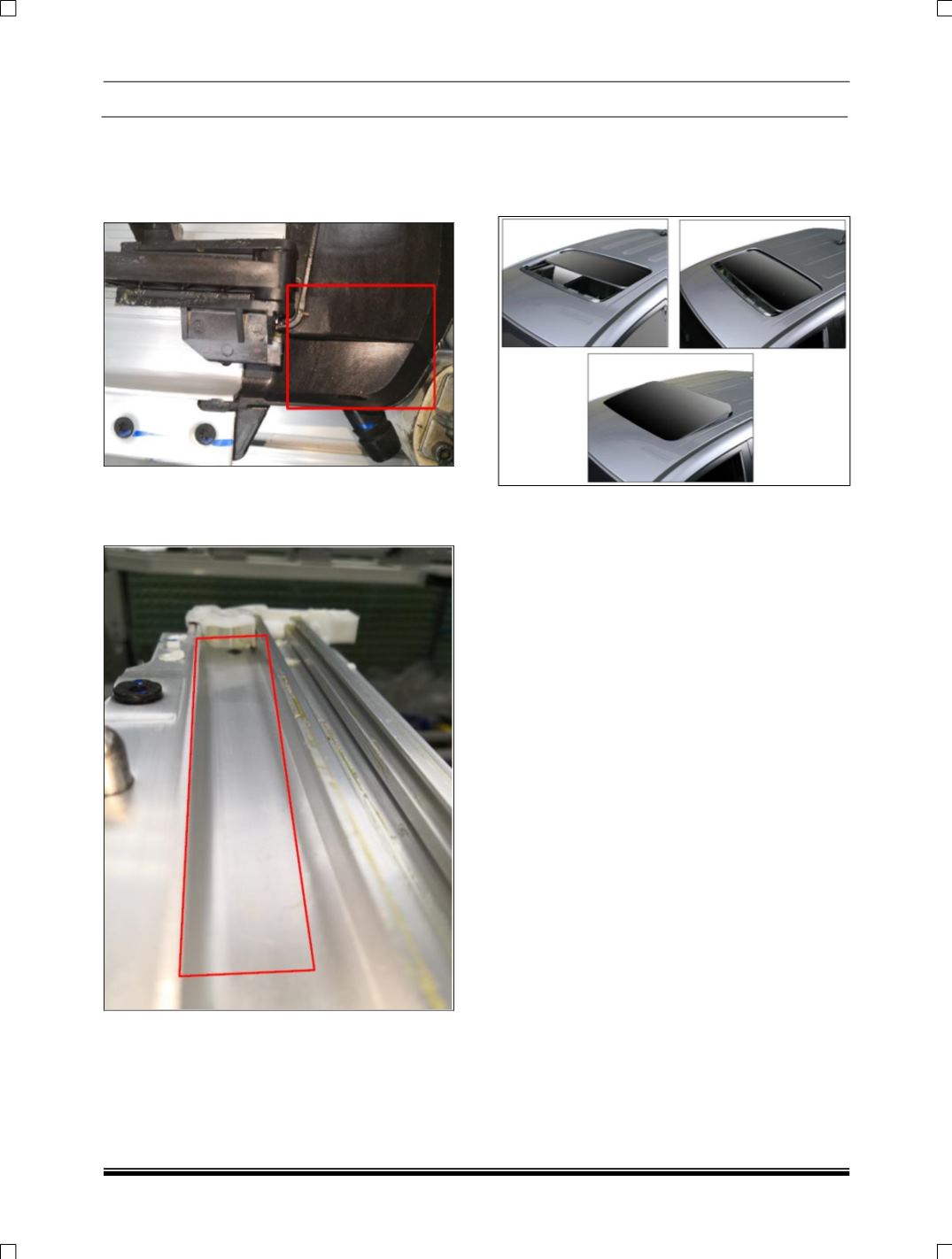

13. WATER CHANNEL MAINTENANCE
1. Open Glass panel
2. Inspect drain holes on water channel, remove
the dust and leaves if there are.
14. GUIDE RAIL MAINTENANCE
Remove the dust and leaves from guide rail if there
are any.
15. RE-INITIALIZING THE POWER SUNROOF
If the sunroof is stopped midway due to a
discharged battery or power failure, you need to
recalibrate the starting point of the sunroof.
In addition, the following cases need the reset of
the starting point for the sunroof.
•
The sunroof does not completely close or open
by operating the switch once.
•
The sunroof slides back to close. But the
operation does not stop even after a complete
close and tilts up the sunroof.
•
The opening gap remarkably decreases for the
sliding open or tilt up.
•
Operation of the sunroof switch does not do
anything or do not work properly.
•
The operating process is not same as before
due to discharged or disconnected battery.
CONDITION FOR INITIALIZING THE SUNROOF
•
If the vehicle battery has been disconnected
during Sunroof movement
and reconnected
or is dead or replace the fuse, the sunroof must
be initialized. Otherwise Express (one touch)
function (open/close/tilt) and pinch protection
function will be deactivated
.
•
Re initialisation is being done to set the
Glass Start Position correct which may be
disturbed due to battery disconnection or
other obstruction.
