LV ELECTRICAL SYSTEM
103

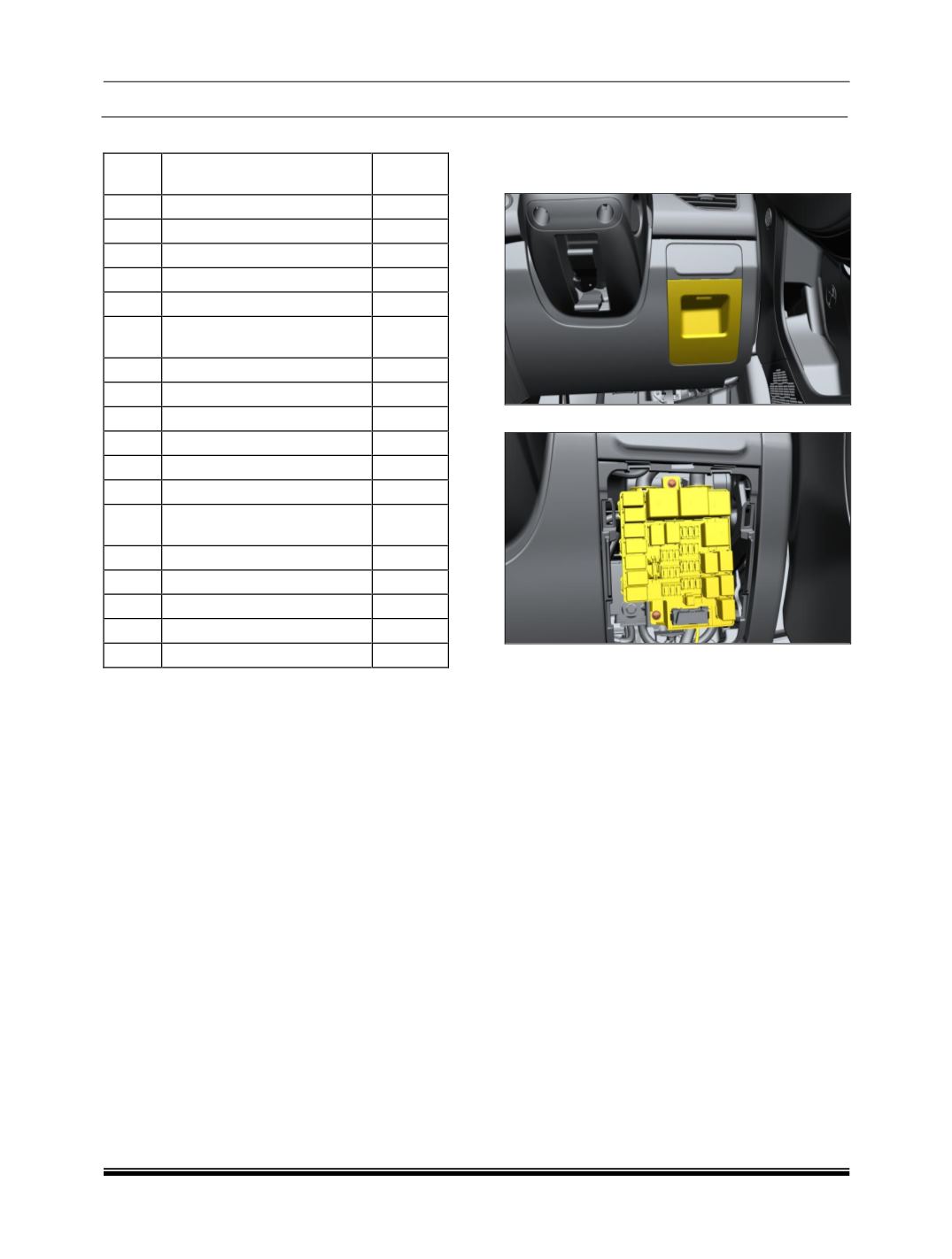

D. Fuse Box Relay Details
FUSE
NO.
FUNCTION
FUSE
RATING
R1
ACC RELAY (CO)
40A
R2
BLOWER (CO)
40A
R3
SPARE
R4
SPARE
R5
SPARE
R6
HEATED REAR WINDOW
(NO)
20A
R7
CDL LOCK (CO)
20A
R8
CDL UNLOCK (CO)
20A
R9
TAILGATE ACT (NO)
20A
R10 IGNITION RELAY (NO)
20A
R11 SPARE
R12 SPARE
R13
WW SIGNAL INVERSION
RELAY (NO)
20A
R14 SPARE
R15 SPARE
R16 SPARE
R17 SPARE
R18 SPARE
E. FUSE AND RELAY REPLACEMENT
1. Pry out the fuse box cover on the dashboard
panel.
2. Take out the fuse and relay from its base.
3. Check the Fuse/relay.
4. If faulty replace with same ratting of fuse and
relay.
F. REPLACEMENT
PROCEDURE
FOR
RELAYS
1. Turn the ignition key to lock position.
2. Check each relay, if faulty replace with same
rating relay.
3. If replaced relay of same rating is not working
properly, there is probably a serious electrical
problem.
G. REPLACEMENT PROCEDURE FOR FUSES
1. Turn the ignition key to lock position.
2. Check each fuse and look for broken/open
controls link wire inside the fuse. If it is burnt,
replace it with one of the spare fuses of same
rating.
3. If replaced fuse of same rating burns out
then, there is probably a serious electrical
problem.
Note: Use designated fuses only
.
