LV ELECTRICAL SYSTEM
102

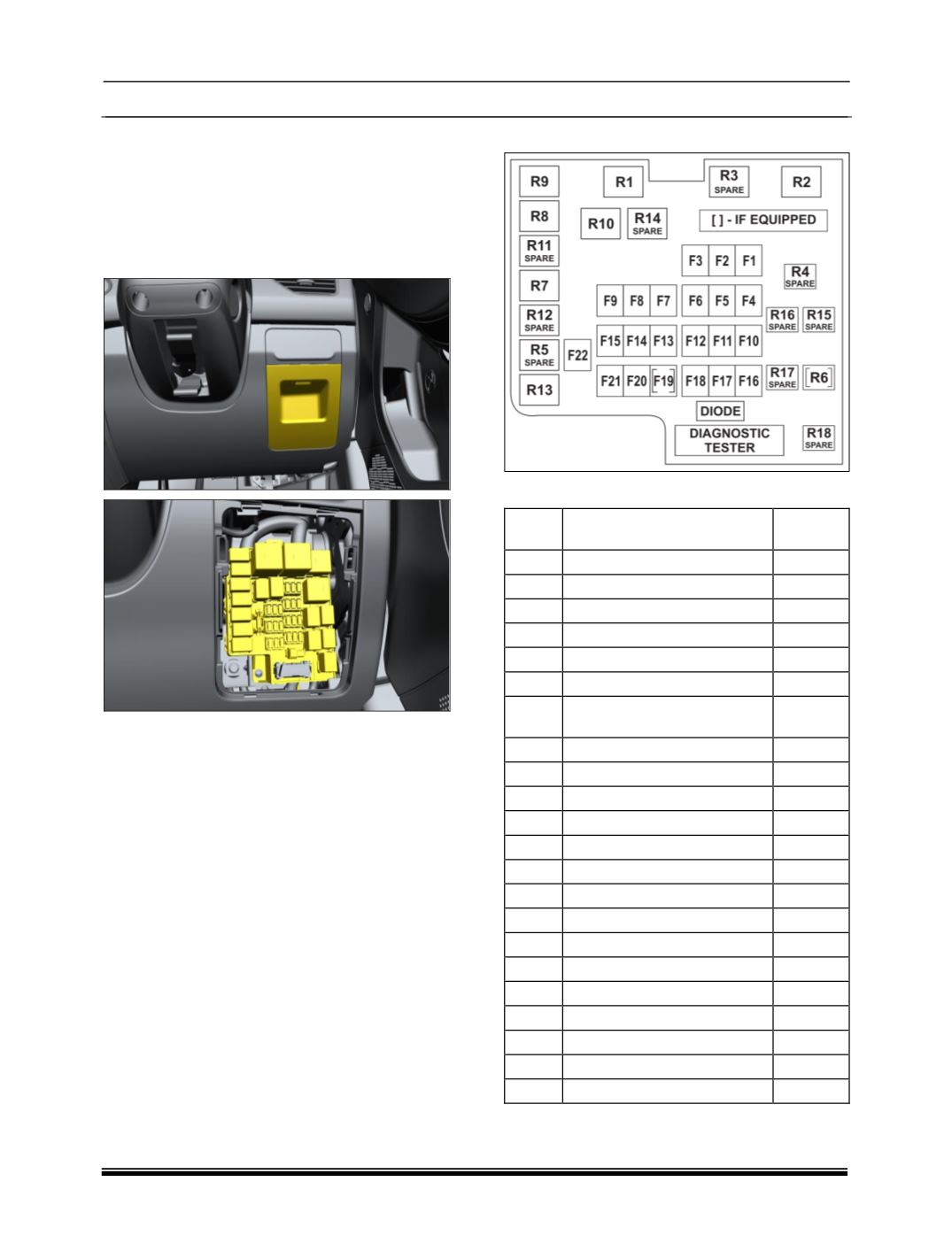

21.3 CABIN FUSE AND RELAY BOX
This fuse box is part of main wiring harness. For
details refer the below fuse box sticker fitted on
steering column lower cover. For other pin out
details of fuse box refer the power distribution II
circuit schematics.
A. LOCATION
B. CABIN FUSE AND RELAY BOX DETAILS
C. Fuse Box Details
FUSE
NO.
FUNCTION
FUSE
RATING
F1
BCM # 1
20A
F2
ACC/OBD BATT
15A
F3
REAR POWER SOCKET
15A
F4
BCM # 2
20A
F5
BCM # 3
20A
F6
BLOWER
30A
F7
MIRROR ADJUST
MOTORS
5A
F8
POWER SOCKET 1
15A
F9
SUNROOF
20A
F10
AIRBAG
5A
F11
EPAS
5A
F12
IGNITION
10A
F13 PEPS
10A
F14
CDL ACTUATOR
15A
F15
CLUSTER
5A
F16
TAILGATE ACT
10A
F17
PDC / TCU IGN
5A
F18
HVAC
10A
F19
HEATED REAR SCREEN
25A
F20
PEPS ECU
5A
F21
TELEMATIC
5A
F22 TRANSIT/INFOTAINMENT
20A
