NOTE
Same procedure is applicable for other door
speakers. Front and rear door speakers should
not be interchanged.

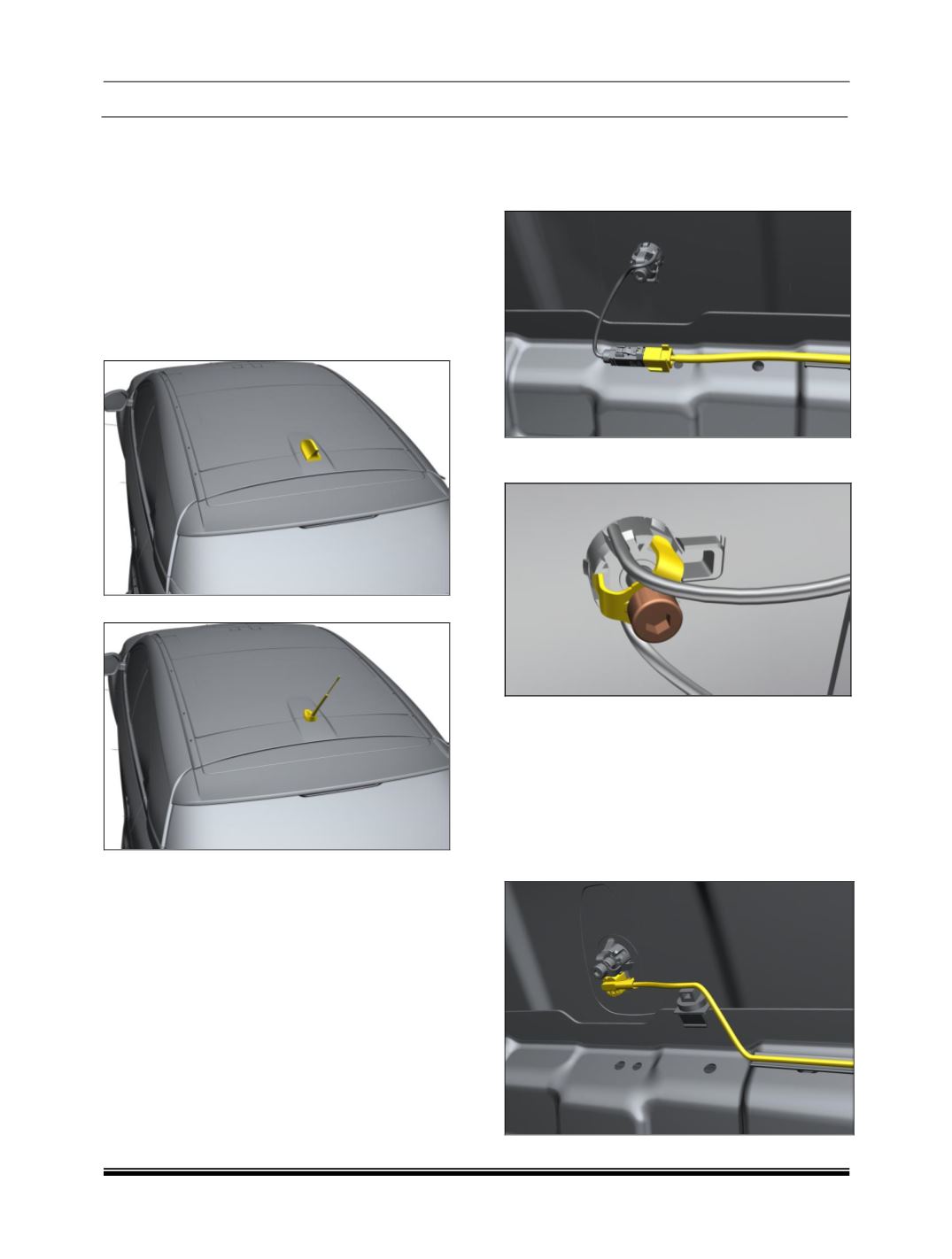

17.2 ANTENNA (If Applicable)
The antenna designed to effectively capture
radiated RF signals in the AM and FM bands.
LOCATION
Antenna is located on the roof, above the Back
windshield glass.
For High Version
For XM Version
REMOVAL (HIGH Vesion)
1. Remove the head lining assembly (Refer Body
section)
2. Disconnect the electrical connection.
3. Loosen the fixing screw and take out the
antenna from top.
REFITMENT
For refitment follow the removal procedure in
reverse.
Torque specified for fixing screw: 4 Nm±1
REMOVAL (XM Vesion)
1. Remove the head lining assembly (Refer Body
section)
2. Disconnect the electrical connection.
