ELECTRICAL
74

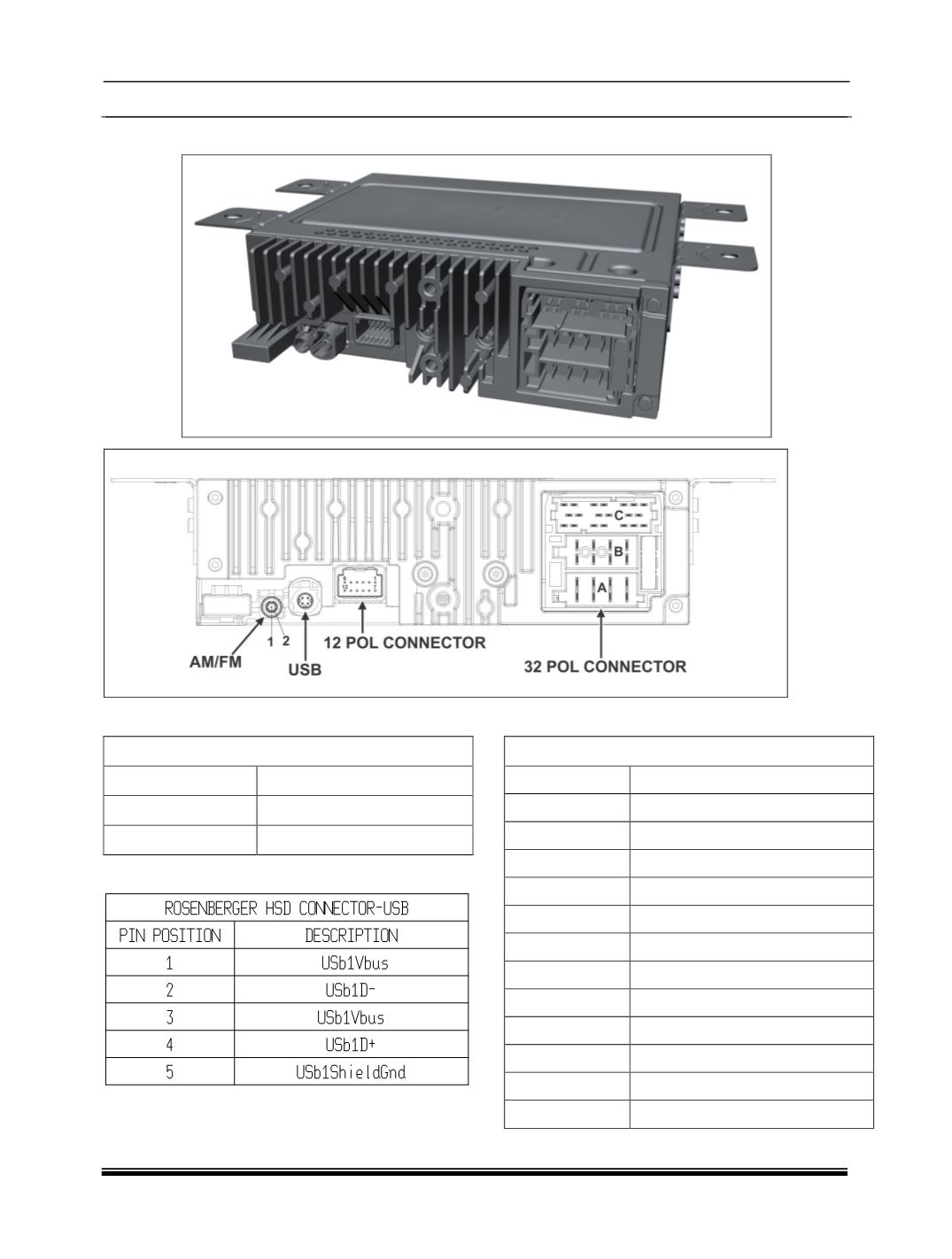

SILVER BOX (XM-LOW VERSION)
1. AM \ FM
AM / FM Antenna
PIN POSITION
DESCRIPTION
1
AM / FM SIGNAL
2
AM / FM SHIELD
2. HSD CONNECTOR USB
TYCO 12 POL CONNECTOR
TYCO 12 POL CONNECTOR
PIN POSITION
DESCRIPTION
1
LCD_CLK +
2
LCD_CLK -
3
GND
4
LCD_DAT_IN -
5
LCD_DAT_IN +
6
LCD_RST
7
LCD_CS
8
LCD_CMD
9
LCD_DAT_OUT
10
BACKLIGHT PWM
11
+5 VCC
12
GND
