ELECTRICAL
57

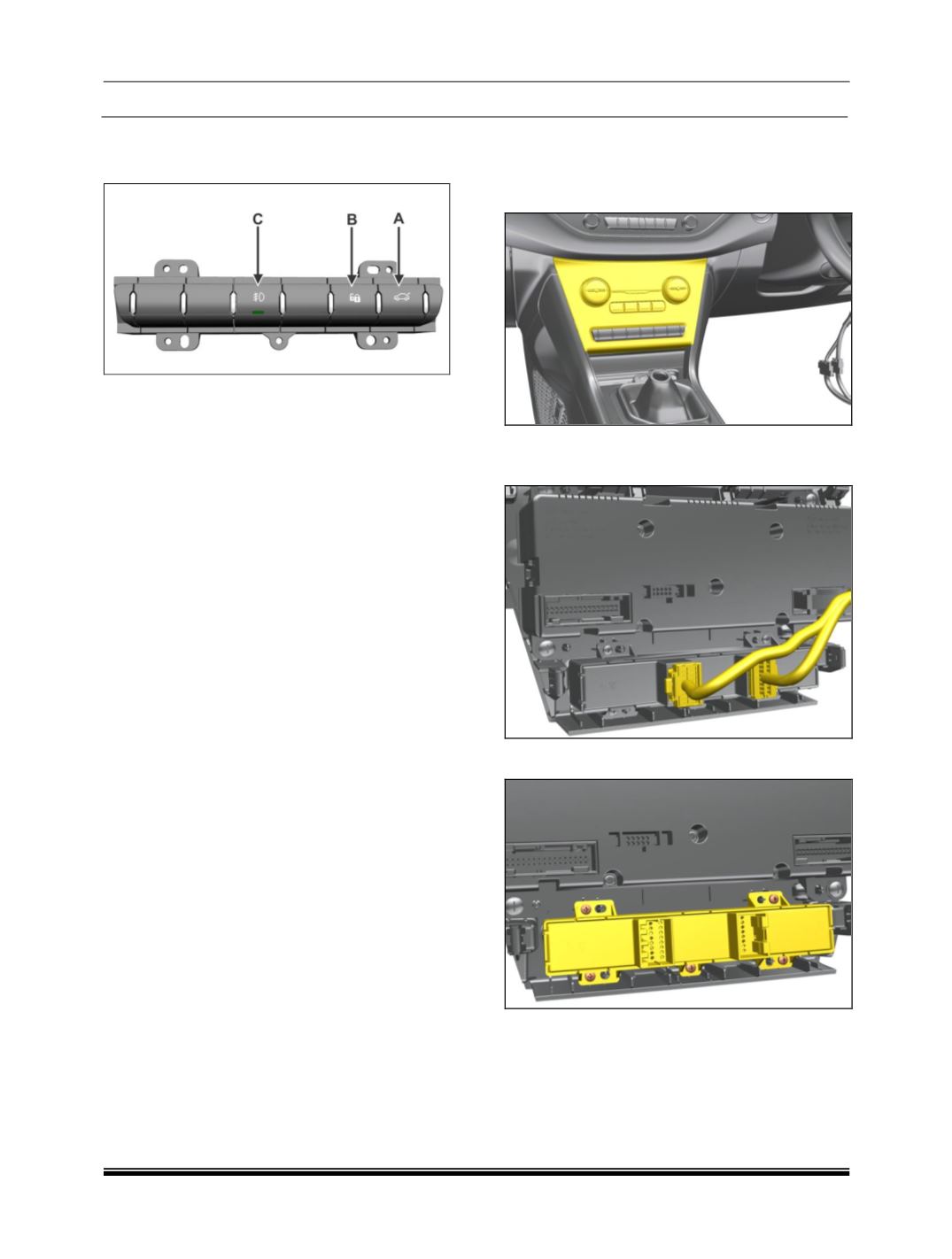

14 FASCIA SWITCHES
PDC, fog lamps are located on fascia switches
A. TAILGATE SWITCH:
To open the tailgate, press the switch located on
fascia switch It can also be opened by using door
key. The lock is located on the tailgate.
For closing, pull the tail gate down and close it with
a slight swing.
B. DOOR LOCK-UNLOCK
The power door lock switch is a rocker switch that
allows you to lock and unlock your car doors with a
the simple touch of a button. Although older cars
used manual lock switches,.
C. FRONT FOG LAMPS (IF FITTED):
Front Fog Lamps are provided on front bumper to
provide improve divisibility in adverse weather
conditions to avoid accidents when visibility is
poor.
The front fog lamps can be switched ‘ON’ with
ignition and parking lamp ‘ON’ and can remain on
till the parking lamp is switched ‘OFF’.
FASCIASWITCH PANEL
REMOVAL
1. Carefully pry out console controller panel
2. Disconnect all the electrical connection from
the fascia switch assembly.
3. Remove the mounting screws.
4. Take out the console controller panel.
INSTALLATON
Follow the removal procedure in reverse.
Fascia switches tightening torque 0.4 N-m.
