ELECTRICAL
56

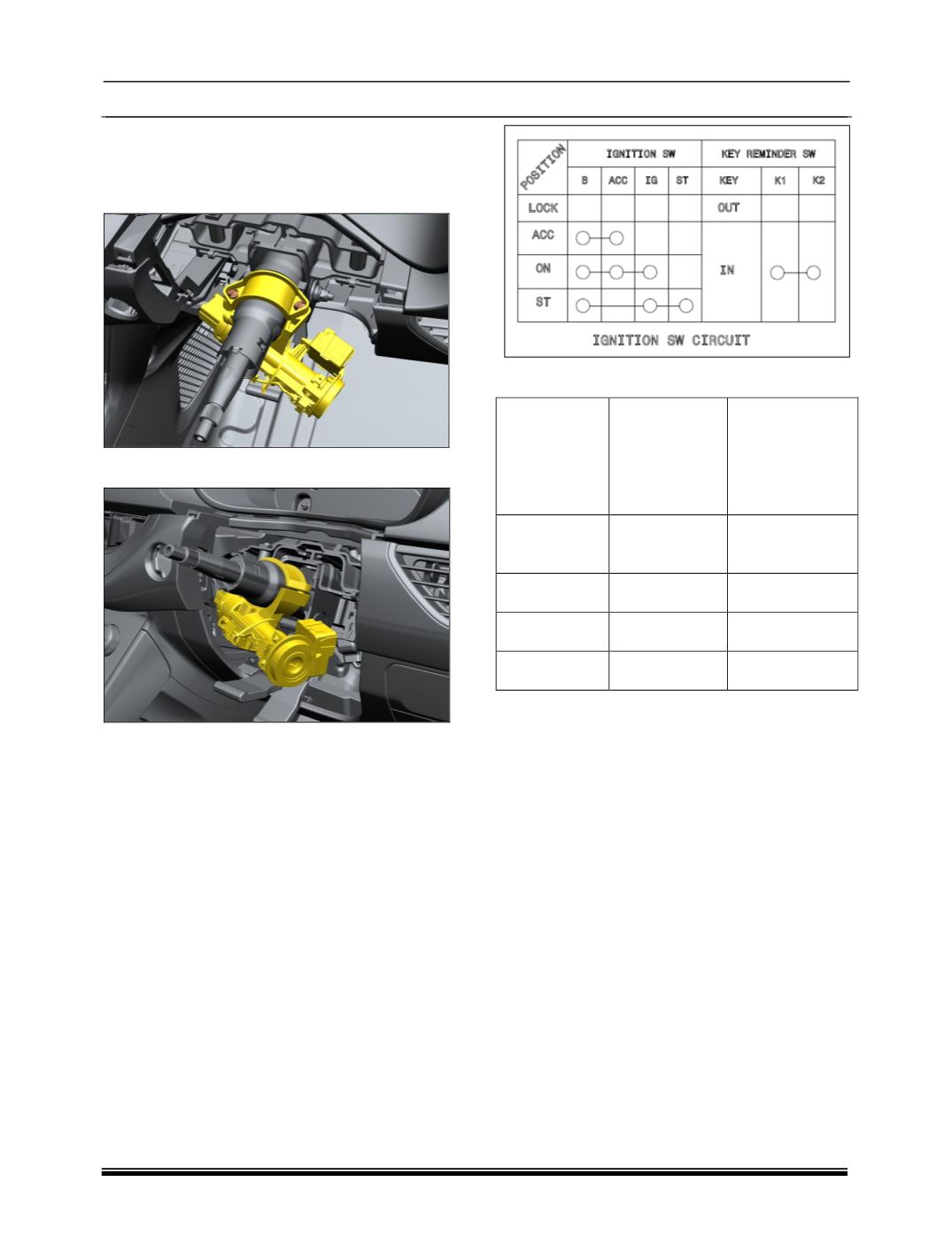

6. Steering lock cum ignition switch mounting
screws are anti loosening. To remove the
Ignition lock, screw to be loosened by using
flat screw driver and hammer.
7. Remove assembly of SLCIS.
REFITMENT
1. Refit SLCIS and tighten its mounting
screws.
2. Reconnect SLCIS connection.
3. Refit combination switch.
4. Refit steering Wheel.
5. Refit steering nacelle.
6. Refit battery negative terminal.
CONNECTION DETAIL
PIN DETAIL
Contacts
Minimum.
permanent
Load current
at Temp -
30
°C
Maximum.
permanent
Load current at
Temp +23
°C to
+85°C
Battery – Key
IN Sensor
10 mA
30 mA
Battery - ACC
250 mA
2 A
Battery - ON
250 mA
2 A
Battery - Start
10 mA
250 mA
