ELECTRICAL
37

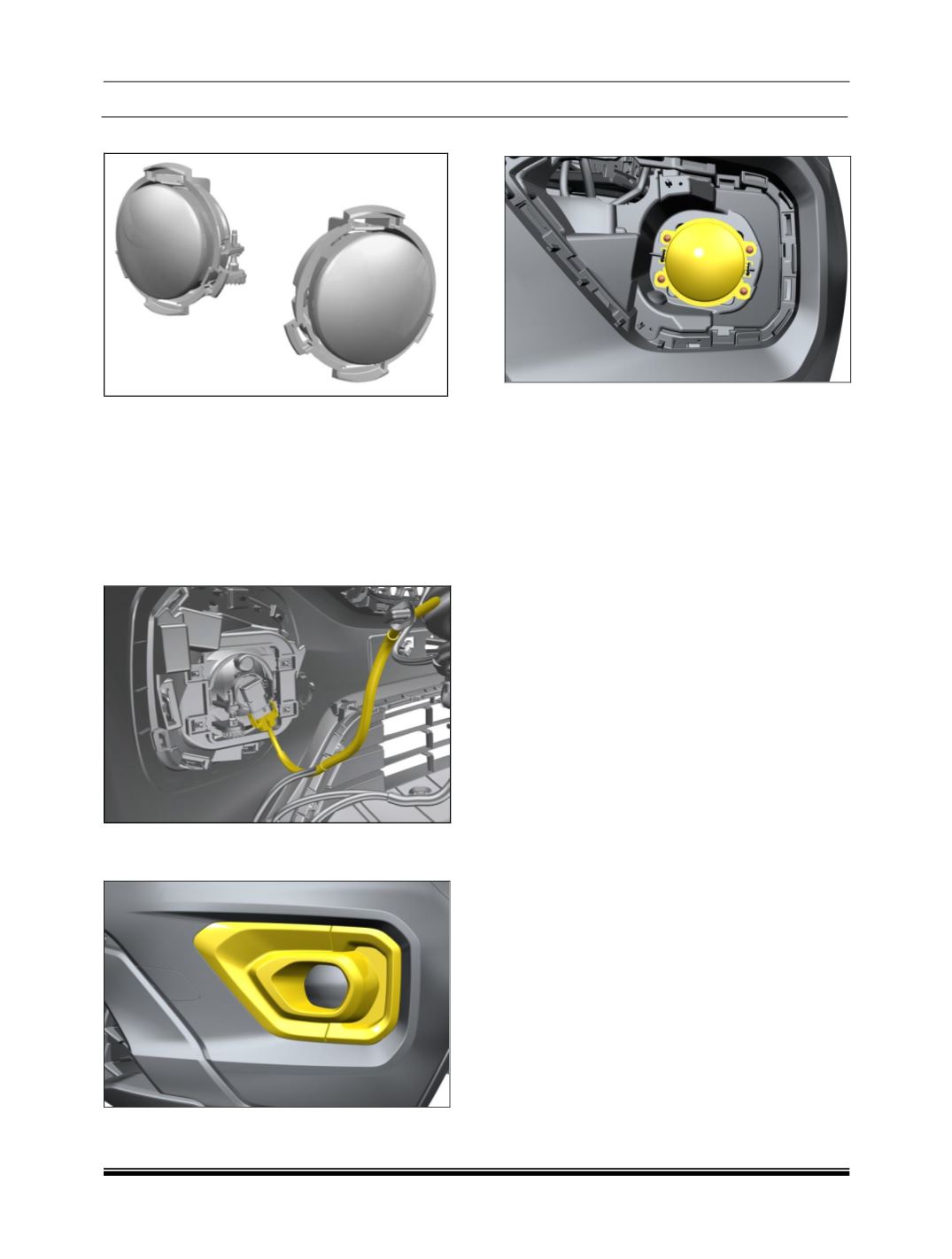

7.9 FRONT FOG LAMP
The fog lamps are located in the lower part of the
front bumper. The bulb used for the fog lamp
function is a halogen H16 bulb, 12V - 19W.
Fog lamp on/off is done by using master light
switch.
REMOVAL:
1. Disconnect the electrical connection of fog
lamp.
2. Pull out for fitting the lamp housing on the
bumper.
3. Remove four screw of fog lamp.
REFITMENT
For refitment follow the procedure in reverse.
BULB REPLACEMENT PROCEDURE
1. Disconnect the electrical connection.
2. Remove the bulb assembly by rotating in
anticlockwise direction.
3. Take out the bulb from holder& replace with
new one.
4. Fit the assembly by rotating in clockwise
direction.
5. Connect the electrical connection.
