ELECTRICAL
36

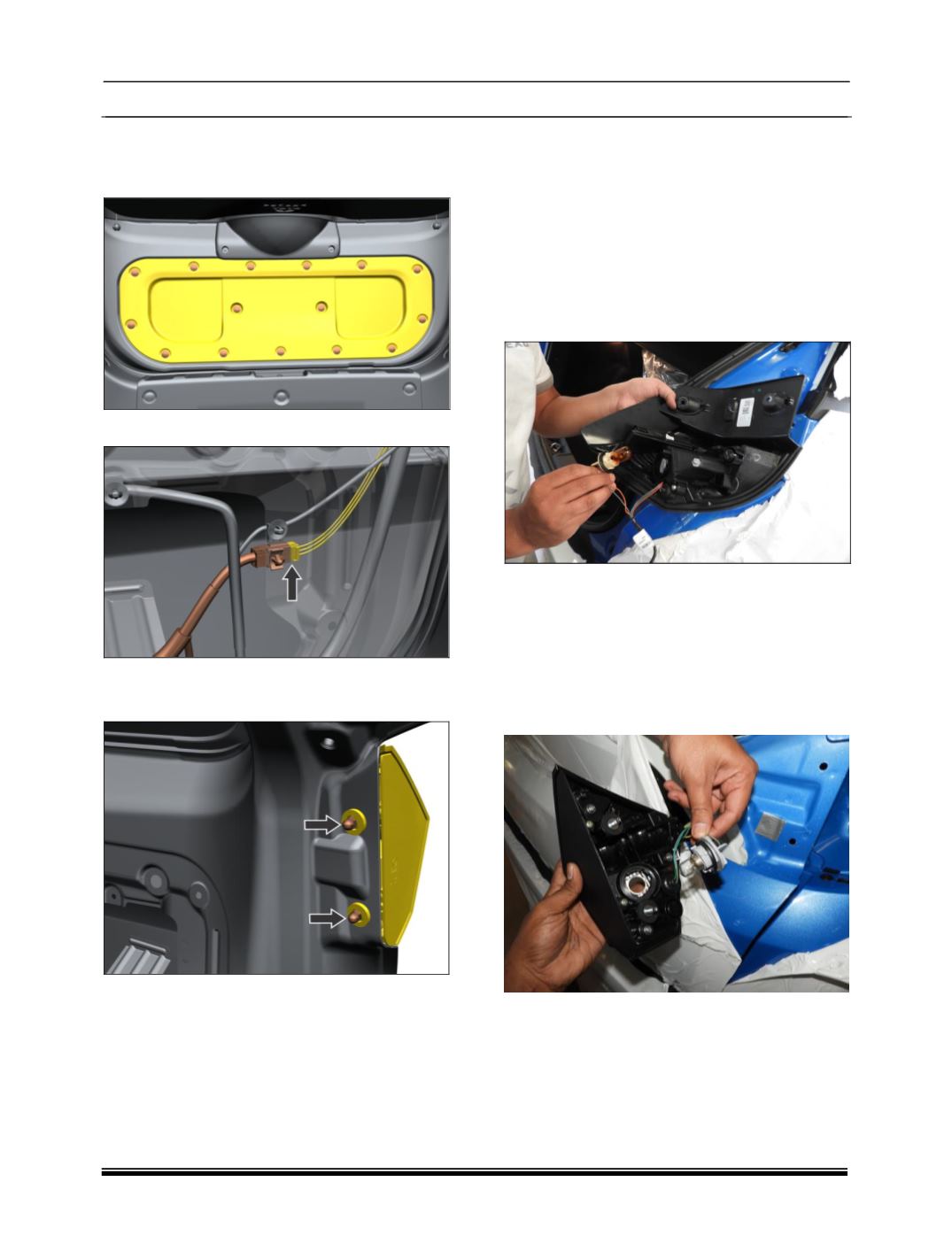

TAIL LAMP REMOVAL (TAIL GATE SIDE)
1. Remove Tailgate Trim to access electrical
connection.
2. Disconnect Electrical Connection.
3. Open tail gate
4. Remove two nuts on tail gate
5. Take out side mounted Tail lamp.
REFITMENT:
Follow the reverse Procedure of Removal.
REMOVAL & REFITMENT OF TAILLAMP
BULBS
TURN INDICATION LAMP REMOVAL
1. Take out Body mounted tail Lamp.(For
Procedure refer Body side Tail Lamp Removal)
2. Rotate the turn signal bulb holder in anti-clock
wise direction to unlock the bulb holder.
3. Remove the bulb holder from lamp.
4. Replace the turn indication lamp.
REVERSE LAMP REMOVAL
1. Take out Tail Lamp on Tail Gate side.(For
Procedure refer Tailgate side Tail Lamp
Removal).
2. Rotate the reverse bulb holder in anti-clock
wise direction to unlock the bulb holder.
3. Remove the bulb holder from lamp.
4. Replace the reverse lamp.
