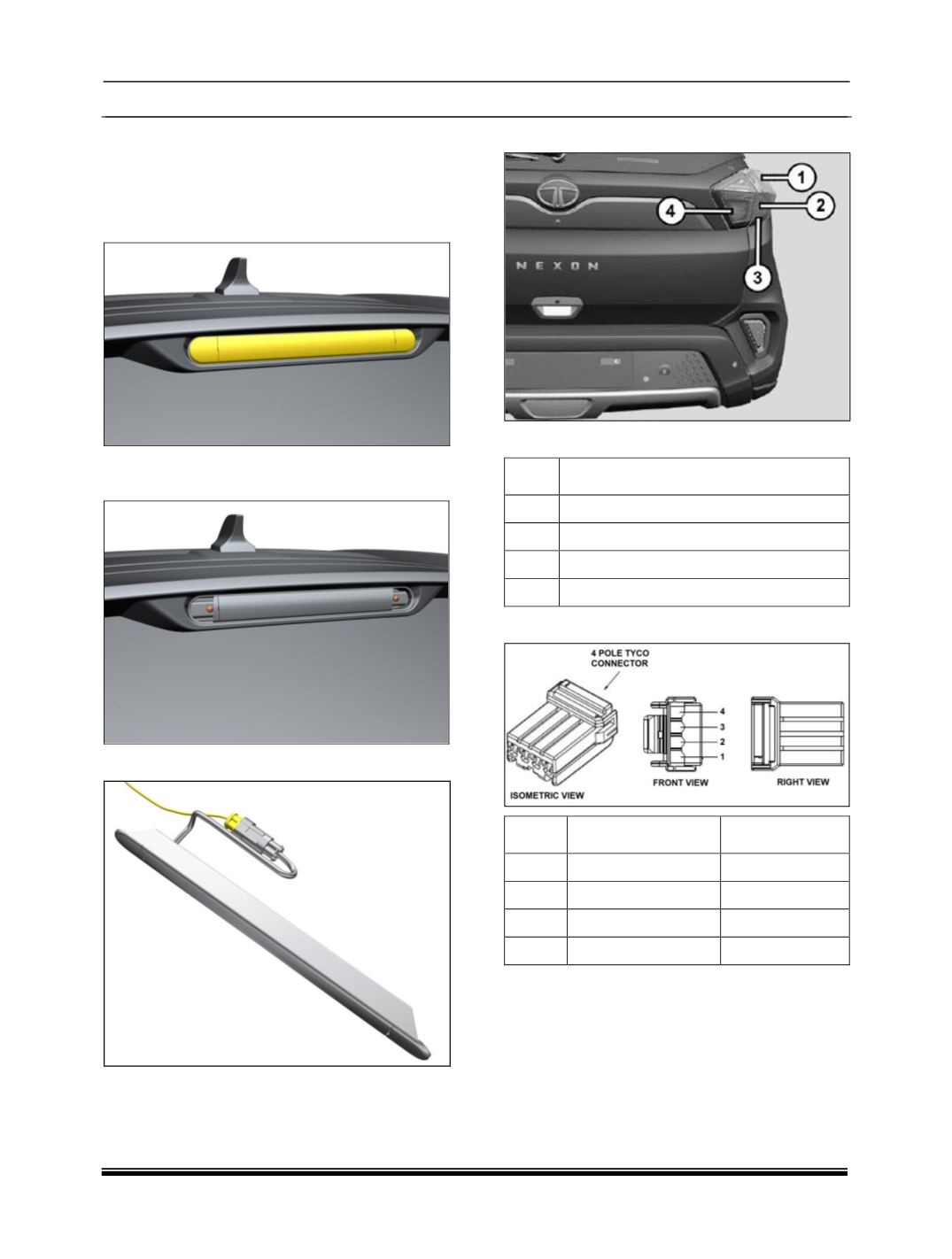

REMOVAL AND REFITMENT OF HIGH
MOUNTED STOP LAMP
REMOVAL
1. Remove the cap of the high mounted stop
lamp as shown.
2. Remove the mounting screw and take out the
stop lamp.
3. Disconnect the electrical connection.
REFITMENT
Follow the removal procedure in reverse.
7.8 TAIL LAMP (NEED PHOTOGRAPH)
Tail lamp consists of the following bulbs:
NO.
DESCRIPTION
1
Turn indicators
2
Stop lamp
3
Parking / Position
4
Reverse Lamp
BSO SIDE TAIL LAMP
PIN
DESCRIPTION
COLOUR
1
Turn
Orange
2
Stop
Red
3
Tail/Position
Green
4
Ground
Grey
