NEXON BSVI - SERVICE MANUAL

FATC

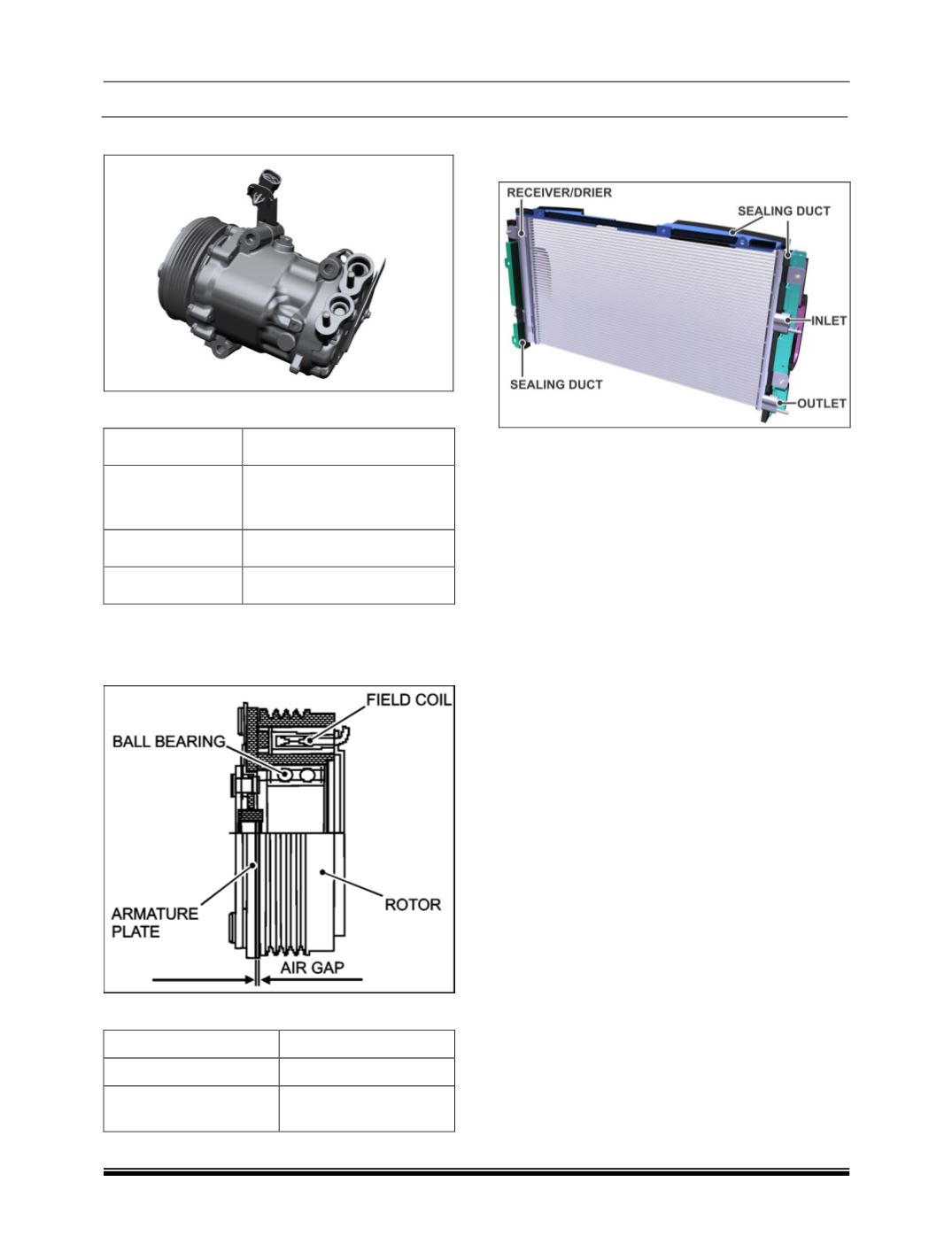

B. COMPRESSOR

SPECIFICATION

MODEL

SD6V12

DISPLACEMENT

VOL.

Max. 125.1 cm

/ rev.

Min. 7.5 cm

/ rev.

LUBRICANT

SP10

QUANTITY

120 ± 15 cm

The Compressor used is variable Displacement type

compressor.

MAGNETIC CLUTCH

SPECIFICATION

NOMINAL VOLTAGE

DC12V

AIR GAP

0.50± 0.15 mm

DIRECTION OF RO-

TATION

Clockwise

C. CONDENSER AND RECEIVER DRIER

CONDENSER

The condenser is a heat exchanger used to cool the

hot vapourised refrigerant. Also the refrigerant

changes its state from vapour to liquid. The

condenser is placed in front of the radiator behind

the radiator is the fan used to draw in ambient air.

CONDENSER SEALING DUCTS

Sealings are used to guide the flow of the air to the

condenser and also to avoid the hot air recirculating

from the engine compartment to the condenser.

RECEIVER DRIER (R.D)

The receiver drier is integrated into the Condenser

and has three main functions.

i) It absorbs the moisture in the refrigerant.

ii) It allows only liquid (

high pressure liquid)

to pass

through to the TXV.

It keeps a reserve of refrigerant to accommodate

fluctuating refrigerant requirements.
