7. CONTROL PANEL DETAILS

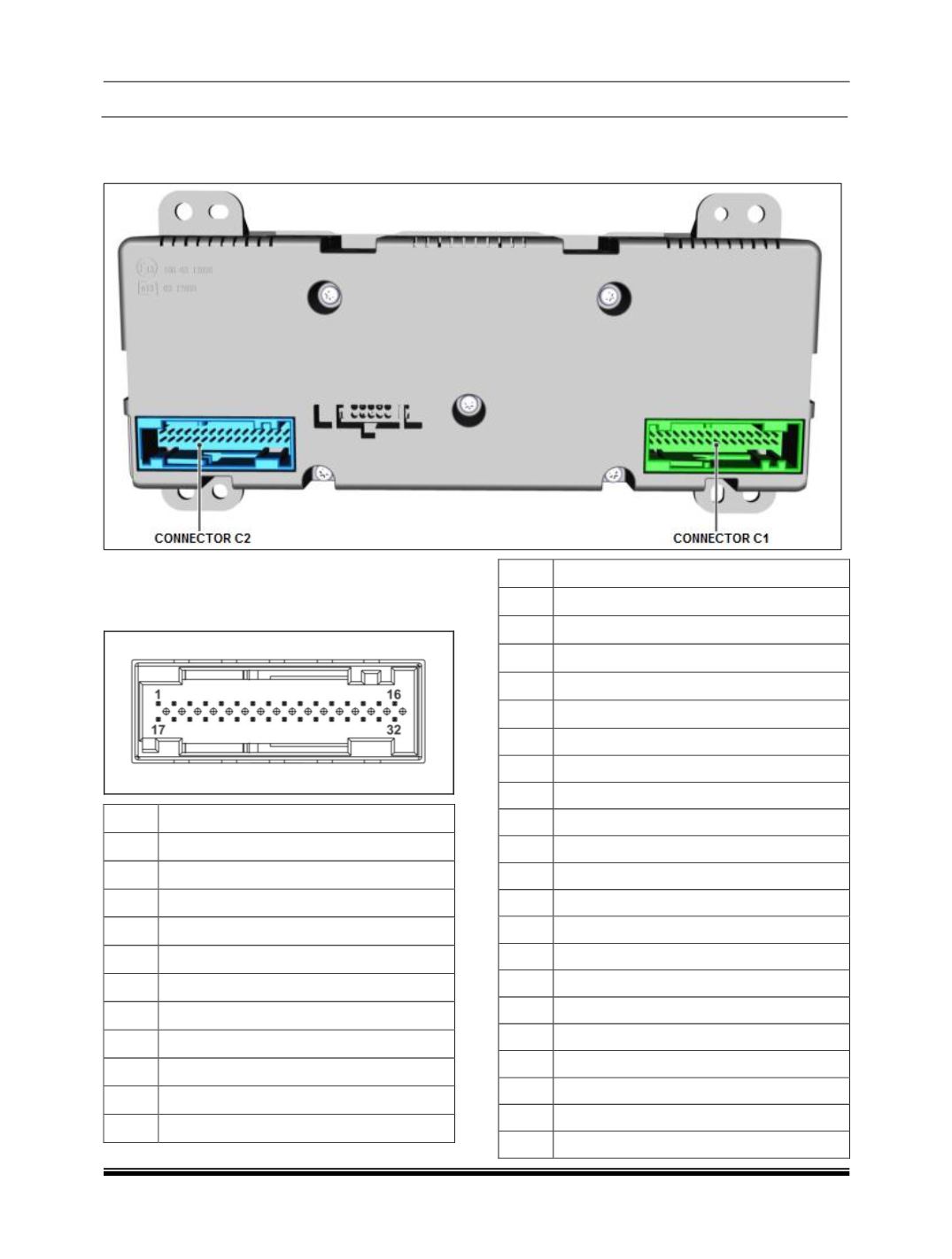

A. CONTROL PANEL CONNECTOR
CONNECTOR C2
HVAC SIDE CONNECTOR (BLUE CONNECTOR)
PINOUT DETAILS
PIN DESCRIPTION
1
Air Inlet Potentiometer Supply
2
Air Temperature Potentiometer Supply
3
Air Distribution Potentiometer Supply
4
Air Temperature Potentiometer Signal
5
Not Connected
6
Not Connected
7
Not Connected
8
Sensor Temperature Evaporator Signal
9
Air Distribution Potentiometer Signal
10
Air Inlet Potentiometer Signal
11
Air Temperature Motor B
PIN DESCRIPTION
12
Air Inlet Motor A
13
Air Inlet Motor B
14
Air Distribution Motor A
15
Air Distribution Motor B
16
Air Temperature Motor A
17
Air Inlet Potentiometer GND
18
Air Temperature Potentiometer GND
19
Air Distribution Potentiometer GND
20
Sensor Temperature Evaporator GND
21
Not connected
22
Not connected
23
Not Connected
24
Not connected
25
Not Connected
26
Interface BBM PWM
27
BBM Diagnostic Feedback
28
Not connected
29
Not connected
30
Not Connected
31
Not Connected
32
Not Connected
