Tire Pressure Monitoring System (TPMS)
5

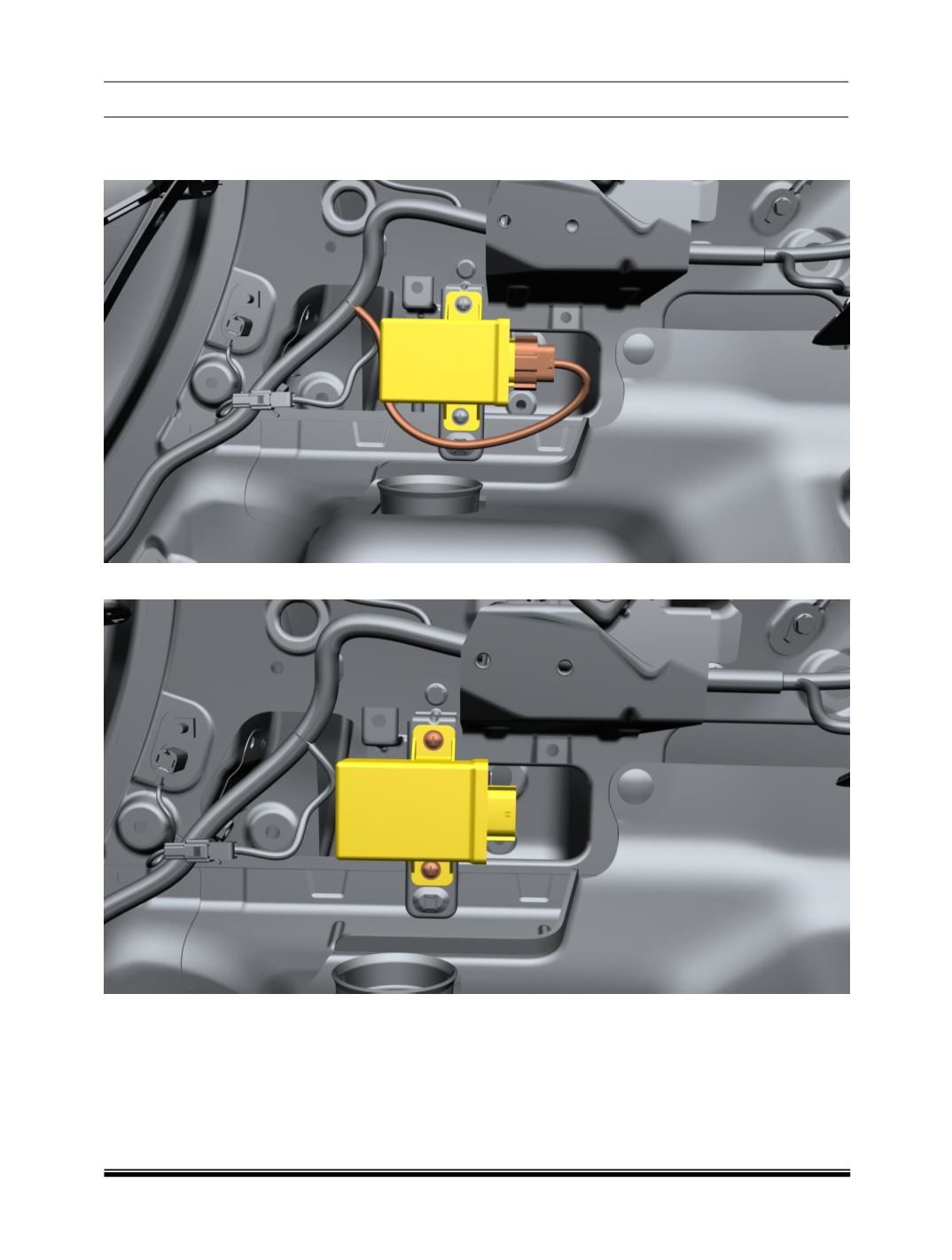

4) Locate the TPMS ECU.
5) Remove the TPMS ECU connector.
6) Remove the old TPMS ECU from bracket.
7) Fix the new TPMS ECU on bracket.
8) Connect the TPMS ECU connector into their respective socket.
9) Ensure that connector is fitted tightly and properly.
10) Connect the battery.
11) Connect the diagnostic tool to OBD connector.
12) Flash the vehicle specific calibration file uploaded on server.
