F. TIRE REPLACEMENT
During all the operations on the tire, the sensor must be correctly maintained and thus it is forbidden to
unscrew the nut and to force the sensor into the wheel. This could damage the sensor. Tire replacement

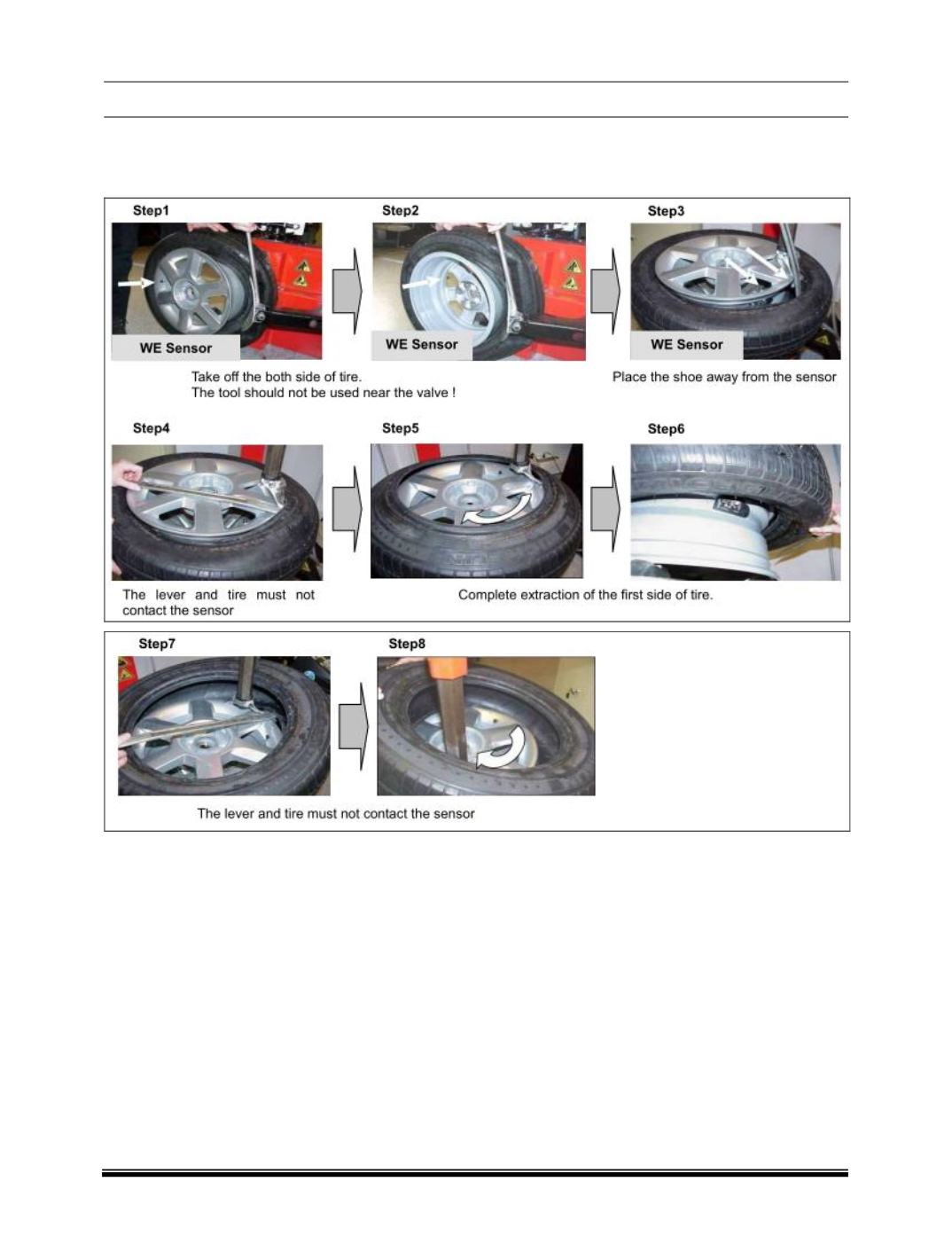

1: Take off the first side of the tire. The tool should not be used near the valve (no less than 30cm).
2: Take off the second side of the tire. The tool should not be used near the valve (No less than 30cm).
3: Dismount the first side of the tire: Place the shoe of the tool between 5 and 15cm away from the sensor
and use the tire lever as shown in the picture.
4: By using the tire lever, extract side wall of the tire and engage on the shoe of the machine. The lever and
the tire must not come into contact with the sensor. Then remove the lever.
5: The wheel rotation allows the complete extraction of the first side of tire.
6: Raise the tire to prepare the introduction of the tire lever to aid extraction of the second side wall, the
same recommendations as for the first side wall will apply.
7: By using the tire lever, extract the external side wall of the tire and engage the shoe of the machine. The
lever and the tire must not come into contact with the sensor. Then remove the lever.
8: Extract entirely the second side wall of the tire.
