1.2L REVOTRON ENGINE

40

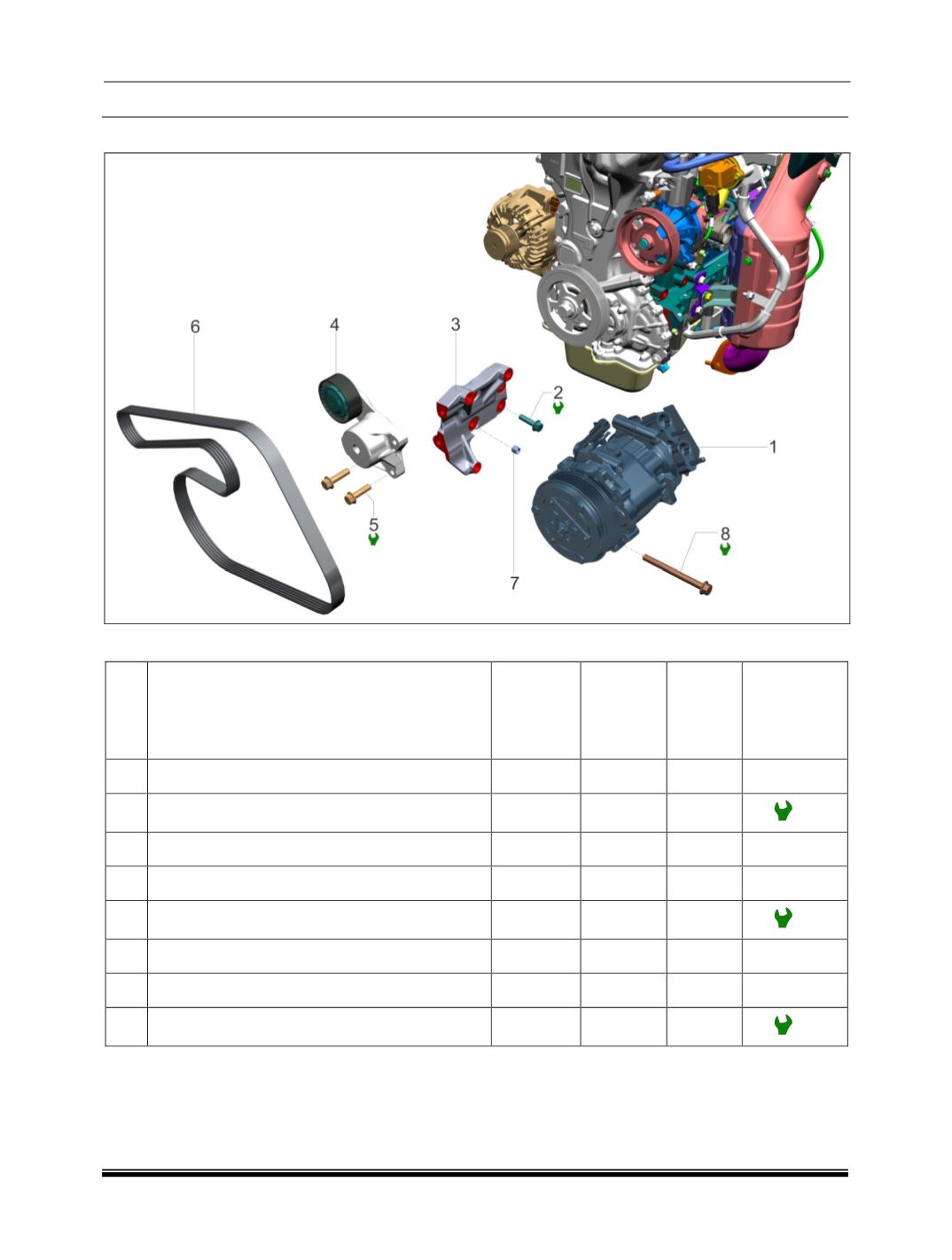

O. Compressor, Auto-Tensioner and Belt



Compressor, Auto-Tensioner and Belt

No.

DESCRIPTION

NO

REUSE

SEALANT

LUBRICA

TION

TOQUE

(Kgf.m)

1 Compressor

2 Hex Flange Screw M8x30 (4 Qty)

2.5

3 Bracket (A.C. Comp. Mounting)

4 Auto Tensioner Assy.

5 Hex Flange Bolt M8x30 (2 Qty)

2.5

6 Belt

7 Hollow Dowel (2 Qty)

8 Hex Flange Bolt M8x85 (3 Qty)

3.0
