TRANSAXLE TA6300
29

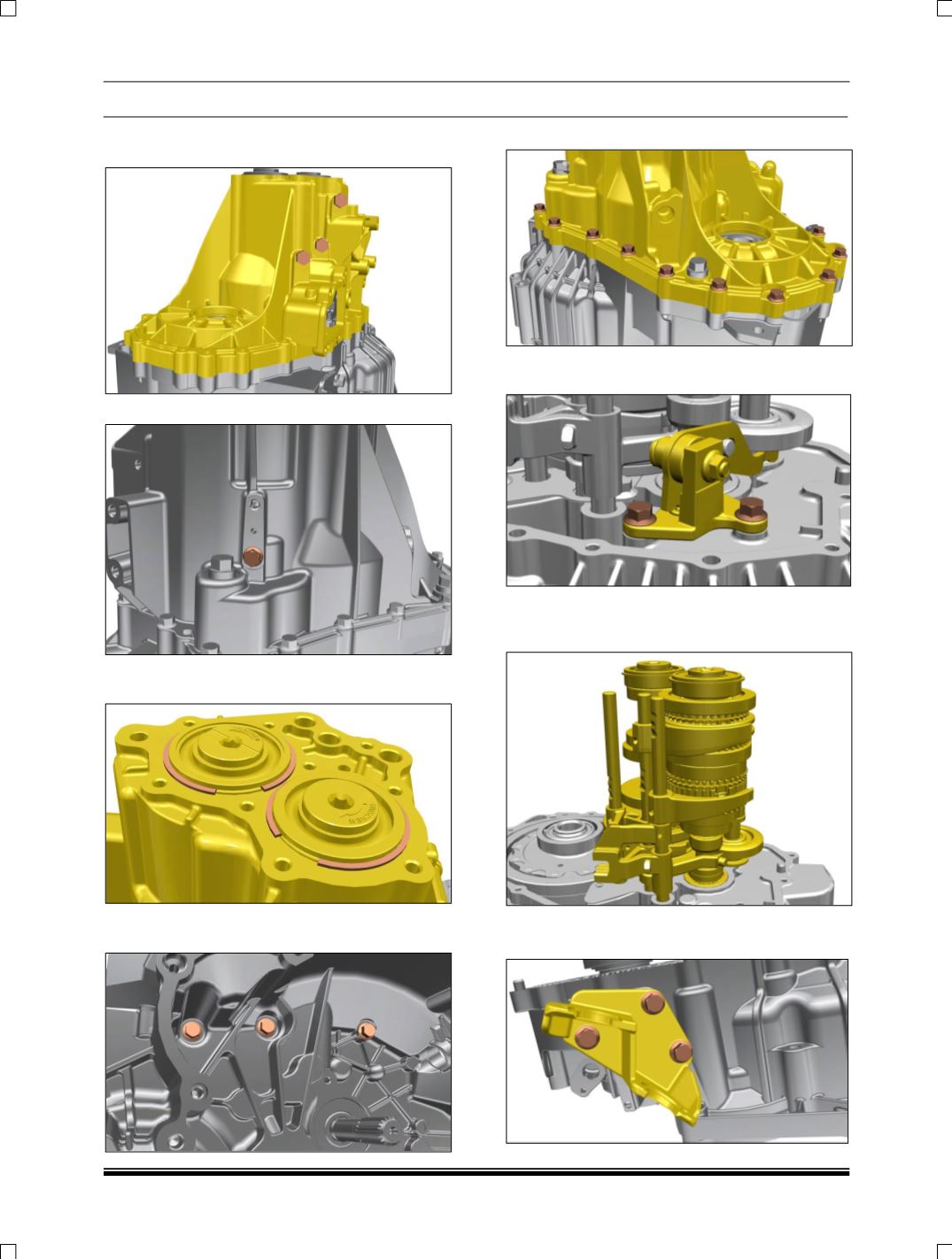

10. Remove DETENT ASSY (SHIFTER SHAFT)
as shown & take out housing, Rear half.
11. Remove Hex FL bolt M8X25 for Reverse Idler.
12. Remove snap ring on deep groove ball
bearing as shown
13. Remove three Hex FL Bolt M8X45.from inside
from front housing half.
14. Remove Hex FL Bolt M8X45 (13 nos).
15. Unscrew hex Flange screw M8x22 & take out
reverse Lever bracket Assy.
16. Take out input shaft assembly, Lay shaft
assembly, reverse shaft assembly & all shifter
shaft assembly.
17. Remove wiring harness Bracket.
18. Remove cable-anchoring Bracket.
