TRANSAXLE TA6300
26

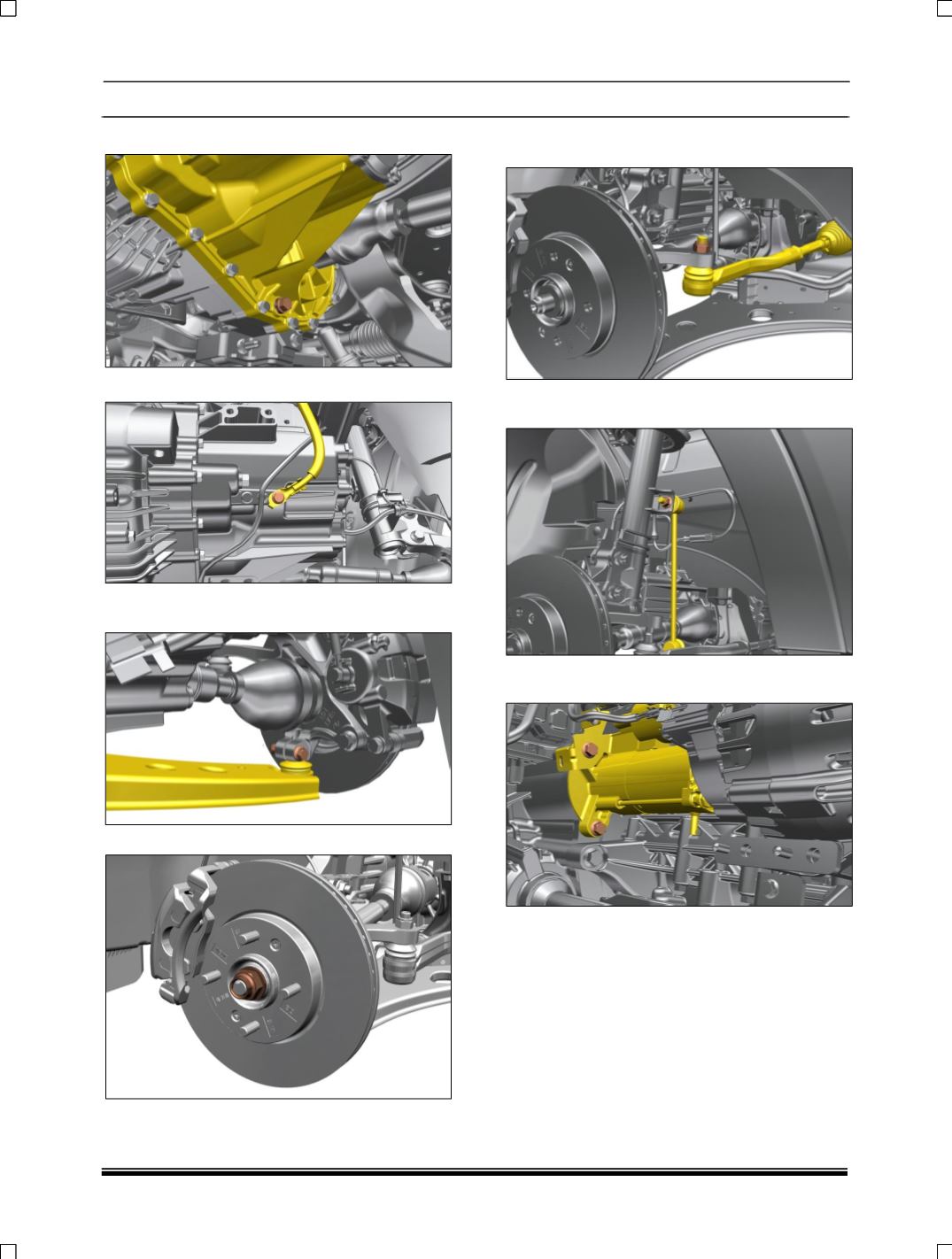

7. Drain the Transaxle oil through Drain Plug.
8. Remove earthing cable from gear box.
9. Remove stub axle ball joint Mounting &
Loosen Lower Control Arm on LH & RH side.
10. Remove driveshaft lock nut LH& RH.
11. Remove ball joint (steering rack) from steering
knuckle from both sides.
12. Remove vertical link mountings on
suspension rod for both RH & LH sides.
13. Remove starter motor connection & its three
mountings & take out starter motor.
14. Disconnect electrical connections of Reverse
Light switch.
15. Disconnect power steering pressure line and
its mounting over transaxle.
16. Disconnect gear shifter cables.
