1.5L REVOTORQ BS VI ENGINE
145
ix.

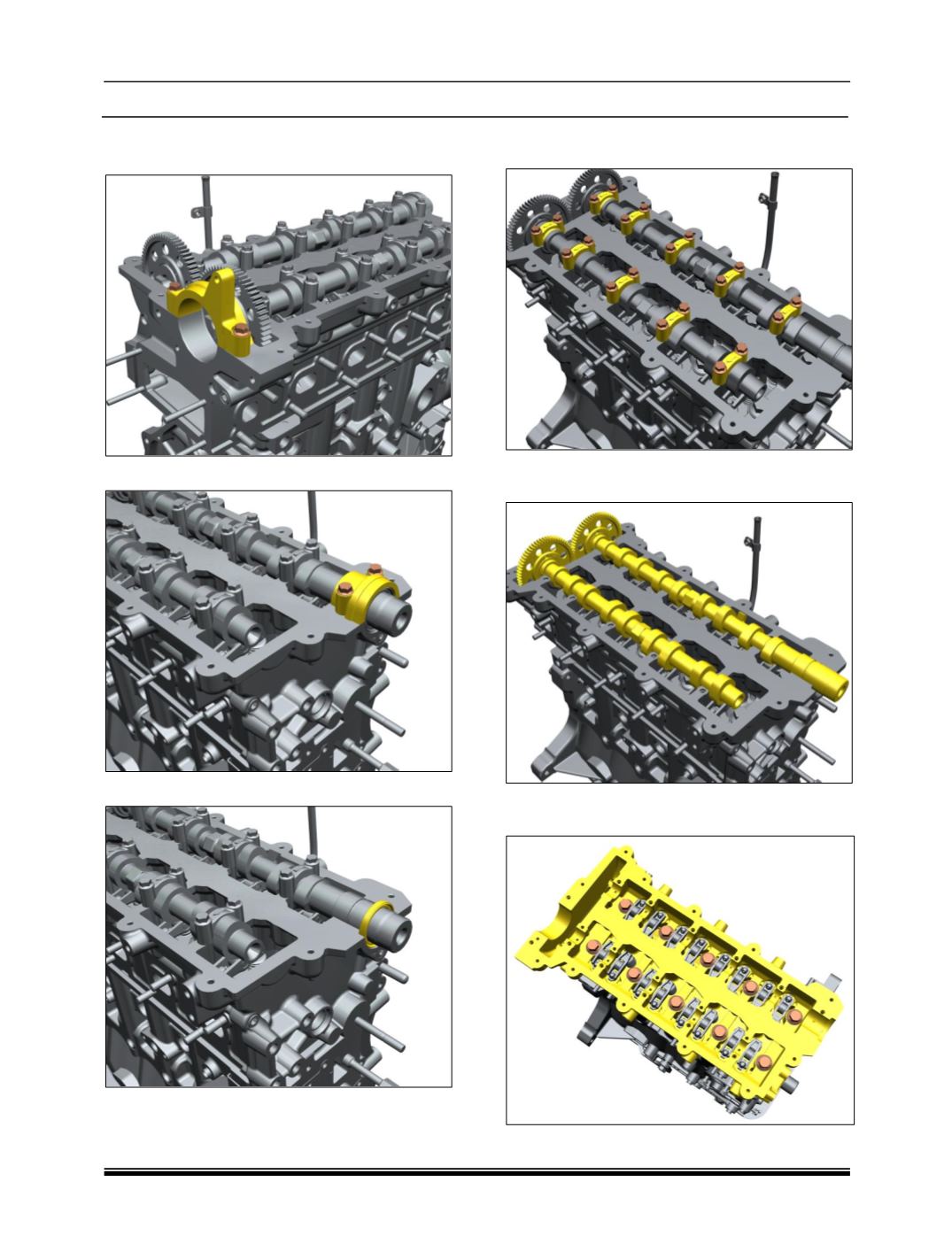

REMOVAL OF CYLINDER HEAD
1. Remove the rear camshaft bearing cap.
2. Remove the front camshaft bearing cap.
3. Remove the oil seal on the shaft.
4. Remove the thrust bearing and inner bearing
cap of the intake and exhaust camshaft.
5. Remove the intake and exhaust camshaft
along with its gear.
6. Loosen and remove the mounting bolts of
cylinder head in specified sequence.
