1.5L REVOTORQ BS VI ENGINE
141

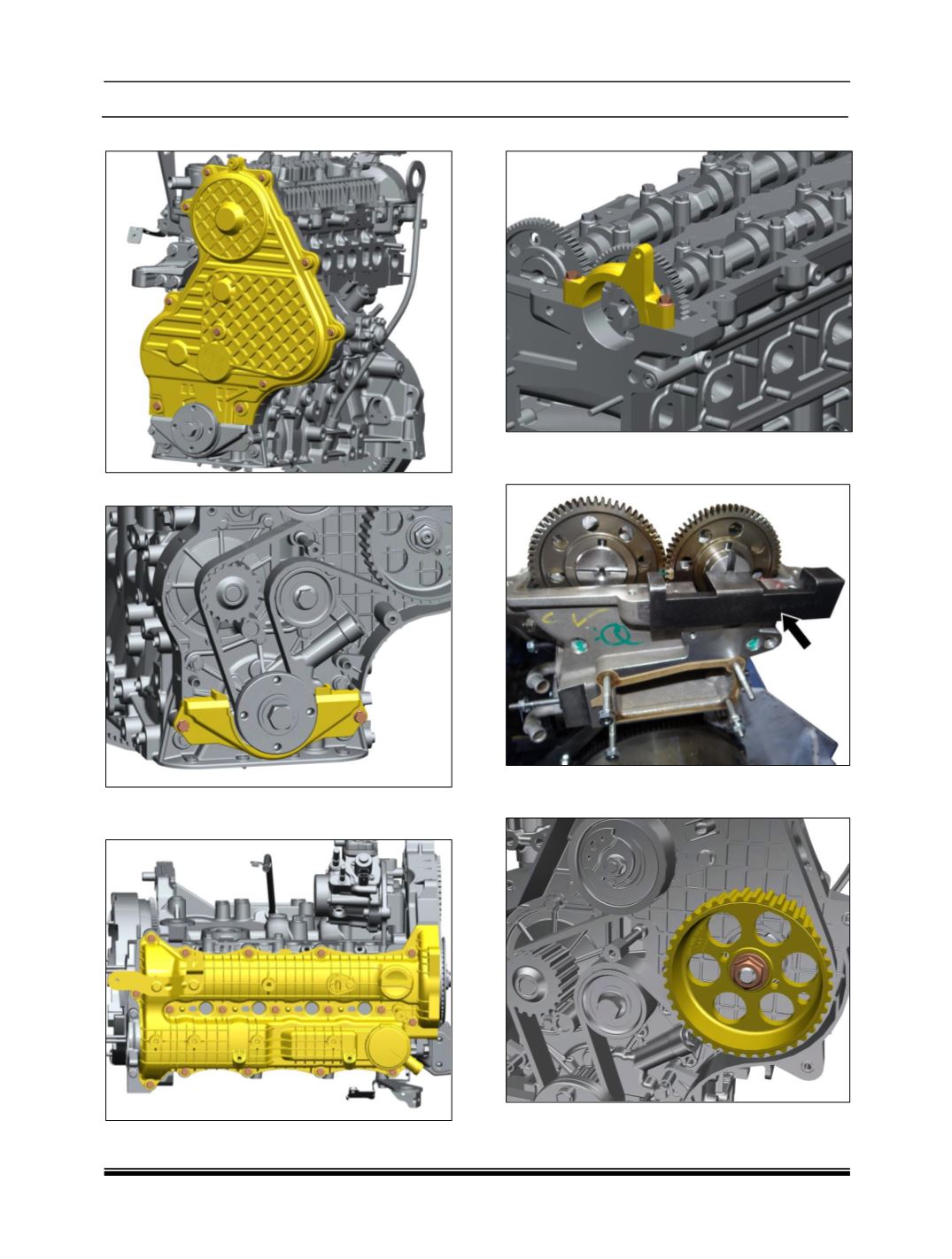

3. Remove the front timing cover.
4. Remove the bottom front timing cover
5. Remove the head cover assembly along with
camshaft position sensor.
6. Remove the camshaft bearing cap
7. Insert the camshaft locking plate
(part no. 2868
5890 0603)
to lock camshaft.
8. Loosen the torque on the FIP gear mounting
nut.
