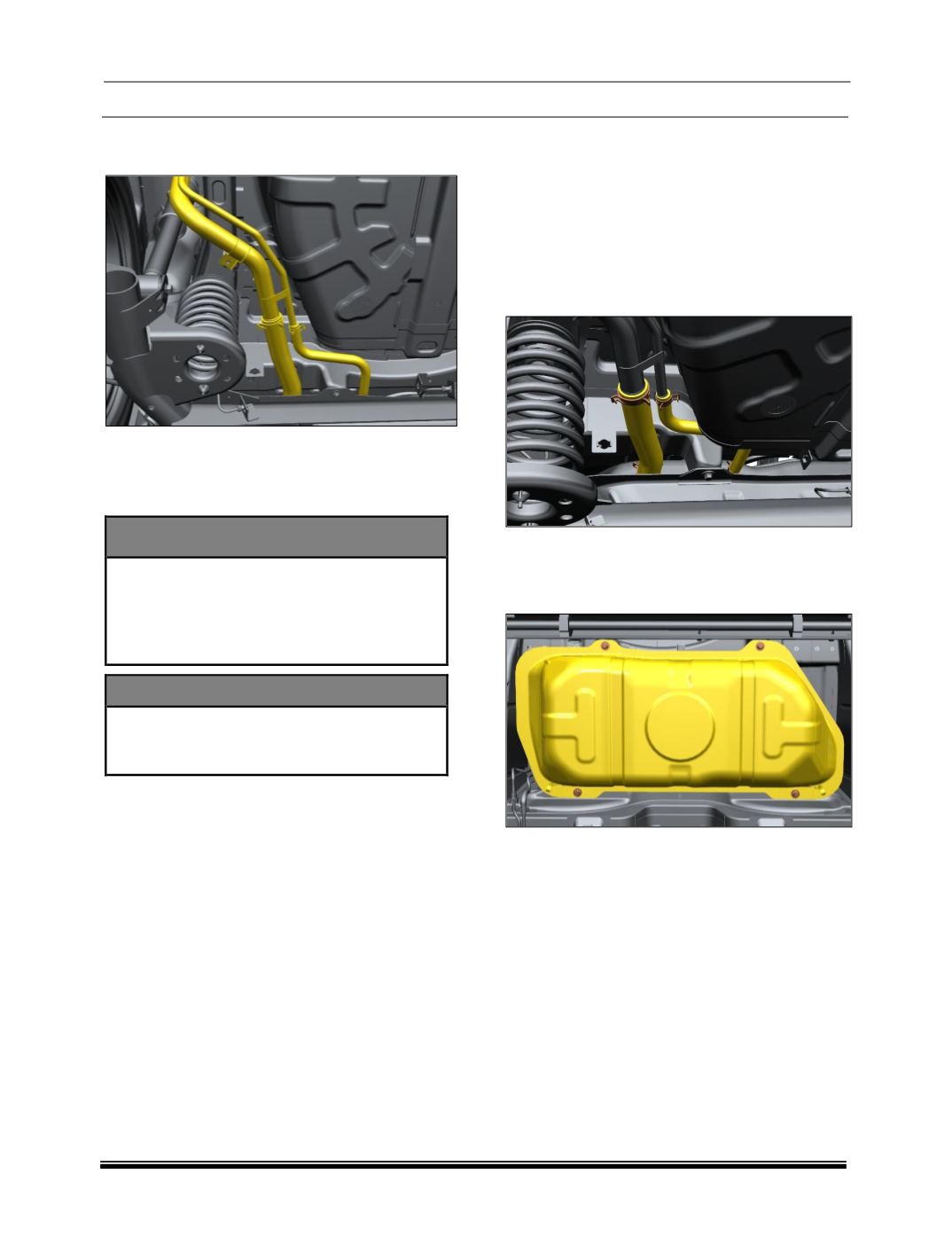

9. Take out fuel filler assembly along with
breather from body shell.
INSPECTION
Check if dust has blocked the 2 way cap, change
cap if found defective.
WARNING
A small amount of fuel may be released
after fuel lines are disconnected. To avoid
the chance of injury, cover the pipe to be
disconnected with cotton cloth. Do not use
cotton waste..
CAUTION
To avoid damage to vapour hoses while
disconnecting, slide back the clamps then
twist the lines as you pull.
FITMENT
Follow the reverse order of removal for fitment.
FUEL TANK
REMOVAL
1. Place the vehicle in a 2 poster lift.
2. Disconnect the electrical connections of the in-
tank pump and the fuel lines.
(For Removal
Refer Tank Unit removal process).
3. Disconnect the fuel filler hose and the breather
hose.
4. Support the fuel tank from below.
5. Remove the four mounting bolts from tank and
lower the tank carefully.
INSPECTION
Check all hoses and pipes connected to fuel
tank
for
leaks,
loose
connections,
deterioration or damage. Replace if
necessary.
Check fuel pump and fuel level gauge
gaskets for leaks, cracks etc. Replace if
necessary.
Visually inspect fuel tank for leaks and
damage. Replace if necessary.
Check TPV for dust accumulation. Clean if
required.
FITMENT
Follow the reverse order of removal for fitment.
