WARNING
Avoid parking of vehicle over inflammable
materials, such as dry leaves; grass etc. as
exhaust system is hot enough to initiate
fire.
CAUTION
Ensure exhaust system and catalytic
converter is not blocked and is free from
obstruction.
Blockages in the exhaust can create back
pressure, low top speed, poor pick up, black
smoke, carbon build up and low mileage.
Excessive carbon build-up / sticky valve.
Damaged vacuum lines.
The Catalytic converter should not be dropped
from a height. If dropped, it should not be
used.
CAUTION
The Catalytic converter should not be
dropped from a height. If dropped, it should
not be used.

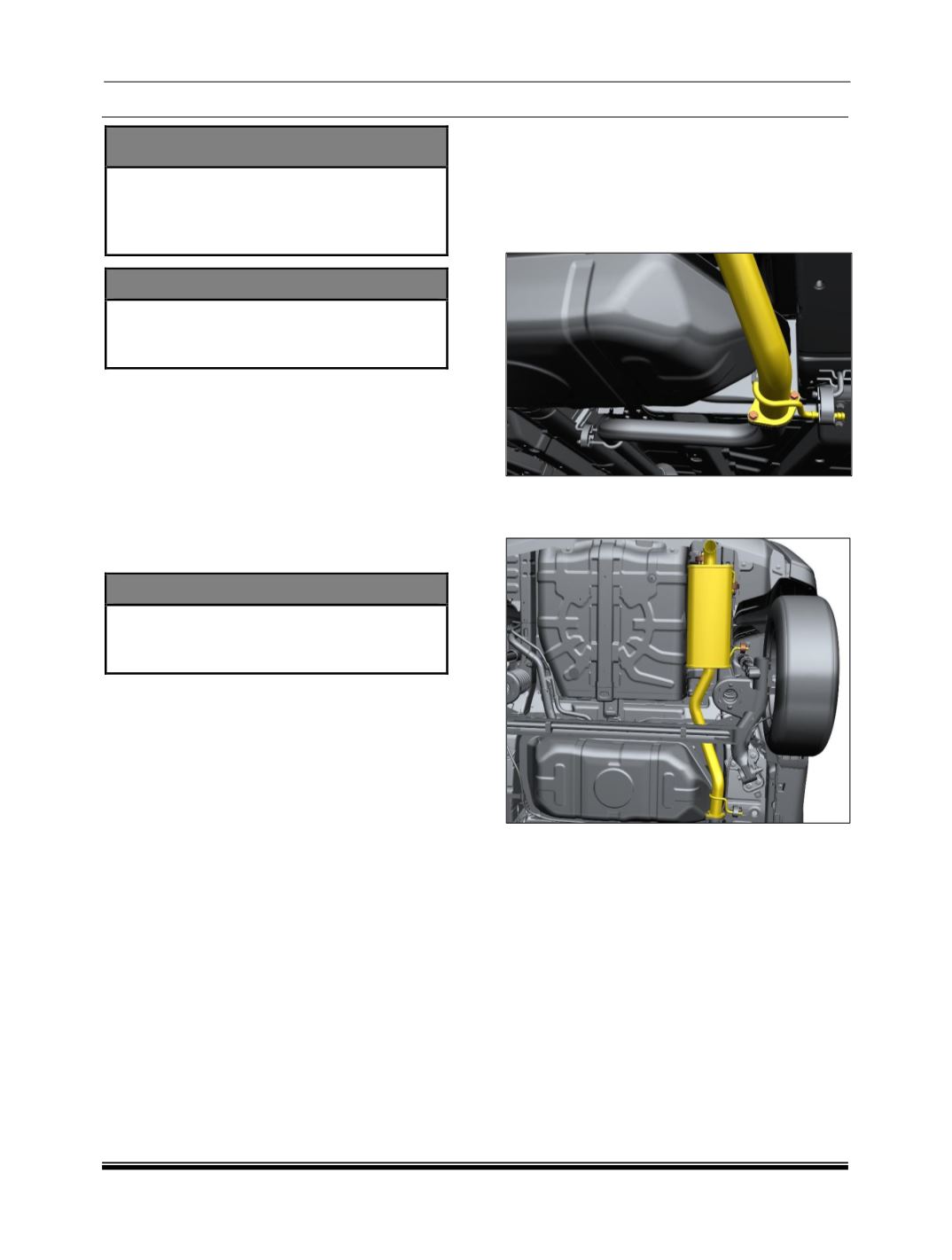

EXHUAST PIPE ASSY. REAR
REMOVAL
1. Remove the bolt on Exhaust Pipe and
Separate the exhaust pipe assembly along
with the main silencer from Intermediate pipe.
2. Remove the one rubber hanger from spare
wheel side and three from other side.
3. Take out the main silencer assembly.
FITMENT
For fitment follow the reverse procedure of
removal.
