FATC
46

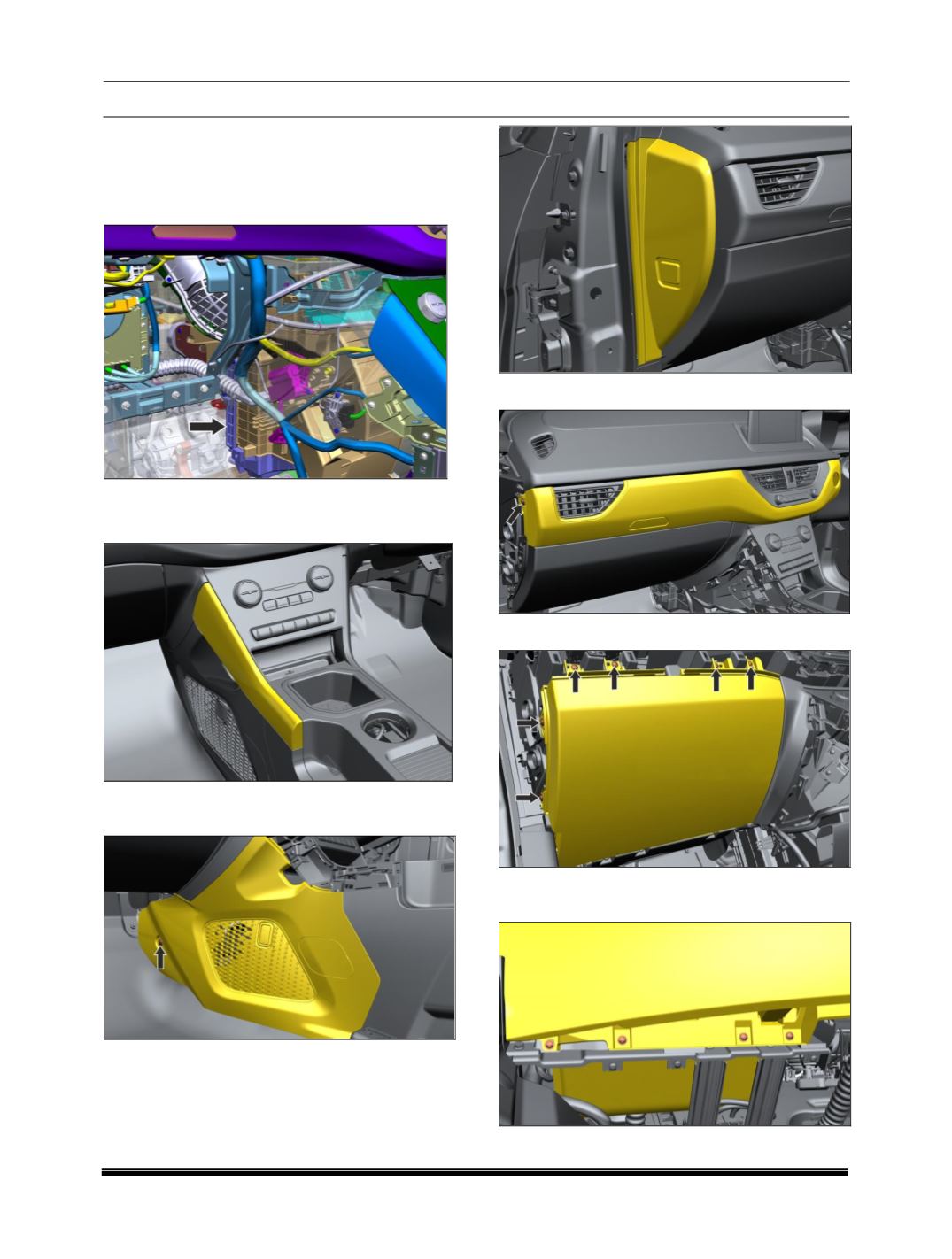

F. AIR FILTER
LOCATION
It is Located below the dashboard & behind console
panel LH side.
REMOVAL
1. Pull out Console finisher LH side.
2. Remove mounting tree clip of side console panel
LH side & take out the side console panel LH.
3. Pull out end cover LH side
4. Disconnect electrical connection.
5. Remove six mounting screws on glove box.
6. Remove four mounting screws of glove box from
bottom side.
