FATC
48

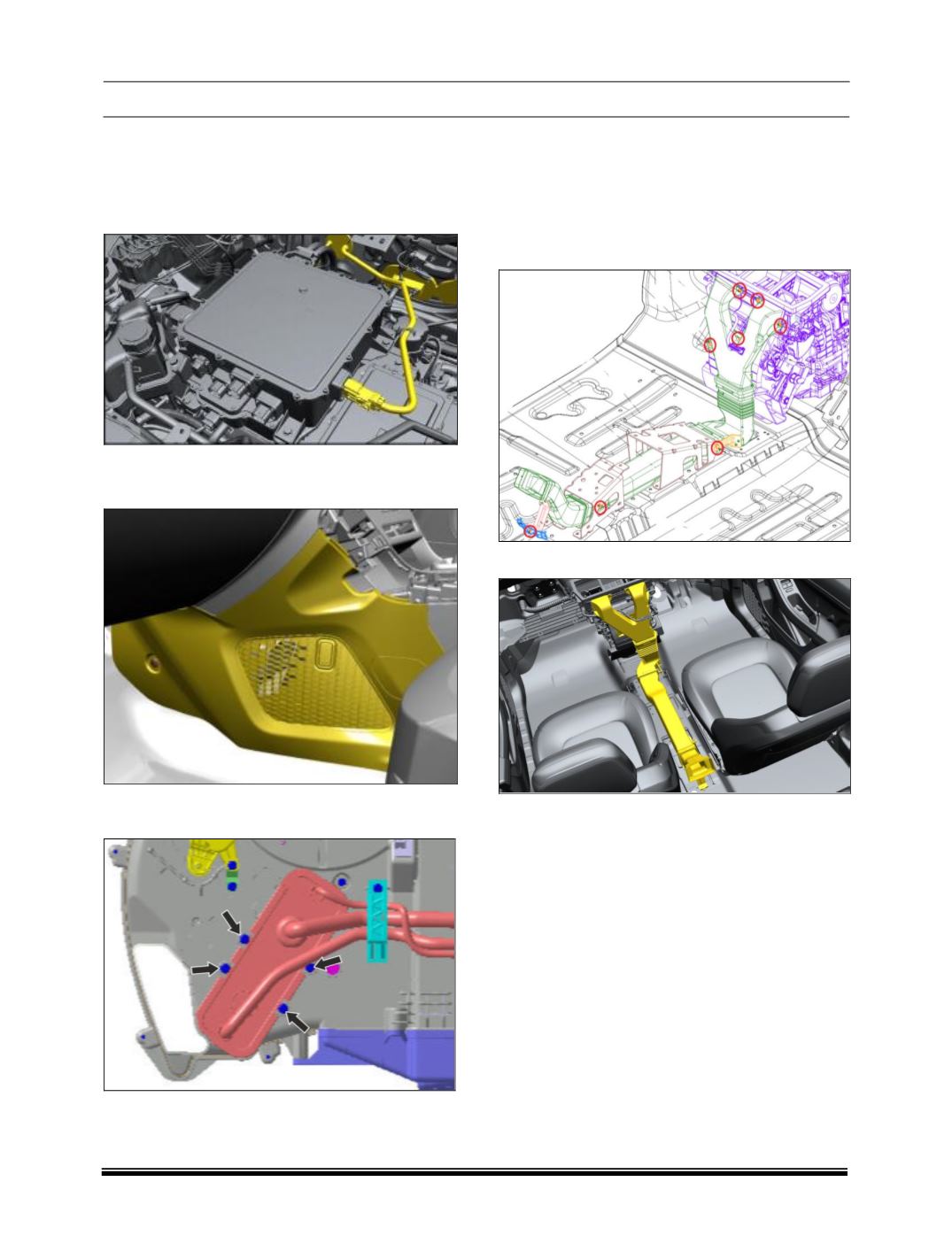

G. PTC HEATER
REMOVAL
1. Disconnect main supply.
2. Remove PTC connector for PDU.
3. Remove floor console panel near driver LH leg.
4. Remove tunnel link.
5. Remove four mounting screw of PTC heater and
takeout PTC heater.
H. REAR DUCT
REMOVAL
6. Remove Center console Assembly with IP As-
sembly. (Refer Body Draft for the removal
procedure)
7. Remove mountings on Rear Duct Assembly.
8. Lastly Take out Rear Duct complete assembly.
FITMENT
Follow the reverse procedure of removal.
