651 / 745
ELECTRICAL
9
1.3 GAUGES

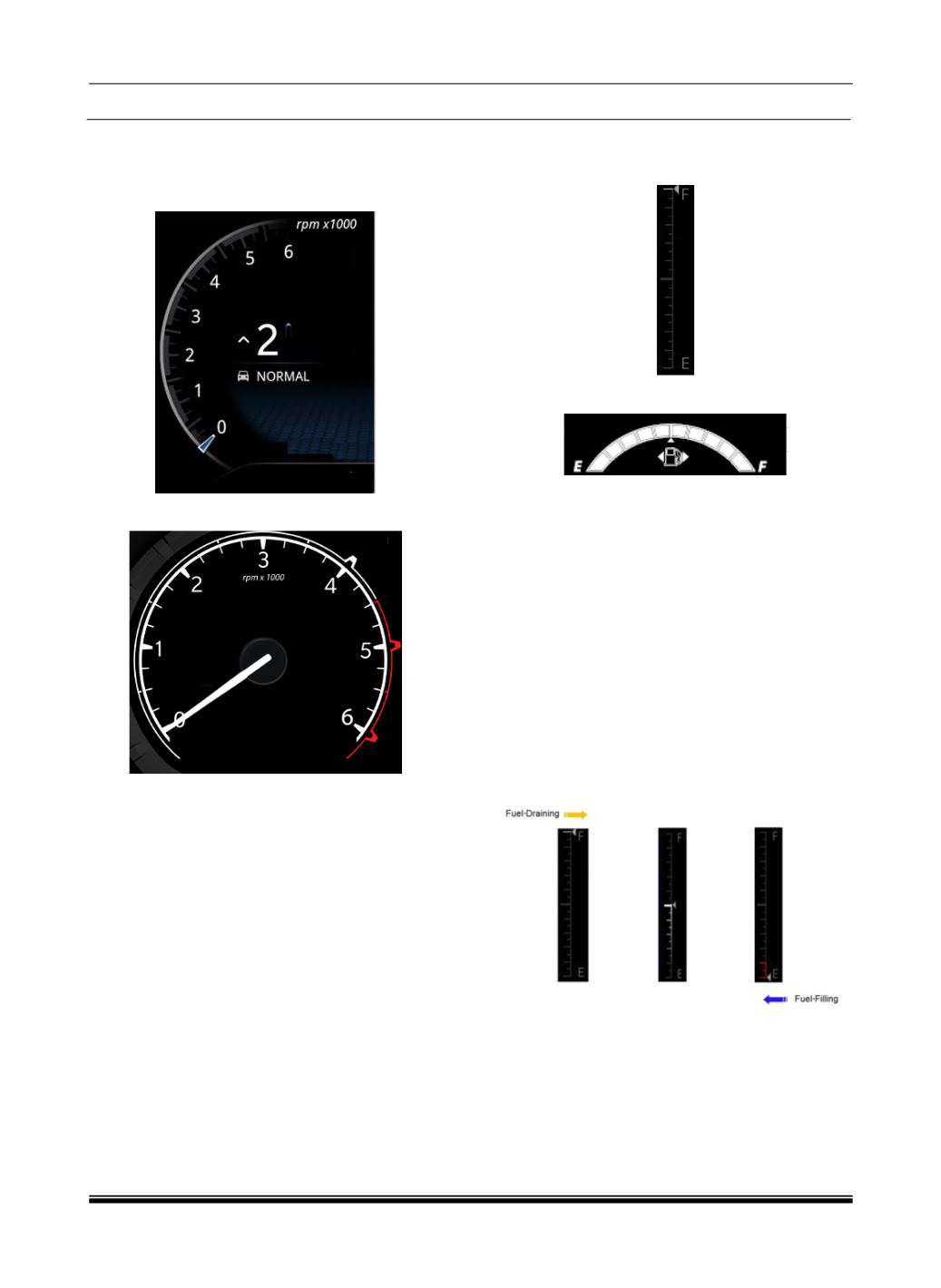

A. Tachometer Gauge with Dual Colour Pointer
Q5 7" Instrument Cluster
Q5 4" Instrument Cluster
• Tachometer indicates the engine speed in
revolutions per minute.
WARNING:
• Whenever engine is accelerated beyond safe
rpm, tachometer pointer turns RED. In such case,
reduce the engine RPM immediately.
• Never drive the vehicle with engine in high RPM.
This may cause serve engine damage.
NOTE:
• At every key in and Ignition ON, tachometer
needle moves to MAX and returns to ‘0’ position.
• This is a welcome strategy and a self-check
feature.
• In Engine running condition if the Tachometer is
not showing the RPM, take your vehicle to TATA
authorized service center.
B. Fuel Gauge
Q5 7" Instrument Cluster
Q5 4" Instrument Cluster
• When the ignition switch is in “ON” position, fuel
gauge gives an approximate indication of the
amount of fuel in the fuel tank. “F” stands for full and
“E” stands for Empty.
• When fuel in the tank is near to empty position,
low fuel warning telltale turns Amber. Refill the
tank as soon as possible.
• At every key in and Ignition ON, Fuel Gauge
Bars move to F and come back to E position. This
is welcome strategy. This is applicable for Q5 4”
inch cluster.
For Q5 7" Instrument Cluster
• Fuel gauge graphics color changes depends on
the fuel availability on fuel tank as per below in the
draining direction.
NOTE
• On inclines, curves, during braking and sudden
acceleration due to the movement of fuel in the
tank, the fuel level display may fluctuate or the low
fuel level warning lamp may turns ON/OFF earlier
or delayed than usual.
