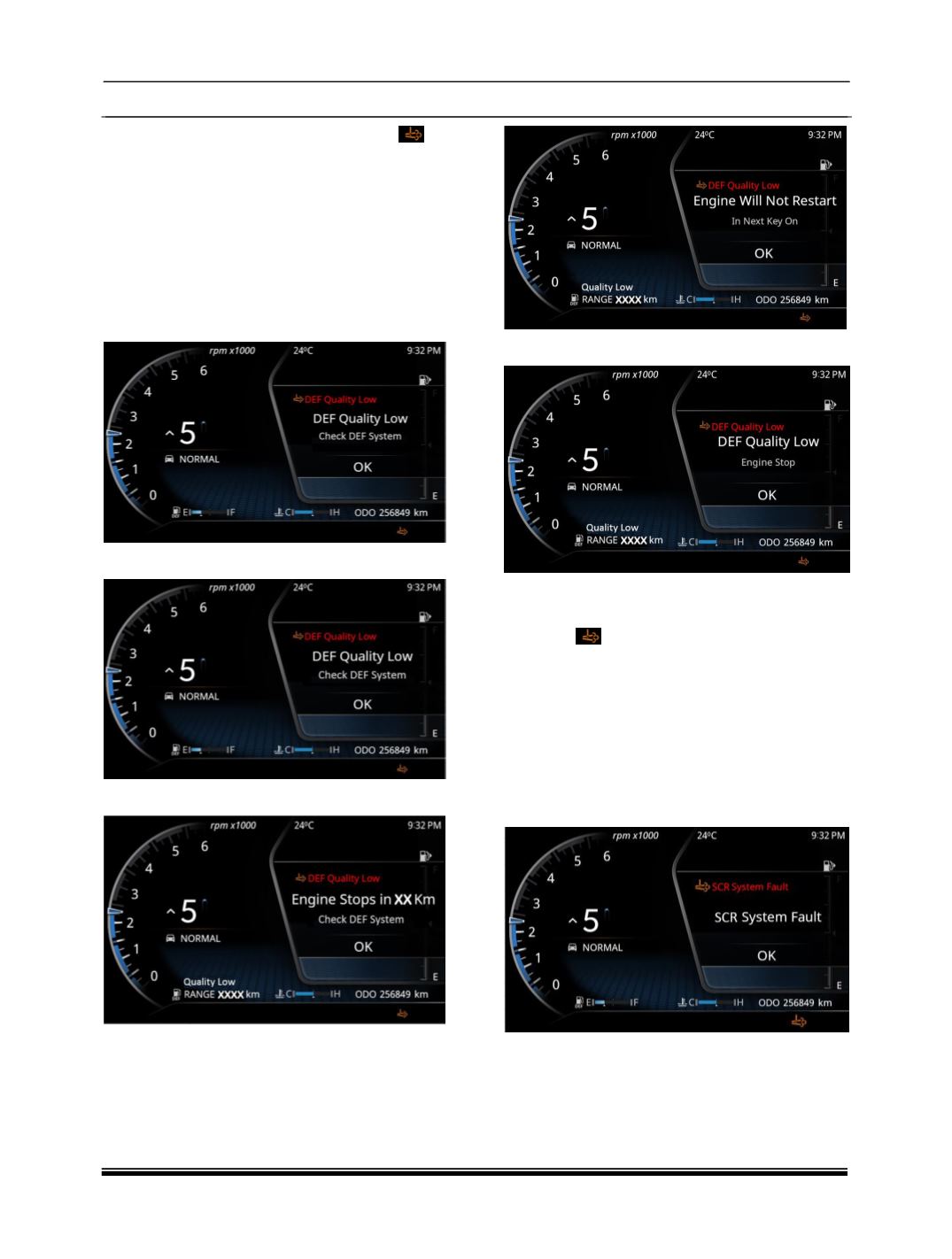

When DEF Quality low, Text alert & Telltale
will
triggered as per below images shown. Subsequent
triggers will come from level 1 to level 5 when driver
continues to drive Vehicle without correcting DEF
Quality. From Level 5 continuous chime activated
and DEF gauge will be replaced by the Text Alert.
At Level 6 Text alert will come on DIC screen and
remain until DEF quality is rectified. At Level 7 Text
alert will be constant on DIC screen and vehicle will
not start.
DEF Low Level 1
DEF Low Level 2, 3, 4
DEF Low Level 5
DEF Low Level 6
DEF Low Level 7
SCR Fault Level is reduced as per following
When SCR Fault present in SCR System, Text alert
& Telltale
will triggered as per below images.
Subsequent triggers will come from level 1 to level 5
when driver continues to drive Vehicle without
correcting SCR Fault. From Level 5 continuous
chime activated and DEF gauge will be replaced by
the Text Alert. At Level 6 Text alert will come on
DIC screen and remain until SCR Fault is rectified.
At Level 7 Text alert will be constant on DIC screen
and vehicle will not start.
SCR Fault Level 1
SCR Fault Level 2, 3, 4
