BRAKES
27
14.REGULAR MAINTENANCE

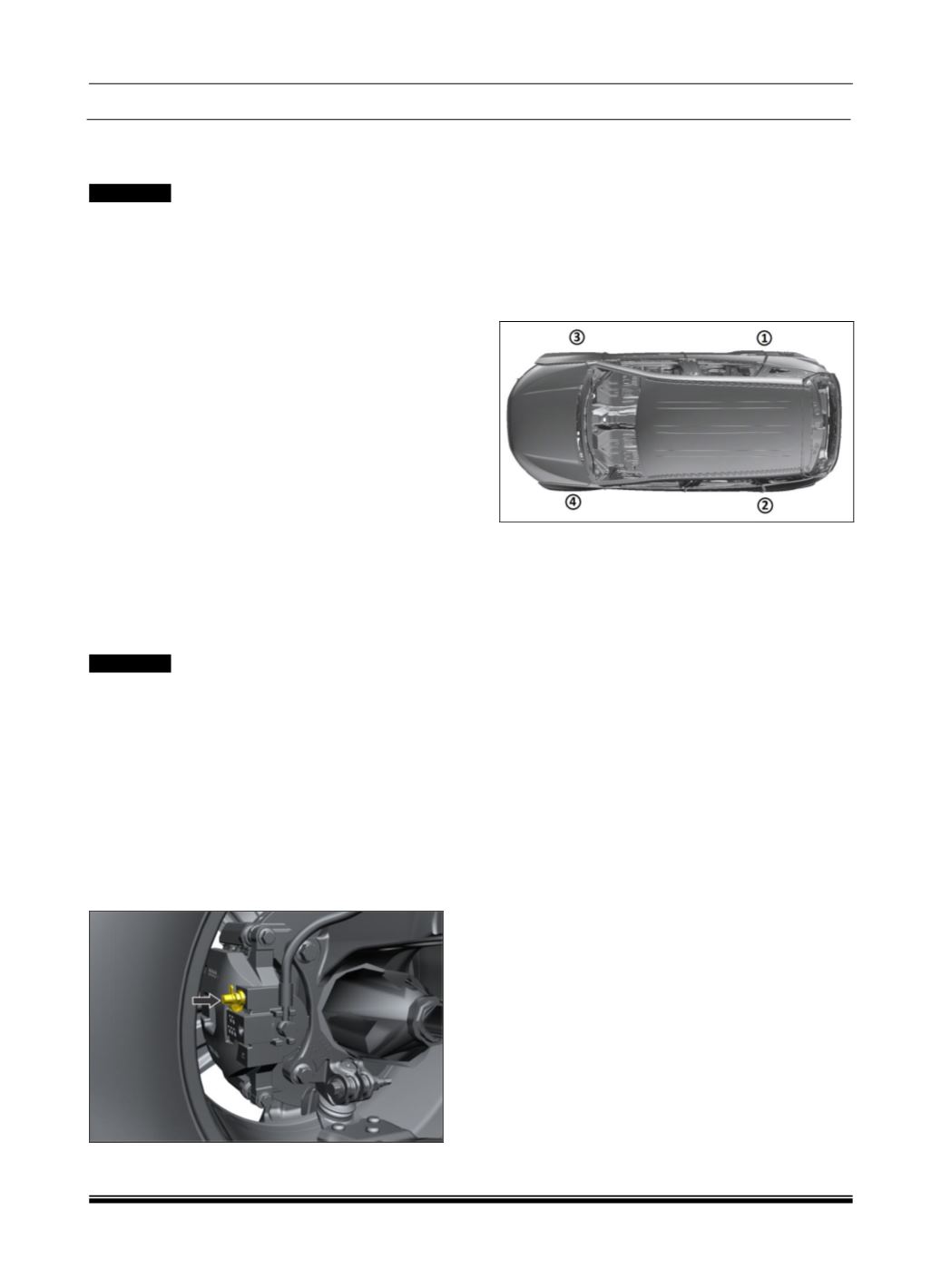

A. BRAKE BLEEDING PROCEDURE
! CAUTION
Do not spill brake fluid on the vehicle, it may
damage the paint, if the brake fluid does
contact the paint, wash it off immediately with
water.
Make sure no dirt or other foreign matter is
allowed to contaminate the brake fluid.
NOTE
Always use the brake fluid recommended in
the specification list.
Do not reuse the drained fluid.
Entire bleeding operation should be done with
ENGINE ON (running).
Always use brake fluid from the sealed bottle.
The reservoir on the master cylinder must be
at the Max (upper) level mark at the start of
bleeding procedure and check after bleeding
each brake and same have to be topped up as
required.
1. Open the bonnet.
2. Open the reservoir cap and pour brake fluid till
the lower edge of the filler neck.
! CAUTION
At all times during the bleeding process, it has to
be ensured that the fluid level in the reservoir
does not drop below minimum.
3. Connect the bleed tube to the Rear right Drum
Brake bleed screw and place the other end
submerged in a transparent container
containing sufficient brake fluid.
4. Depress the brake foot pedal for 2-3 times and
hold it down.
5. Open the bleed screw
(1).
The fluid will flow
into the transparent container.
6. Tighten the bleed screw to torque 0.7~1 Kgm
and release the pedal.
7. After the pedal returns, allow an interval of 3 to
4 seconds before making the next stroke.
Steps 4 to 6 should be repeated until there are
no more air bubbles at the end of the bleed
tube.
8. Now follow the same procedure at the other
wheels as per the sequence given below.
9. After the bleeding sequence is completed
remove the bleed tube and place the dust cap
on the bleed screw.
10.Ensure that the bleed screw is tightened to the
recommended torque.
11.Ensure “MAX” level after complete bleeding.
12.Clean the filter in bottle if necessary.
13.Place filter and cap to the reservoir.
NOTE
If the bleeding of any caliper continues without
success for a considerable time, then tighten
the bleed screw after each downward stroke of
the pedal, allowing the pedal to return back.
After the bleeding is done check for any leaks
in the bleed screw by applying the brake pedal
hard.
