HARRIER BS VI - SERVICE MANUAL

DRIVESHAFT (AT)

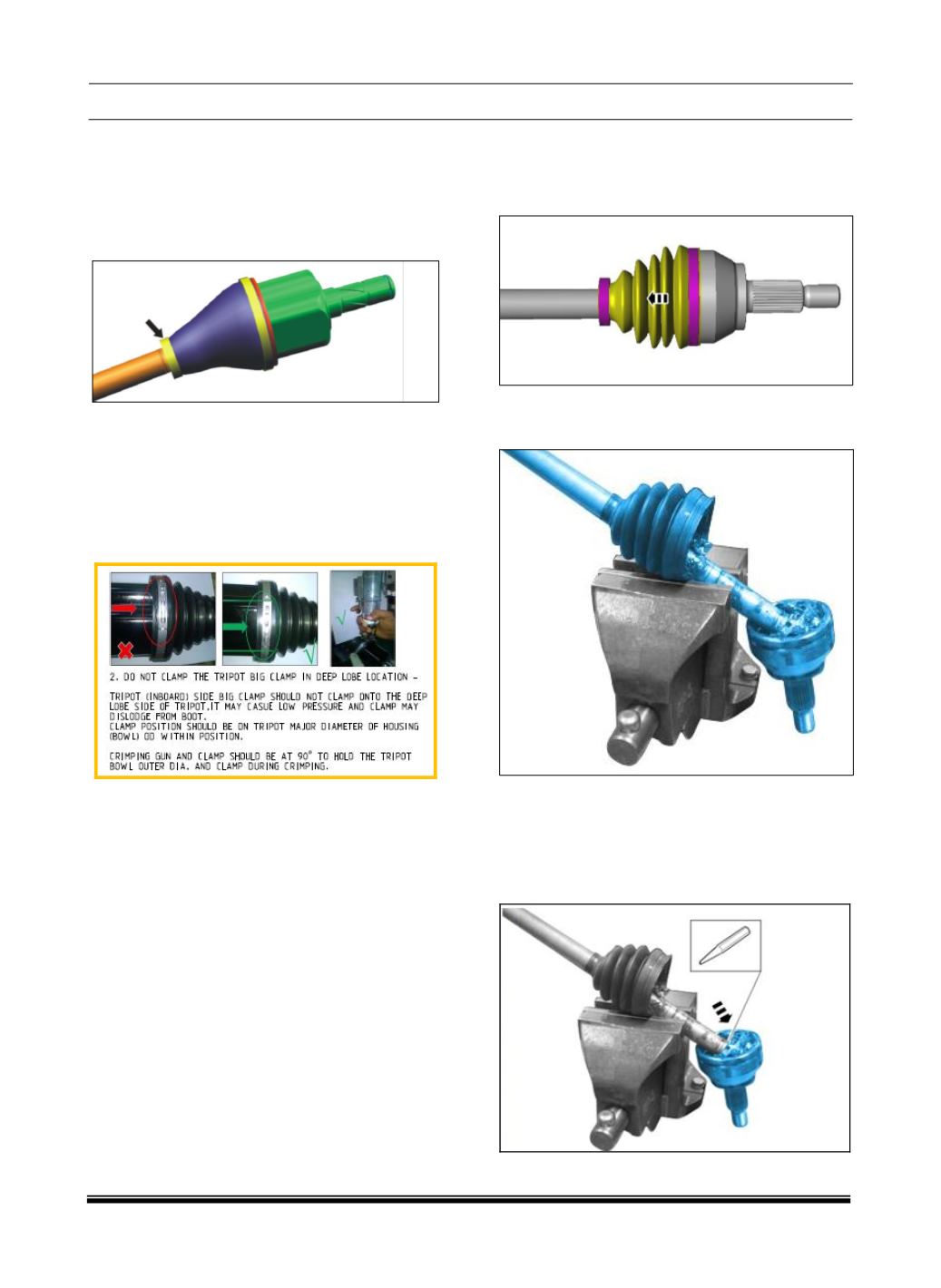

4.Slide the tripot seal smaller end to the

corresponding groove on the axle shaft and

crimp the small seal retaining clamp (new one)

using pincer crimping tool) and maintain max

2.6 mm. ear gap as shown below. (Spider

Assembly at approximately middle of the tripot

bowl).

5.Slide the new large seal retaining clamp over

the housing in the free condition of the boot and

housing Insert the swage tool part no: 2779

5890 2001 over the clamp.

avoid any grease leakage issue make sure

Clamping of bigger clamp should be in line and

on housing portion shown in above image (with

Green arrow)

C. CV JOINT OUTER DISASSEMBLY:

1.Remove the large seal retaining clamp from the

CV joint with a side cutter or a screw-driver with

rounded tip and discard.

2.Clean the shaft thoroughly using cleaning

solvent and hold the shaft at the middle of the

axle shaft in the vice.

NOTE

Use suitable protective covers to protect the half

shaft.

3.Using a suitable drift against the inner part of

the CV joint, remove the CV joint from the half

shaft.
