6F33 TRANSAXLE
43

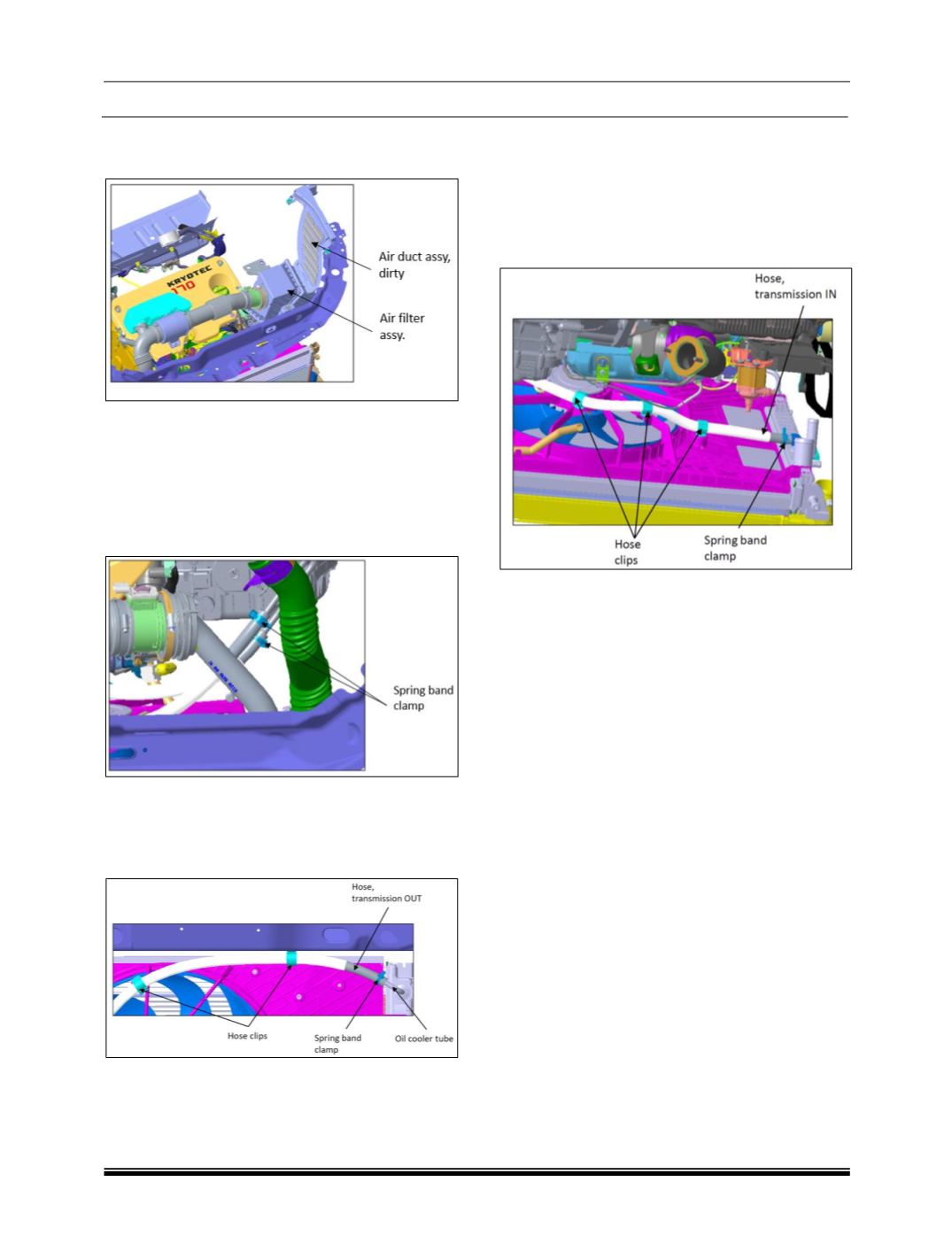

17. OIL COOLER HOSES REMOVAL
1. Remove Air filter assy. and Air duct assy.
2. Remove the spring band clamp (which is not
reusable) and oil cooler hoses carefully from
transmission outlet and inlet feeder tubes
Be careful: Some amount of the automatic
transmission fluid may flow out from the holes.
Place a container under transmission cooler
holes.
3. Remove the hoses from hose clips.
4. Remove the spring band clamp and hose,
transmission OUT from oil cooler tube carefully from
top side of vehicle.
5. Remove the spring band clamp and hose,
transmission IN from oil cooler tube carefully from
bottom side of vehicle.
Be careful: Some amount of the automatic
transmission fluid may flow out from the holes.
Place a container under transmission cooler
holes.
