6F33 TRANSAXLE
5

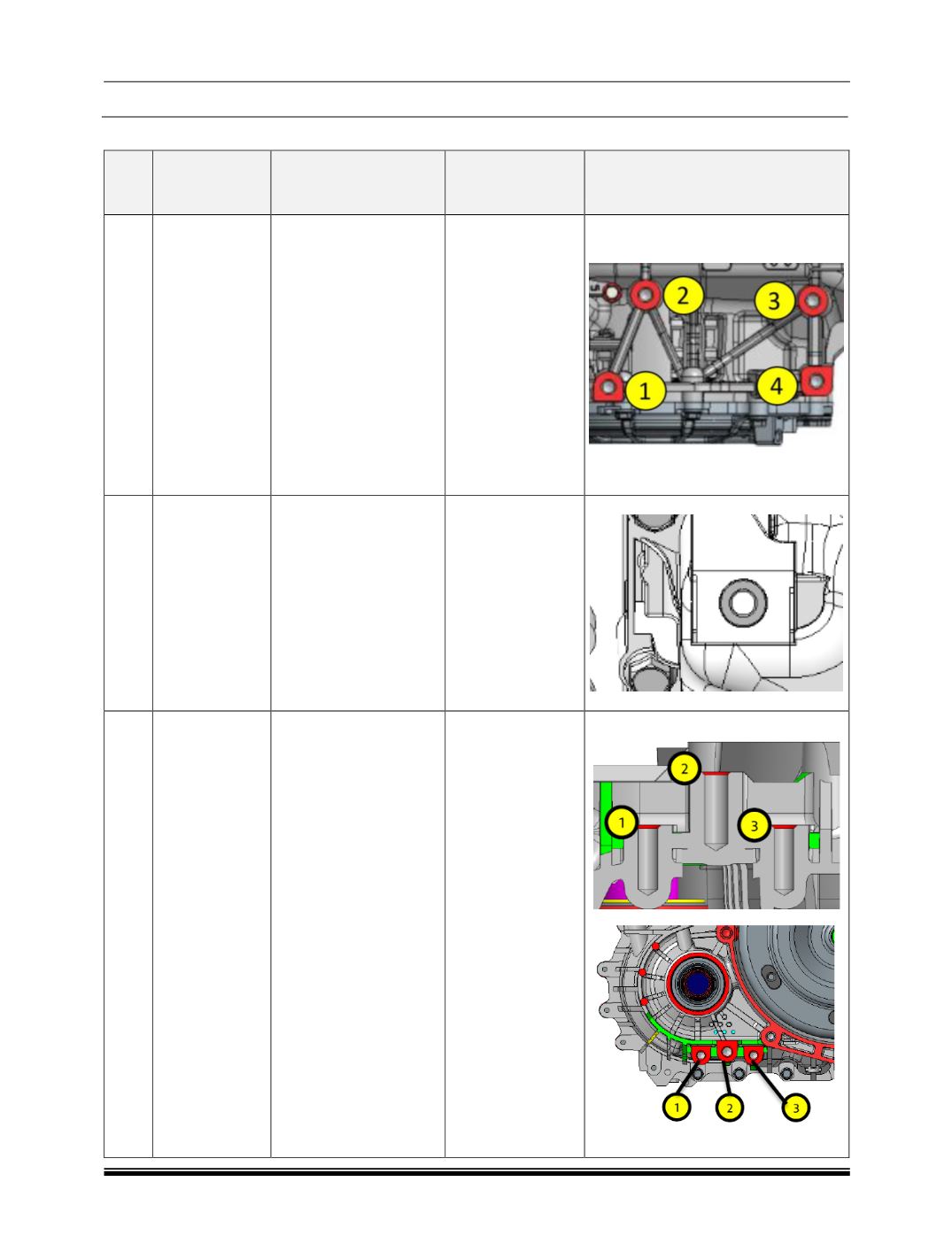

2. TIGHTENING TORQUE
SR.
NO
DESCRIPTION
FASTENER TYPE
TIGHTENING
TORQUE (Kgfm)
LOCATION
1
T/M support
Mounting
Bracket boss
Callout 1,2 & 3
3-M12X1.25
(fine pitch)
Tap depth 27
Drill depth 32
Callout 4
M12X1.25
(fine pitch)
Tap depth 27
Drill depth 30
6.2 – 8.2
2
Earthing cable
bracket boss
Tap depth 12
M6x1.0
1 – 1.2
3
Mounting
Bracket Boss
Callout 1 & 3
Tap depth 30
( M12 X 1.75 )
Clamping with C mount
bracket
Callout 2
Tap depth 30
( M14 X 1.5 )
Callout 1 & 3
9.2
Callout 2
10.7
