6F33 TRANSAXLE
4

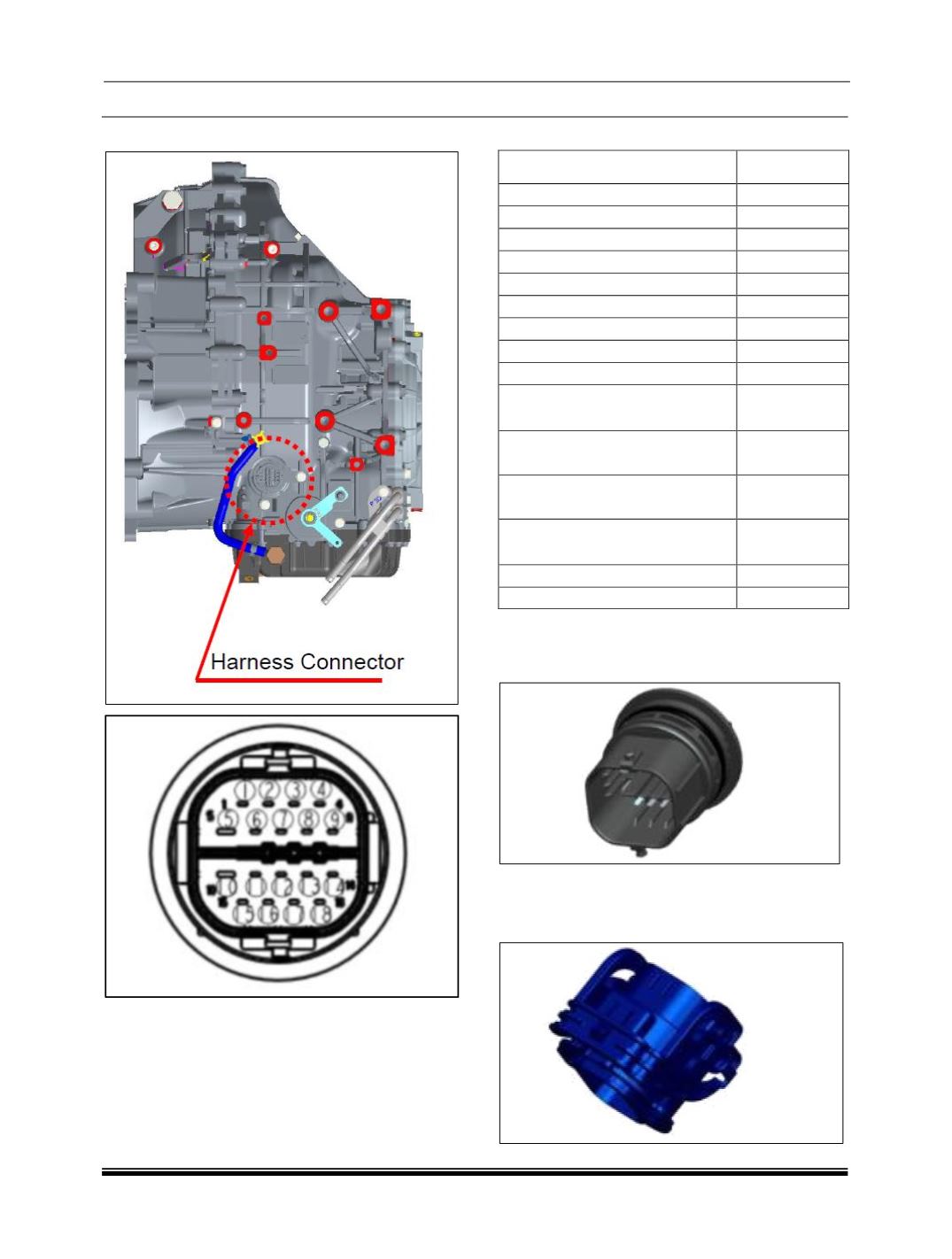

F. A/T HARNESS CONNECTOR
18 PIN MALE CONNECTOR
(MALE CONNECTOR)
PIN ASSIGNMENTS
SIGNAL
PIN NO.
SOL POWER1
5
SOL POWER2
10
VFS-T/CON
2
VFS-35R
6
VFS-26
11
VFS-UD
16
VFS-OD
7
ON/OFF SOL(SS-A)
18
VFS-LINE
17
VCC(9V)-INPUTSPEED
SENSOR
14
SIGNAL-INPUT SPEED
SENSOR
8
VCC(9V)-OUTPUT SPEED
SENSOR
3
SIGNAL-OUTPUTSPEED
SENSOR
4
OIL TEMP. SENSOR(+)
13
OIL TEMP. SENSOR(-)
9
A/T Side Connector (Male Connector):
Maker: FCI
Part No. : 903080-00
Counter Connector (Female Connector):
Maker: FCI
Part No. : 903079-00
