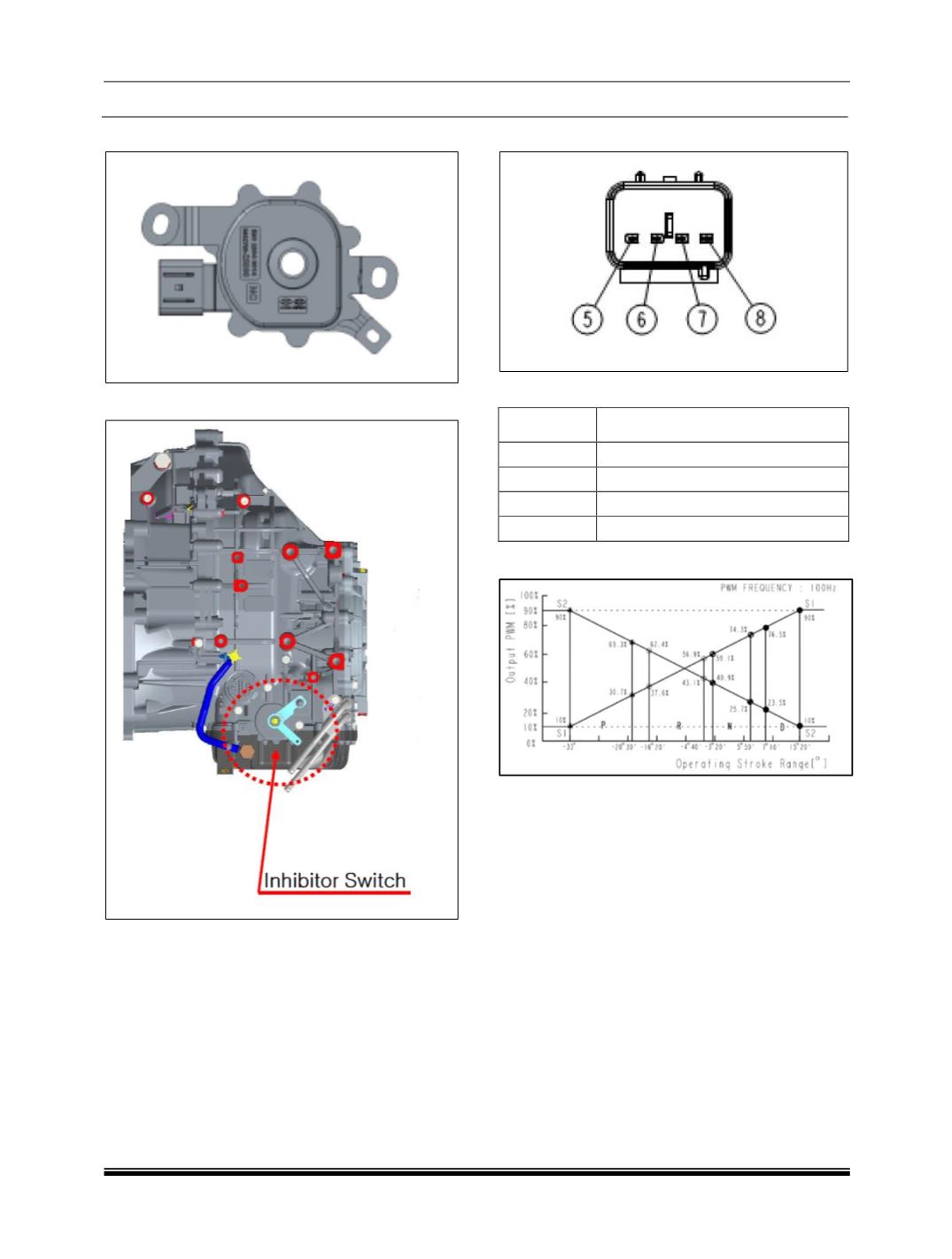

6F33 TRANSAXLE
3
E. INHIBITOR-SWITCH
LOCATION
CONNECTOR ARRANGEMENT
CONNECTING DIAGRAM
Pin No.
Pin Description
5
5V Power
6
GND
7
S1 Signal
8
S2 Signal
PWM OUTPUT SPECIFICATION
Counter Connector (Female Connector)
Maker: KET
Part No.:MG645880 (CODE B)
