KRYOTEC ENGINE
131

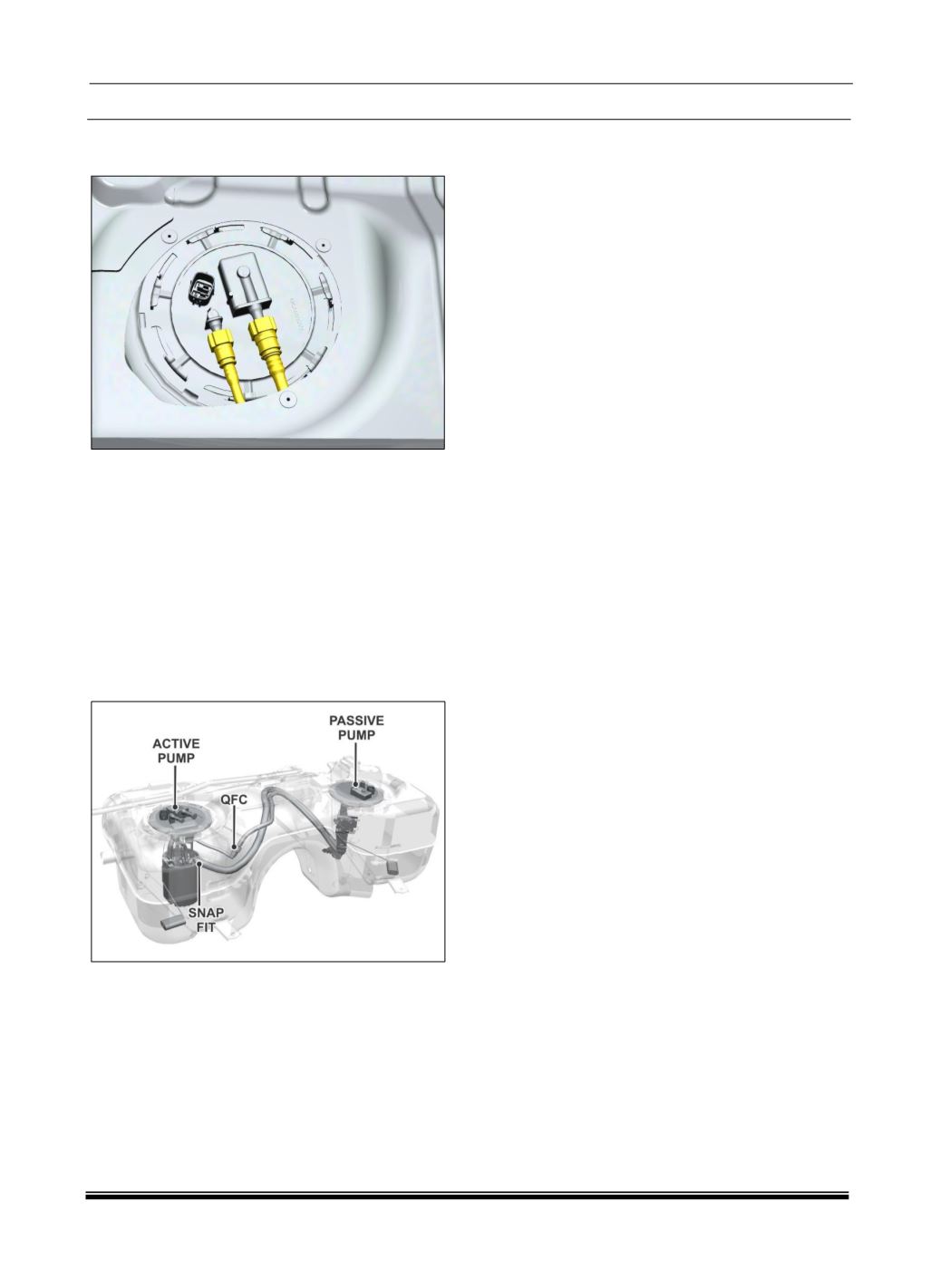

7. Disconnect the fuel delivery line and the return
line connecting fuel pump module.
8. Using Special tool (5412 5890 4701) unscrew
the cam lock plate.
9. Hold the fuel delivery module, lift it in vertical
direction so as to access the Quick connector
and snap fit.
10.Disconnect the line which carries the fuel from
passive side to active side by means of
dislodging the snap fit provided at pump
retainer.
11.Disconnect the QFC joint which carries fuel
from active side to passive side.
12.Remove the in-tank pump from the tank
carefully.
NOTE
Make sure breather line Quick connector is not
getting stuck during fuel tank removal.
Seals and gasket not to be reused.
FITMENT
For fitment follow removal procedure in reverse.
