KRYOTEC ENGINE
130
7.

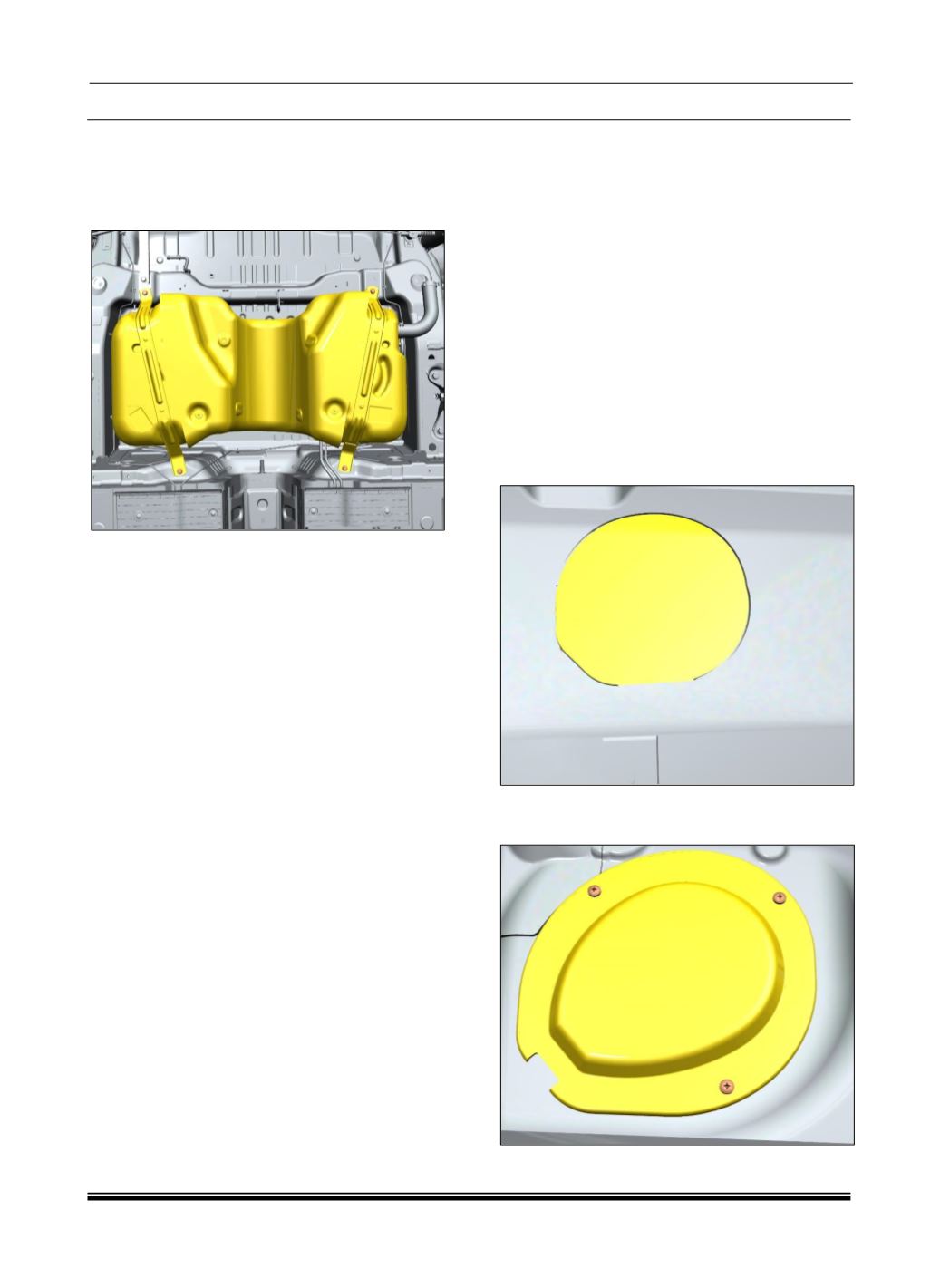

Remove the four mounting bolts from fuel tank
mounting straps and lower fuel tank gradually
until electrical connector of Fuel Delivery
Module and passive side suction unit can be
reached to disconnect.
8. Disconnect the electrical connections of the in-
tank pump and the fuel lines.
(For removal refer
‘Tank Unit’ removal process).
9. Disconnect electrical connections of the suction
unit.
10.Remove fuel tank from vehicle
NOTE
Make sure breather line quick connector is not
getting stuck up during its removal along with tank.
Seals and gasket not to be reused.
INSPECTION
Check all hoses and pipes connected to fuel
pump for leaks, loose connections,
deterioration or damage. Replace if necessary.
Check fuel pump and passive side suction unit
module gaskets for leaks, cracks etc. Replace
if necessary.
Visually inspect fuel tank for leaks and
damage. Replace if necessary.
FITMENT
For fitment follow removal procedure in reverse.
2) TANK UNIT
REMOVAL
CAUTION
Unless replacement is necessary, Tank unit, fuel
level sensor should not be removed from the tank
since the rubber parts i.e. gasket, seals etc. may
harden when exposed to air and light.
Never apply an excessive force to the tank unit
nipple or lead wire. This may result in bent or poor
contact.
1. Relieve fuel pressure in fuel feed line.
2. Disconnect the negative battery cable.
3. Fold the 2
nd
row Seat and somersault it to
access the in tank pump cut out.
4. Lift the carpet with foam at the cutout.
5. Remove mounting screw and open fuel
inspection cover.
6. Disconnect the electrical connection of the fuel
pump module.
