ELECTRICAL
40

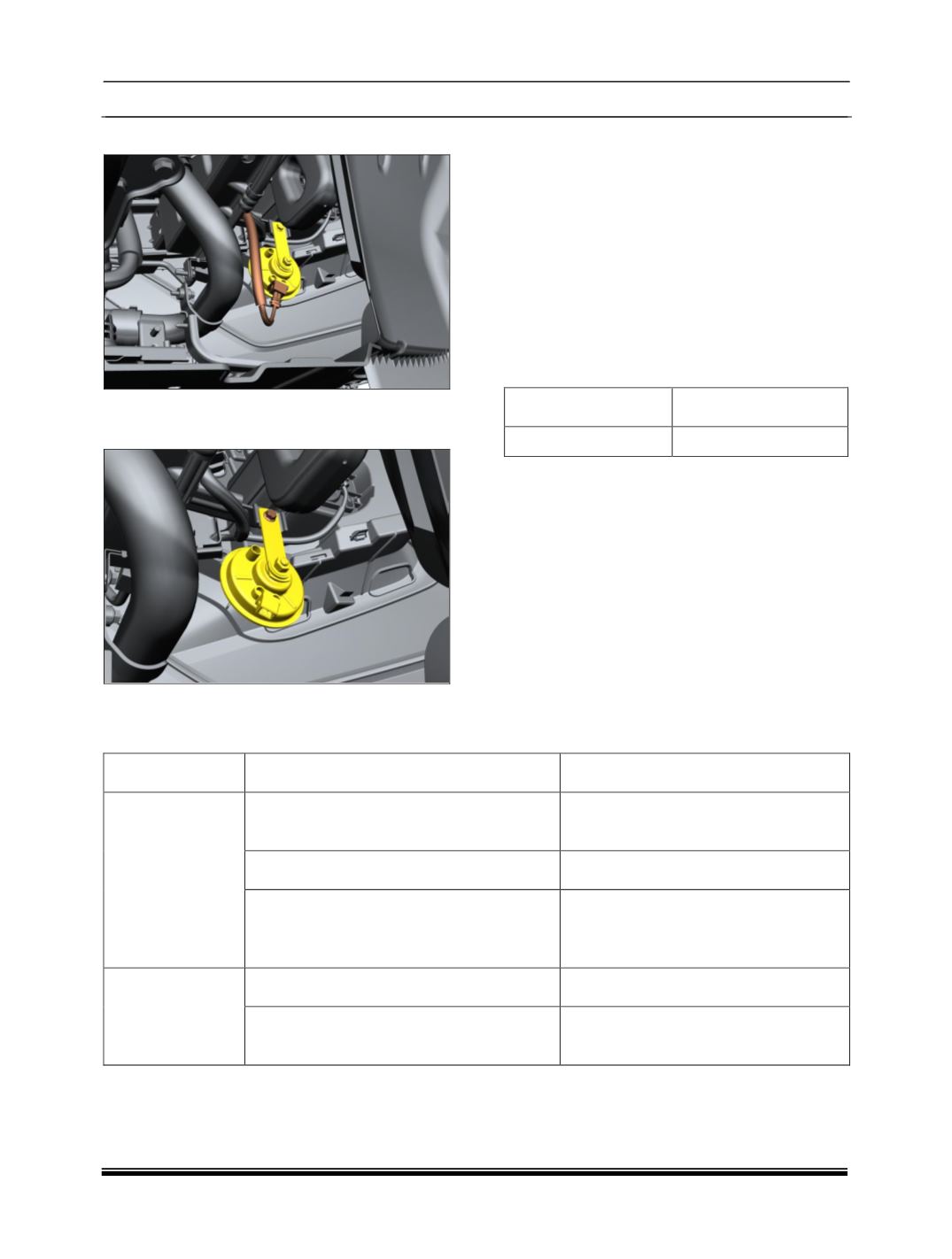

6. Disconnect connector from side horn.
7. Remove the mounting bolt and take out the
side-mounted horn.
INSPECTION OF HORN
Connect the positive terminal of the horn to
battery (+) and negative terminal to battery (-). If a
clean and sharp sound is heard, the horn is OK. If
no sound is heard, check continuity of the horn
coil using a multi-meter. If the coil is OK, check
the settings of the setting screw. Adjust the setting
screw till a clean and sharp sound is given out.
REFITMENT:
For refitment follow the procedure in reverse.
HORN –TORQUE VALUE TABLE
APPLICATION
TORQUE
Horn MTG Bkt
0.95 to 1.0 Kgfm
CONNECTIONS DETAILS
For circuit details refer circuit schematic section
CONDITION
POSSIBLE CAUSES
CORRECTION/REFERENCE ITEM
Horn not working 1. Horn fuse (15A) in Engine fuse box
blown
Replace the fuse
2. Horn relay on Fuse box loose
Fix the relay properly
3. Horn switch terminal / horn switch
contact in steering pad improper
Replace control switch plunger
topping/Adjust horn switch contact in
steering pad properly
Horn
sound
distorted
1. Horn terminals loose
Connect the terminals properly
2. Horn setting screw disturbed
Adjust the setting screw till a clean and
sharp sound is obtained
