ELECTRICAL
35

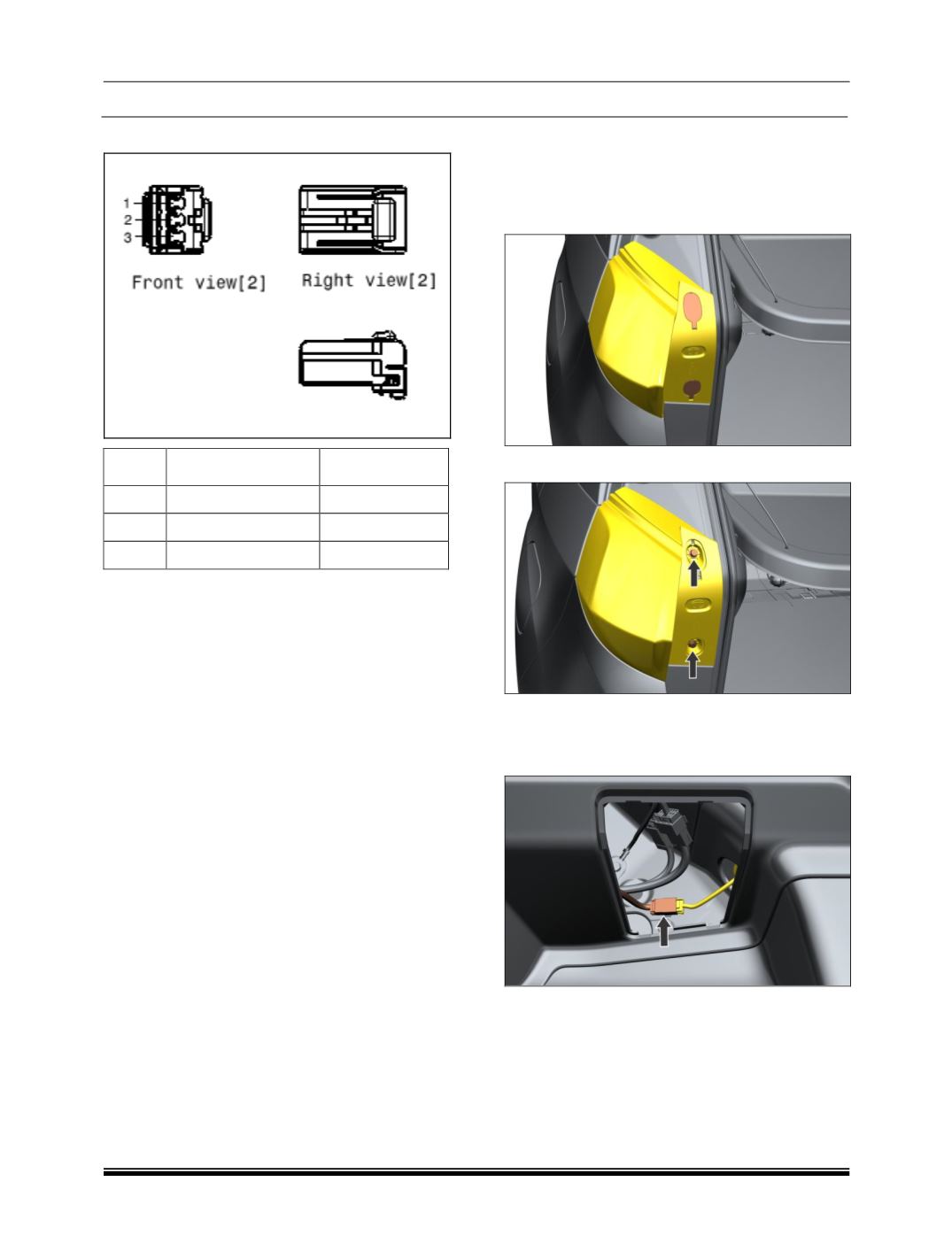

TRUNK TAIL LAMP
PIN
DESCRIPTION
COLOUR
1
Tail/Position
Green
2
Reverse
Yellow
3
Ground
Grey
REMOVAL AND REFITMENT OF TAIL LAMP
TAIL LAMP REMOVAL (BODY SIDE)
1. Open tail gate
2. Open caps on tail lamp mounting bolts.
3. Remove two mounting screws on tail lamp.
4. Remove Access cover to make electrical
connection accessible.
5. Disconnect the electrical connections.
6. Take out Body mounted Tail Lamp.
REFITMENT:
Follow the reverse Procedure of Removal.
