ELECTRICAL
46
11 FUEL GAUGE AND FUEL LEVEL METER
REMOVAL AND REFITMENT OF FUEL LEVEL
SENSOR
(Refer fuel system section)
For both Petrol and Diesel vehicle

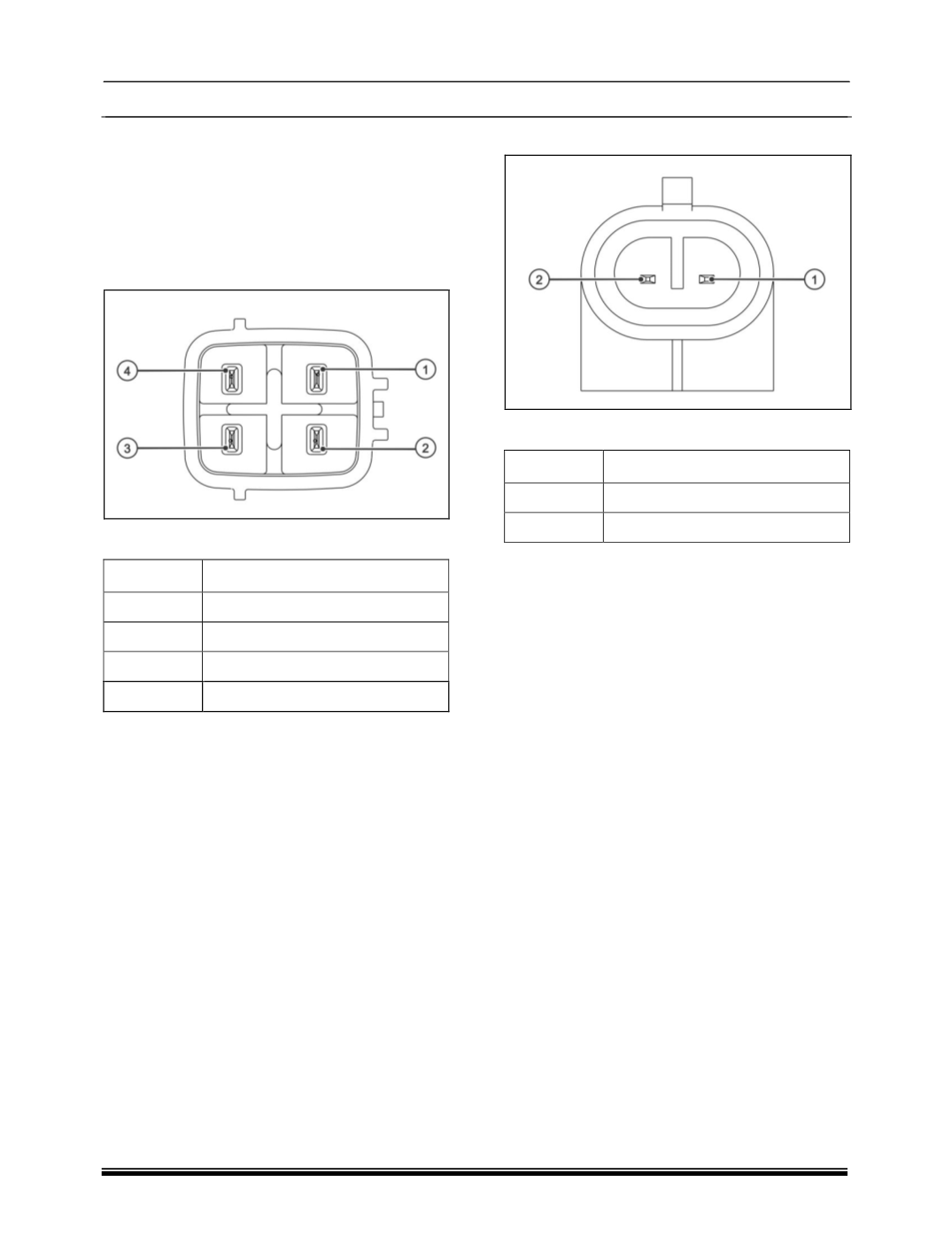

CONNECTOR DETAILS
a) Petrol Fuel Level Indicator
PINOUT DETAILS
PIN
DETAILS
1
Gauge (-)
2
Gauge (+)
3
Fuel Pump (+)
4
Fuel Pump (-)
b) Diesel Fuel Level Indicator
PINOUT DETAILS
PIN
DETAILS
1
-ve
2
+ve
