ELECTRICAL
39

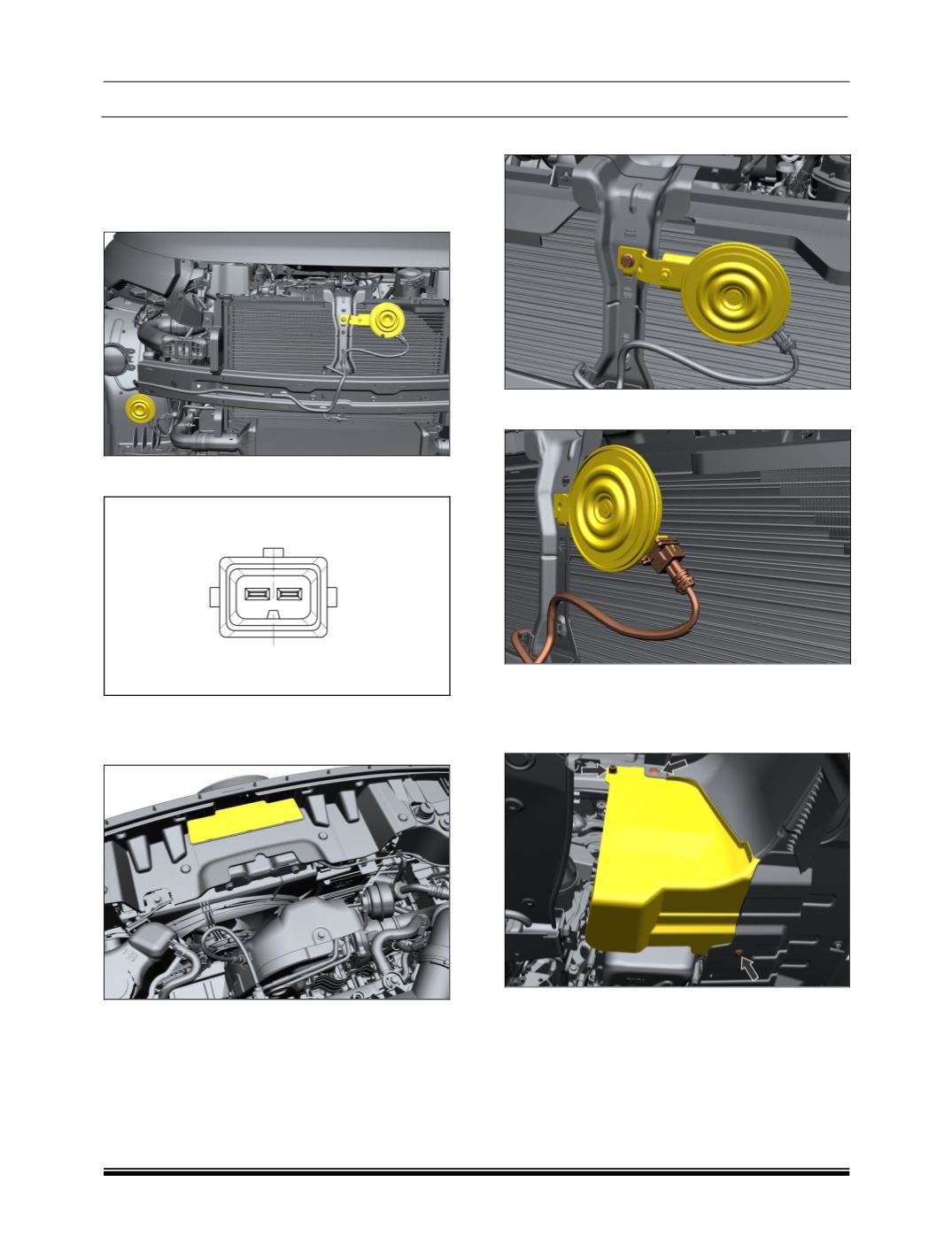

8 HORN
LOCATION
Horn is located in front of the car, behind the front
bumper, on frame-radiator support and chassis
PINOUT DETAILS
REMOVAL OF HORN
1. Pull out front bumper cover. (for center Horn)
2. Remove horn-mounting screw.
3. Disconnect the connector from center horn.
4. Take out Center mounted Horn.
5. Remove Mud Liner Assembly.(For RH side
Horn)
